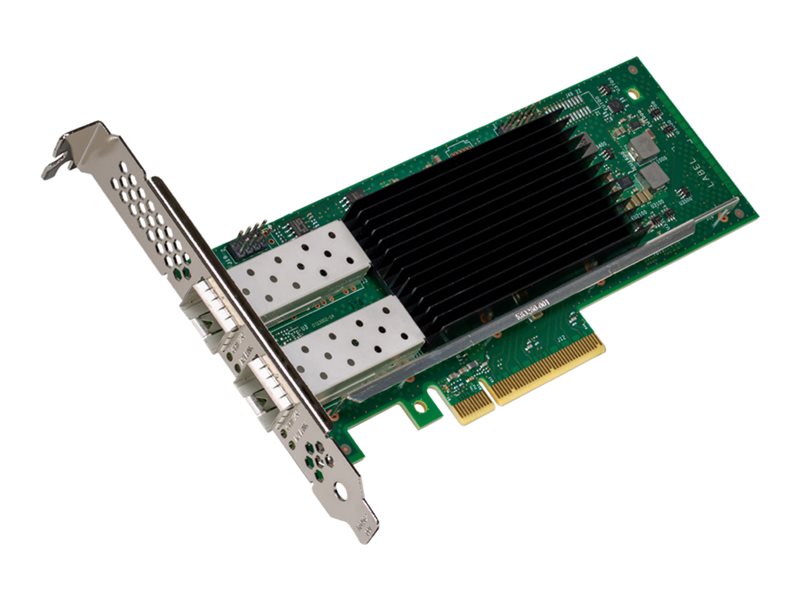

Network adapter - PCIe 4.0 x8 low profile - 25 Gigabit SFP28 x 2 - CTO
| Main Specifications | |
|---|---|
| Product Description | Intel E810-XXVDA2 - network adapter - PCIe 4.0 x8 - 25 Gigabit SFP28 x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 4.0 |
| Ports | 25 Gigabit SFP28 x 2 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Data Link Protocol | 10GbE, 25GbE |
| Data Transfer Rate | 25 Gbps |
| Network / Transport Protocol | iSCSI, TCP/IP, iWARP |
| Processor | Intel E810-XXVAM2 |
| Pricing Type | CTO |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet/25Gb Ethernet - SFP28 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC Class B certified, UL, VCCI, BSMI, RCM, KCC, RoHS 2 (2011/65/EU) |
| Pricing Type | CTO |
| Networking | |
| Ports | 25 Gigabit SFP28 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Network / Transport Protocol | iSCSI, TCP/IP, iWARP |
| Features | WOL, IPv6 support, IPv4 support, iSCSI boot, GENEVE support, tunnel offload, NVGRE, VXLAN, iWARP support, RoCE v2, RSS, VMQueue, NPAR, SR-IOV, DPDK, hardware root of trust, secure boot, audit logs, sanitization, DDIO Technology, UEFI PXE Boot, legacy BIOS PXE Boot |
| Power | |
| Power Consumption Operational | 8.9 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Processor / Memory | |
| Processor | Intel E810-XXVAM2 |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.7 in |
