Network tester
| Main Specifications | |
|---|---|

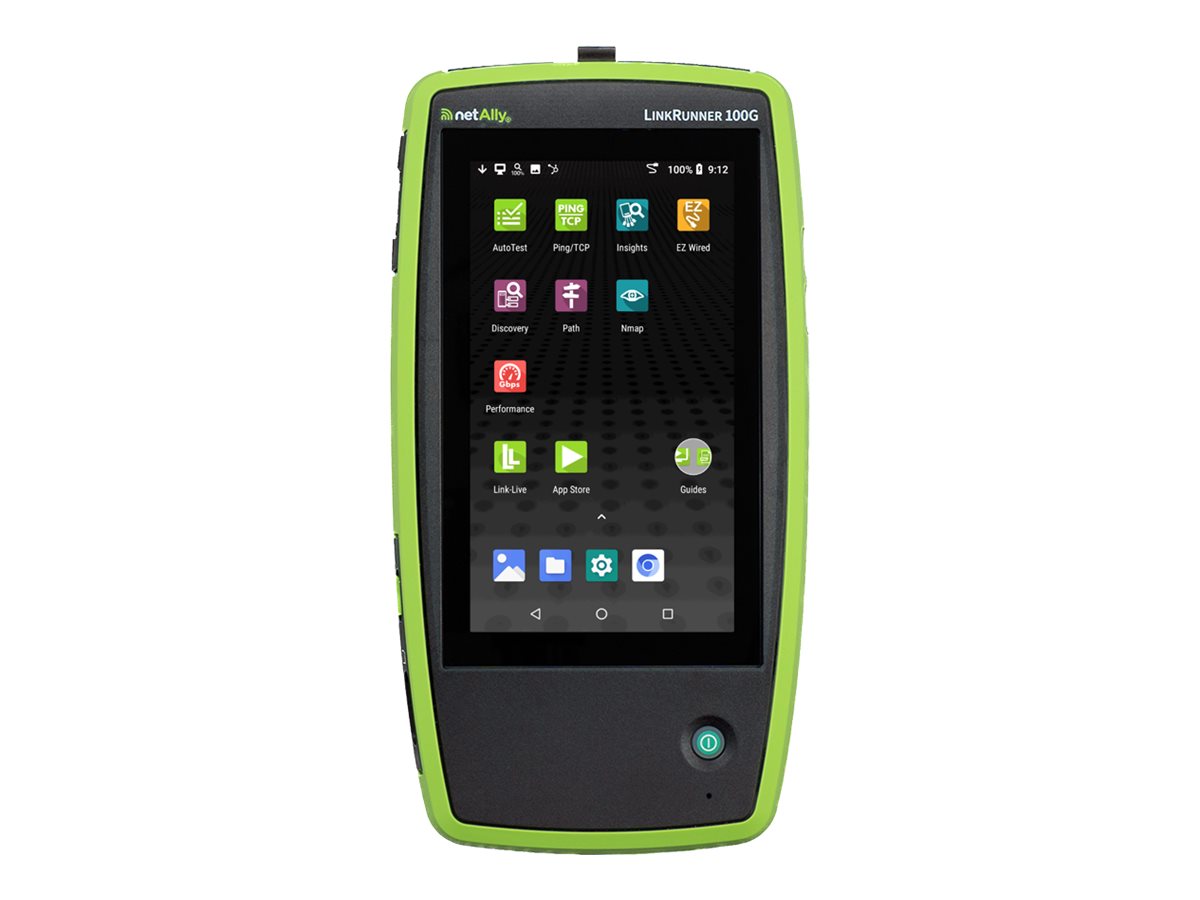

| Product Description | NetAlly LinkRunner 100G - network tester |
| Device Type | Network tester |
| Features | USB connectivity, build-in 8GB flash |
| Display | 5" |
| Power | 100-240 V |
| Dimensions (WxDxH) | 4.1 in x 2.8 in x 7.7 in |
| Weight | 31.74 oz |
| General | |
| Device Type | Network tester |
| Media | Copper, fiber |
| Features | USB connectivity, build-in 8GB flash |
| Included Accessories | Power adapter, 850nm multimode 100 Gbps QSFP28 interface, 3 m fiber patch cable, 3 m MPO12 type A cable, carrying case |
| Cables Included | 1 x RJ-45 coupler |
| Connectors | 24 pin USB type C, 4 pin USB type A, QSFP28, RJ-45 |
| Compliant Standards | CSA, EMC, FCC, IEC 61010-1:2010, IEC 61326-1, IEC 60721-3-7 Class 7M5 |
| Power | |
| Input Voltage | 100-240 V |
| Output Voltage | 20 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Shock And Vibration Standards | MIL-PRF-28800F: Class 3 |
| Battery | |
| Technology | Lithium ion |
| Voltage | 7.2 V |
| Run Time (Up To) | 3 days |
| Display | |
| Diagonal Size | 5" |
| Technology | LCD |
| Display Resolution | 720 x 1280 pixels |
| Color Support | Color |
| Features | Touchscreen |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 2.8 in |
| Height | 7.7 in |
| Weight | 31.74 oz |
