USFF M5 Max - RAM 36 GB - SSD 512 GB - M5 Max 32-core - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 6.0 - macOS 27 Golden Gate - monitor: none - silver
| Main Specifications | |
|---|---|
| Product Description | Apple Mac Studio - USFF M5 Max - 36 GB - SSD 512 GB |
| Type | Personal computer - USFF |
| EU Data Act | Https://regulatoryinfo.apple.com/eudataact |
| Localization | Language: English / region: United States |
| Processor | Apple M5 Max (18-core) |
| Processor Main Features | Neural Accelerators, Hardware-accelerated ray tracing, 460 GB/s memory bandwidth, Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW, video decode engine, 2 video encode engines, 2 ProRes encode and decode engines, AV1 decode |
| Neural Processor Unit (NPU) | 16-core Neural Engine |
| RAM | 36 GB |
| Hard Drive | SSD 512 GB |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Apple M5 Max 32-core |
| Supported Digital Video Standards | H.264, HEVC, ProRes, ProRes RAW, AV1 |
| Networking | 1GbE, 2.5GbE, 5GbE, 10GbE, 802.11a, Wi-Fi 5, Wi-Fi 6, Wi-Fi 7, 802.11b/g/n, Bluetooth 6.0 |
| Power | (50/60 Hz) |
| OS Provided | Apple macOS 27 Golden Gate |
| Software Included | Siri AI, iPhone Mirroring, App Store, Apple Books, Calendar, Contacts, Apple FaceTime, Find My, Apple Freeform, Apple GarageBand, Home, Apple iMovie, Apple Keynote, Mail, Maps, Messages, Music, News, Notes, Apple Numbers, Apple Pages, Passwords, Photo Booth, Photos, Podcasts, Apple Preview, Apple QuickTime Player, Reminders, Apple Safari, Apple Shortcuts, Stocks, Apple Time Machine, Tips, Apple TV, Voice Memos, Weather |
| Apple Intelligence | Yes |
| Color | Silver |
| Dimensions (WxDxH) | 7.8 in x 7.8 in x 3.7 in |
| Weight | 5.95 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Carbon Footprint | 314 kg carbon emissions |
| Rare Earth Materials | 100% recycled rare earth elements in all magnets |
| Manufacturer Warranty | Limited warranty - 1 year ¦ Technical support - phone consulting - 90 days |
| General | |
| Type | Personal computer |
| EU Data Act | Https://regulatoryinfo.apple.com/eudataact |
| Product Form Factor | USFF |
| Built-in Devices | Speaker |
| Color | Silver |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |

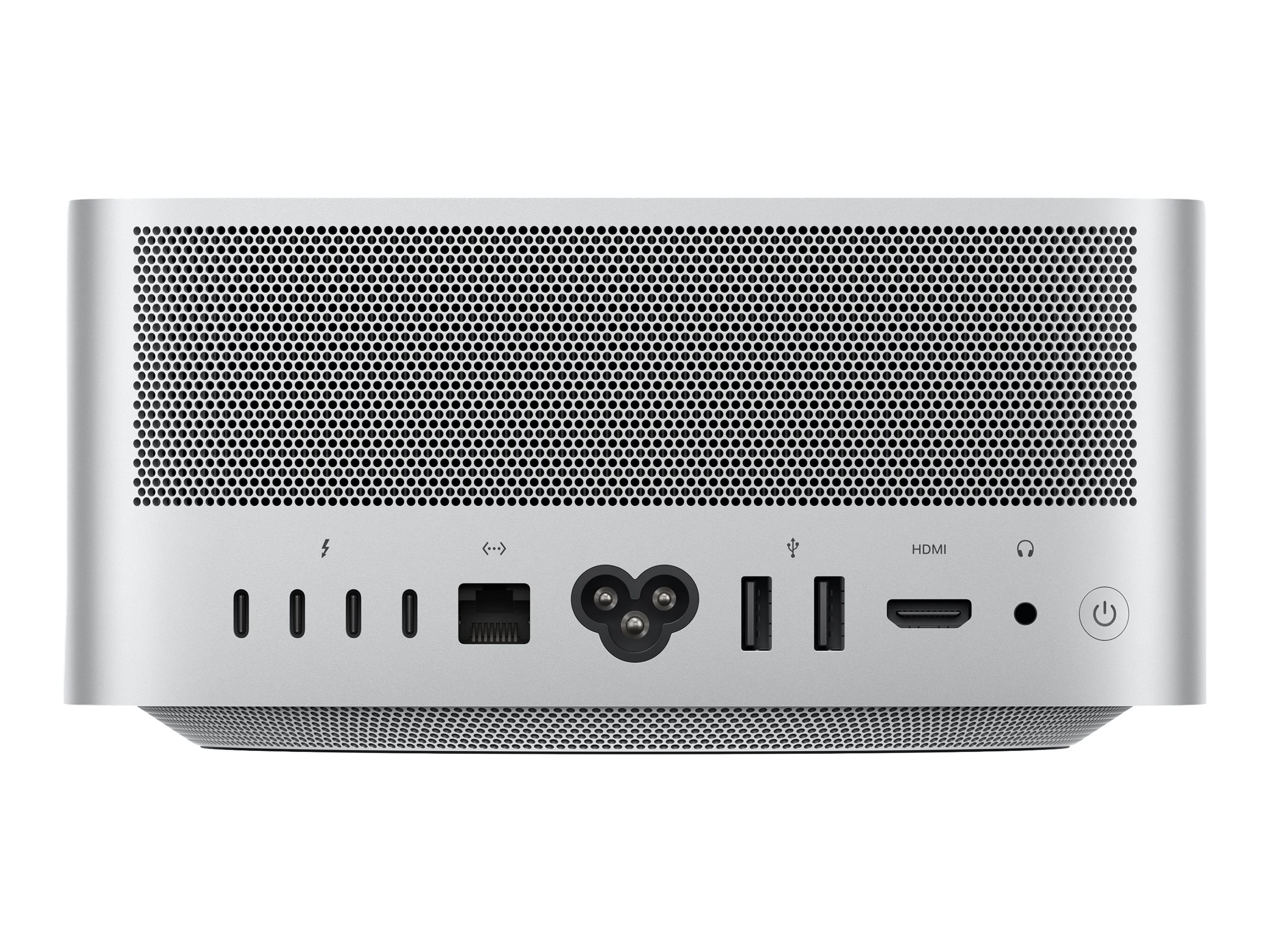

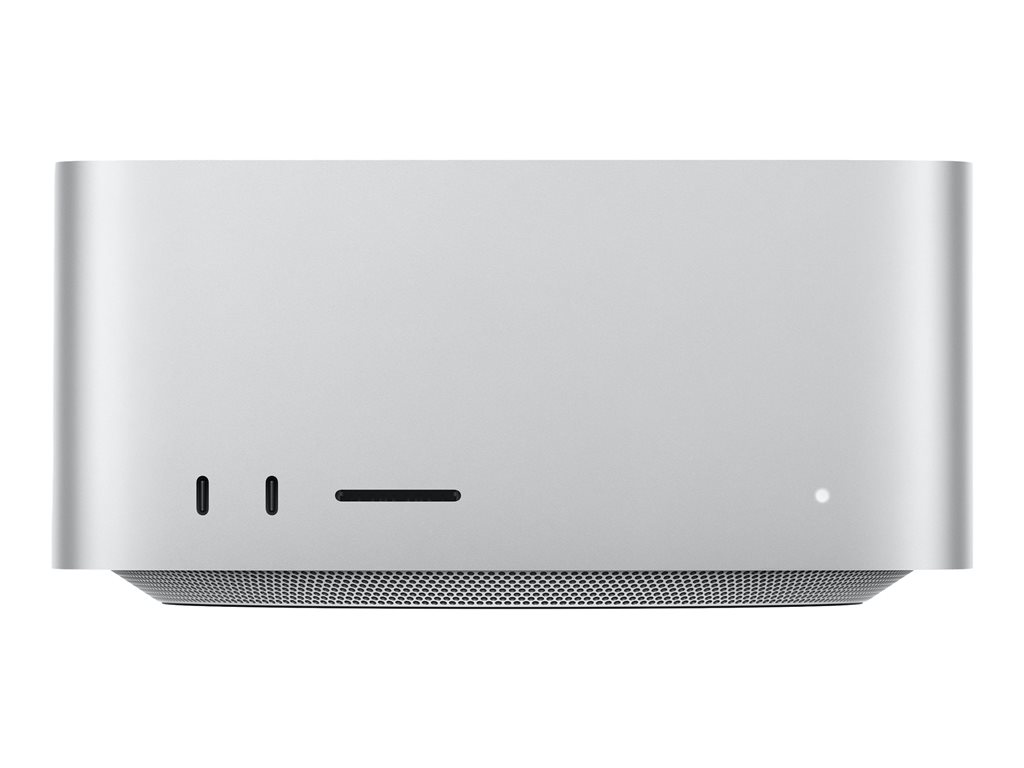

| Interfaces | 4 x Thunderbolt 5/USB4/DisplayPort 2.1 - Type C (4 rear) ¦ 2 x USB 3.0 - Type A (2 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN (10Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x headphones - mini-jack (1 rear) ¦ 2 x USB-C - Type C (2 in front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year ¦ Technical support - phone consulting - 90 days |
| RAM | |
| Installed Size | 36 GB |
| Configuration Features | Unified memory |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Apple N1 |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth 6.0 |
| Features | Thread networking technology |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 480 watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Apple M5 Max 32-core |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 5 |
| Operating System / Software | |
| OS Provided | Apple macOS 27 Golden Gate |
| Software | Siri AI, iPhone Mirroring, App Store, Apple Books, Calendar, Contacts, Apple FaceTime, Find My, Apple Freeform, Apple GarageBand, Home, Apple iMovie, Apple Keynote, Mail, Maps, Messages, Music, News, Notes, Apple Numbers, Apple Pages, Passwords, Photo Booth, Photos, Podcasts, Apple Preview, Apple QuickTime Player, Reminders, Apple Safari, Apple Shortcuts, Stocks, Apple Time Machine, Tips, Apple TV, Voice Memos, Weather |
| Apple Intelligence | Yes |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 512 GB |
| Dimensions & Weight | |
| Width | 7.8 in |
| Depth | 7.8 in |
| Height | 3.7 in |
| Weight | 5.95 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SDXC UHS-II Memory Card |
| Multimedia Functionality | |
| Supported Digital Video Standards | H.264, HEVC, ProRes, ProRes RAW, AV1 |
| Processor / Chipset | |
| CPU | Apple M5 Max |
| Number of Cores | 18-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Neural Accelerators, Hardware-accelerated ray tracing, 460 GB/s memory bandwidth, Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW, video decode engine, 2 video encode engines, 2 ProRes encode and decode engines, AV1 decode |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 314 kg carbon emissions |
| Rare Earth Materials | 100% recycled rare earth elements in all magnets |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | 16-core Neural Engine |
