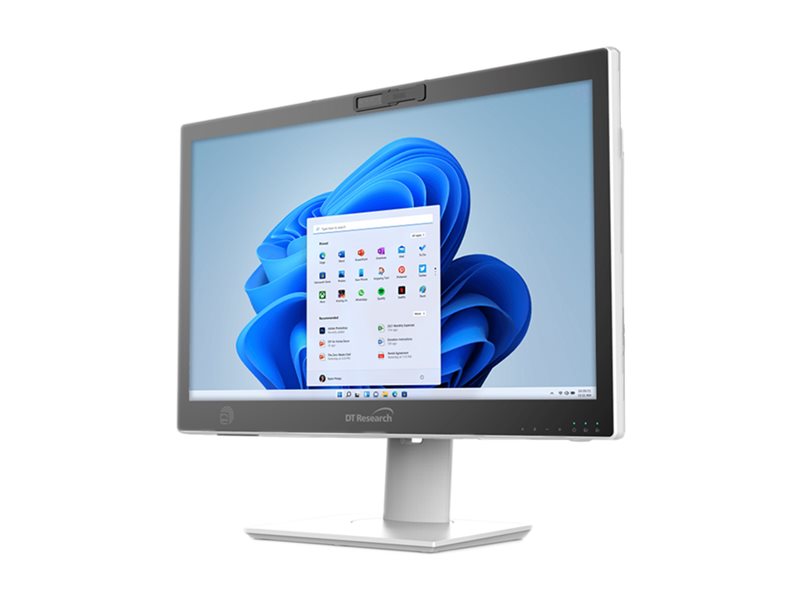

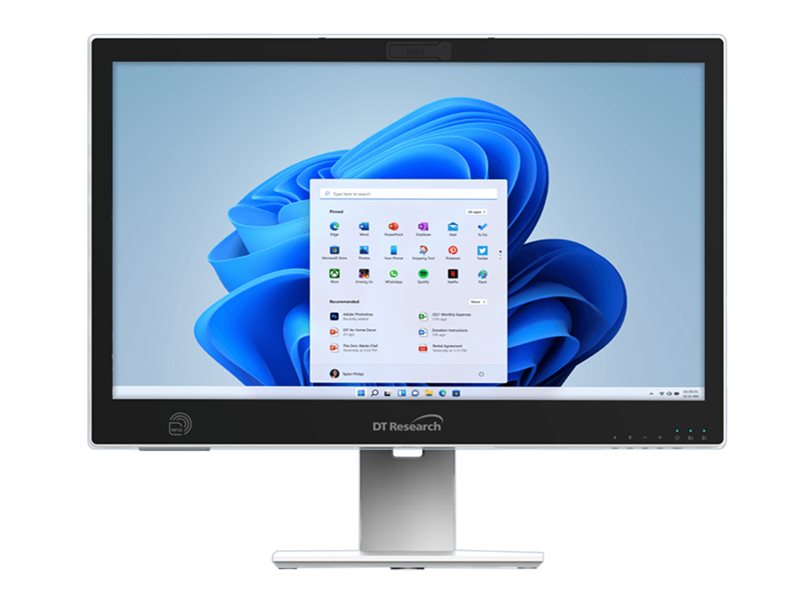

Medical Grade - all-in-one Core Ultra 5 225U / up to 4.8 GHz - RAM 16 GB - SSD 512 GB - Intel Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 - Win 11 - monitor: LCD 23.8" 1920 x 1080 (Full HD) touchscreen - white
| Main Specifications | |
|---|---|
| Product Description | DT Research DT574LA - Medical Grade - all-in-one Core Ultra 5 225U - 16 GB - SSD 512 GB - LCD 23.8" |
| Type | Personal computer - all-in-one |
| Processor | Intel Core Ultra 5 (Series 2) 225U (up to 4.8 GHz, (12-core) |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 14 Threads |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 12 TOPS |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 16 GB DDR5 SDRAM |
| Hard Drive | SSD 512 GB |
| Optical Storage | No optical drive |
| Monitor | 23.8" - LCD - 1920 x 1080 (Full HD) - touchscreen |
| Graphics Controller | Intel Graphics - up to 8 TOPS |
| Networking | 1GbE, 2.5GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6, Wi-Fi 7, Bluetooth |
| OS Provided | Windows 11 |
| Color | White |
| Dimensions (WxDxH) | 22.4 in x 1.7 in x 14.5 in |
| Weight | 16.31 lbs |
| General | |
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | 5 W speakers, capacitive touch screen |
| Embedded Security | Firmware Trusted Platform Module (fTPM) |
| Color | White |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 3.2 Gen 2 - Type A (one of them is charging) ¦ 2 x COM ¦ 1 x HDMI |
| Miscellaneous | |
| Included Accessories | 2 x hot-swappable battery |
| VESA Mounting Interface | VESA, 100 x 100 mm |
| Compliant Standards | IP65 front, IP54 rear, ANSI/AAMI ES 60601-1, IEC 60601-1, IEC 60601-1-2, FCC part 18, FCC Part 15 Class B, CE/EMC |
| RAM | |
| Installed Size | 16 GB |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 1 (total) / 0 (empty) |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 |
| Power | |
| Device Type | Power adapter + battery |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LCD |
| Touchscreen | Yes |
| Diagonal Size | 23.8" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Brightness | 250 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Fanless cooling, Slim Design, Projected Capacitive Touch (P-CAP) technology, antimicrobial enclosure |
| Graphics Controller | |
| Graphics Processor | Intel Graphics - up to 8 TOPS |
| Video Interfaces | HDMI |
| Operating System / Software | |
| OS Provided | Windows 11 |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 512 GB |
| Audio Input | |
| Type | Array microphone |
| Dimensions & Weight | |
| Width | 22.4 in |
| Depth | 1.7 in |
| Height | 14.5 in |
| Weight | 16.31 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 2) 225U |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 14 Threads |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 12 TOPS |
| Total Processor Performance Up To (TOPS) | 24 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | OpenVINO, WindowsML, DirectML, ONNX RT |
| Windows Studio Effects Support | Yes |
