Wireless router 1-port switch - 1GbE, 2.5GbE - WAN ports: 2 - Dual Band - TAA Compliant - for P/N: PCP-B-1Y, PCP-B-2Y, PCP-B-4Y, PCP-D-1Y, PCP-D-2Y, PCP-D-4Y, PCP-E-2Y, PRM-D-2Y
| Main Specifications | |
|---|---|
| Product Description | PePLink Max Orbit 2 - wireless router - Wi-Fi 6 - desktop - TAA Compliant |
| Device Type | Wireless router - 1-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 2 |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 1 Gbps ¦ VPN throughput (encryption): 200 Mbps ¦ VPN throughput: 400 Mbps |
| Capacity | Recommended users: 1 - 150 ¦ VPN peers: 2 / 5 / 10 / 20 |
| Network / Transport Protocol | DHCP, DNS, HTTPs, PPPoE |
| Routing Protocol | OSPF, BGP, RIP-2, VRRP |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, CLI, HTTPS |
| Features | PoE+, DHCP server, DHCP reservation, DNS proxy, load balancing, DoS attack prevention, NAT support, port forwarding, SIP ALG, Advanced QoS, e-mail notification, Syslog support, 2x2 MIMO technology, CLI management, Access Point Auto Discovery, VRRP support, PPPoE support, stateful firewall, Web Filtering, bandwidth bonding, hot failover |
| Compliant Standards | UPnP, IEEE 802.3at |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 8.6 in x 7.7 in x 1.2 in |
| Weight | 32.59 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: PCP-B-1Y, PCP-B-2Y, PCP-B-4Y, PCP-D-1Y, PCP-D-2Y, PCP-D-4Y, PCP-E-1Y, PCP-E-2Y, PCP-E-4Y, PRM-B-1Y, PRM-B-2Y, PRM-B-4Y, PRM-D-1Y, PRM-D-2Y, PRM-D-4Y, PRM-E-1Y, PRM-E-2Y, PRM-E-4Y |
| General | |
| Device Type | Wireless router - 1-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 1 Gbps ¦ VPN throughput (encryption): 200 Mbps ¦ VPN throughput: 400 Mbps |
| Capacity | Recommended users: 1 - 150 ¦ VPN peers: 2 / 5 / 10 / 20 |
| Network / Transport Protocol | DHCP, DNS, HTTPs, PPPoE |
| Routing Protocol | OSPF, BGP, RIP-2, VRRP |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, CLI, HTTPS |
| Encryption Algorithm | 256-bit AES |
| Authentication Method | RADIUS |
| Features | PoE+, DHCP server, DHCP reservation, DNS proxy, load balancing, DoS attack prevention, NAT support, port forwarding, SIP ALG, Advanced QoS, e-mail notification, Syslog support, 2x2 MIMO technology, CLI management, Access Point Auto Discovery, VRRP support, PPPoE support, stateful firewall, Web Filtering, bandwidth bonding, hot failover |
| Compliant Standards | UPnP, IEEE 802.3at, FCC, RoHS, REACH |
| Flash Memory | 8 GB |
| Built-in Devices | GPS |
| Status Indicators | Status, Wi-Fi |
| Expansion / Connectivity | |

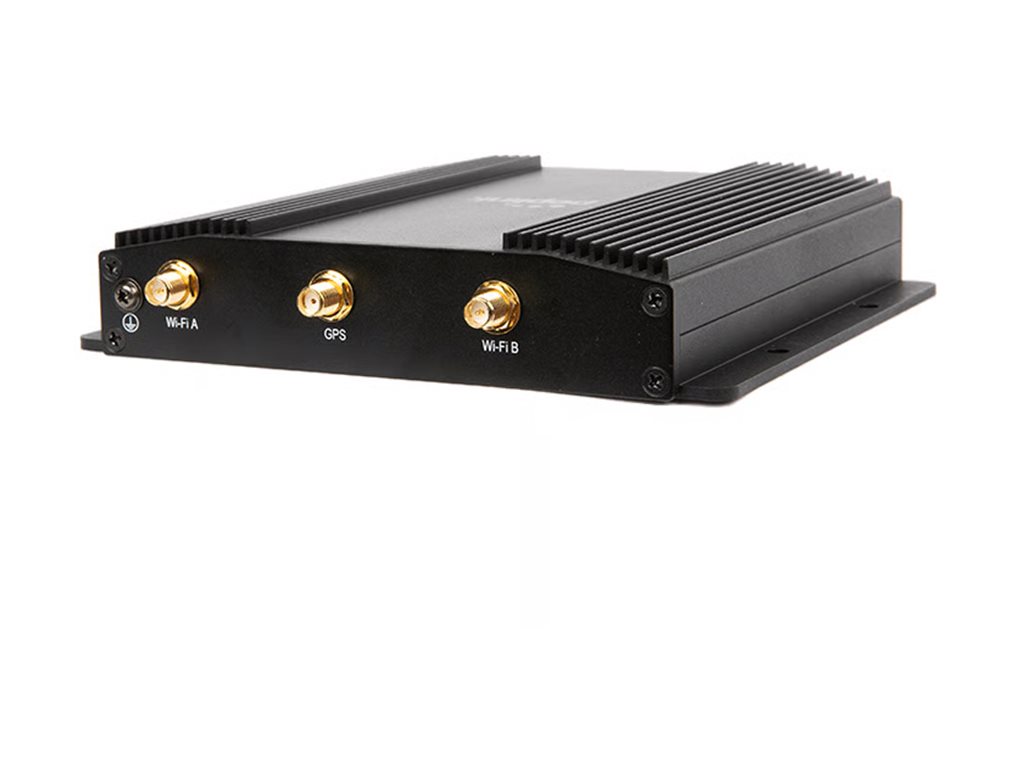

| Interfaces | WAN: 1 x 2.5G Gigabit Ethernet ¦ WAN: 1 x Gigabit Ethernet ¦ LAN: 1 x Gigabit Ethernet ¦ Antenna: 2 x RP-SMA - Wi-Fi ¦ Antenna: 1 x SMA - GPS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

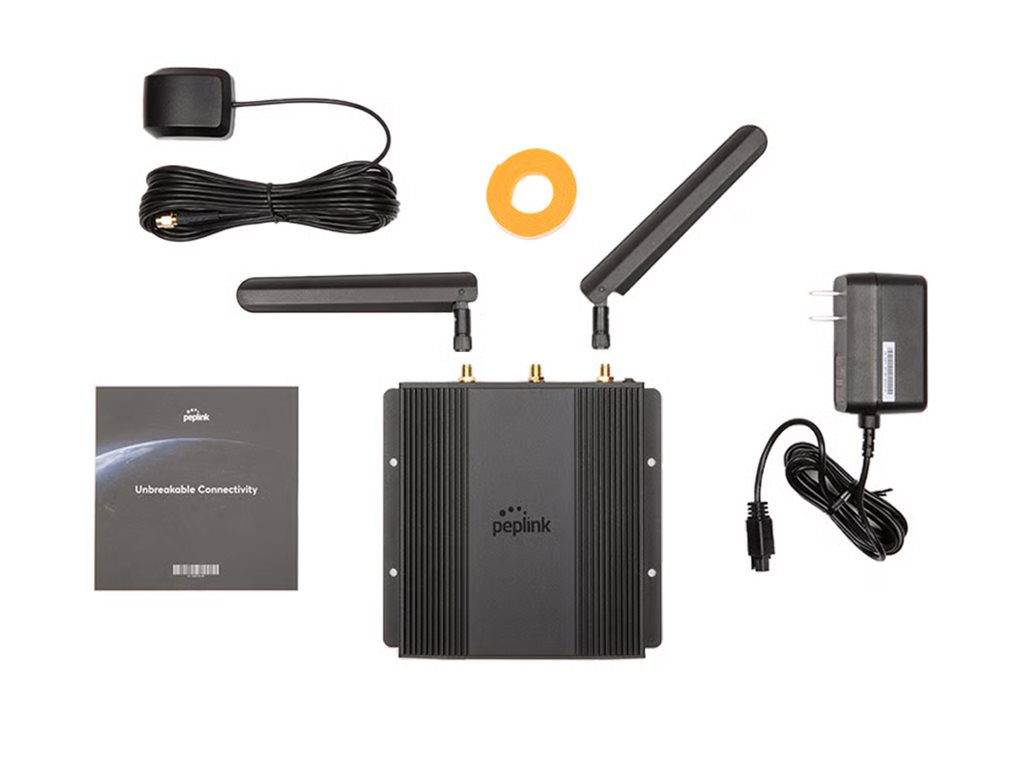

| Included Accessories | 2 x Wi-Fi antennas, GPS antenna |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 9 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.6 in |
| Depth | 7.7 in |
| Height | 1.2 in |
| Weight | 32.59 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Configuration Details | 2 detachable Wi-Fi antennas, 1 detachable GPS antenna |
| Compatibility Information | |
| Designed For | P/N: PCP-B-1Y, PCP-B-2Y, PCP-B-4Y, PCP-D-1Y, PCP-D-2Y, PCP-D-4Y, PCP-E-1Y, PCP-E-2Y, PCP-E-4Y, PRM-B-1Y, PRM-B-2Y, PRM-B-4Y, PRM-D-1Y, PRM-D-2Y, PRM-D-4Y, PRM-E-1Y, PRM-E-2Y, PRM-E-4Y |
