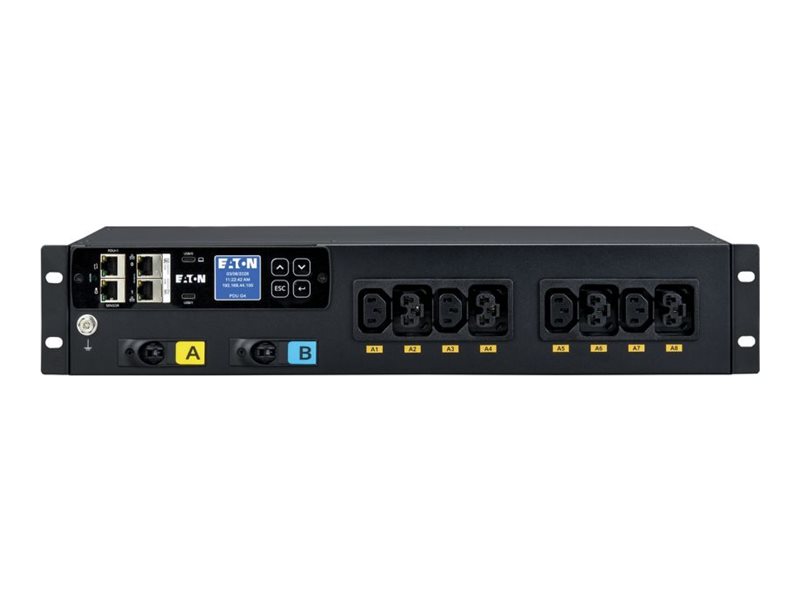

Power distribution unit (rack-mountable) - metered input - AC 208 V - 5 kW - 1-phase - Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 20 (10 x IEC 60320 C13, 10 x IEC 60320 C39) - 2U - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Eaton G4 - power distribution unit - metered input - 5 kW |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 2U |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Power Capacity | 5 kW |
| Power Redundancy | Yes |
| Input Connectors | 1 x power NEMA L6-30P |
| Output connectors | 10 x power IEC 60320 C13 ¦ 10 x power IEC 60320 C39 |
| Networking | Ethernet 10/100/1000 |
| Color | Black |
| Dimensions (WxDxH) | 17.5 in x 9.8 in x 3.5 in |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x Gigabit LAN - RJ-45 ¦ 1 x power redundance port ¦ 1 x sensor ¦ 2 x USB-C |
| Miscellaneous | |
| Cables Included | Power cable - external - 10 ft |
| Rack Mounting Kit | Included |
| Features | Bank level current monitoring, color-coded labels, input metered, horizontal orientation |
| Compliant Standards | cTUVus |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Power Device | |
| Power Redundancy | Yes |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 10 x power IEC 60320 C13 ¦ 10 x power IEC 60320 C39 |
| Max Electric Current | 24 A |
| Power Capacity | 5 kW |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 9.8 in |
| Height | 3.5 in |
