Router - WWAN 8-port switch - 1GbE - WAN ports: 2 - 5G - TAA Compliant
| Main Specifications | |
|---|---|

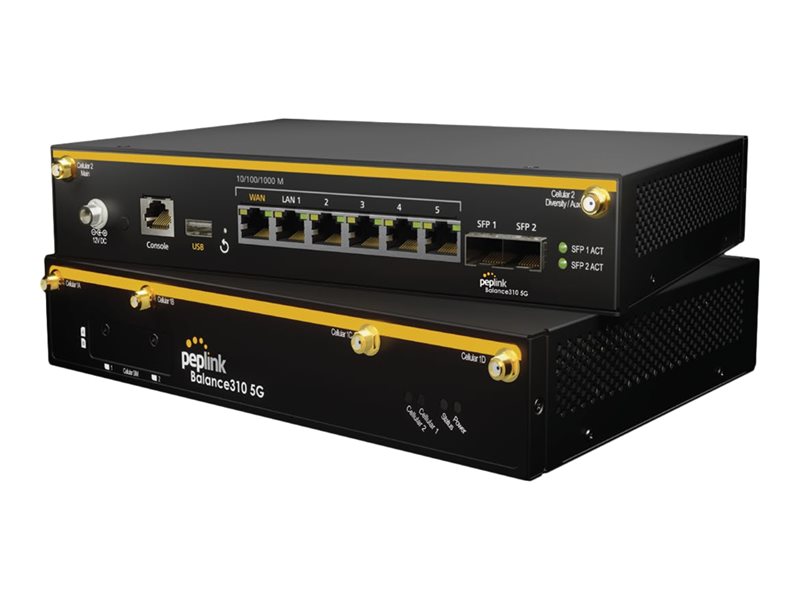

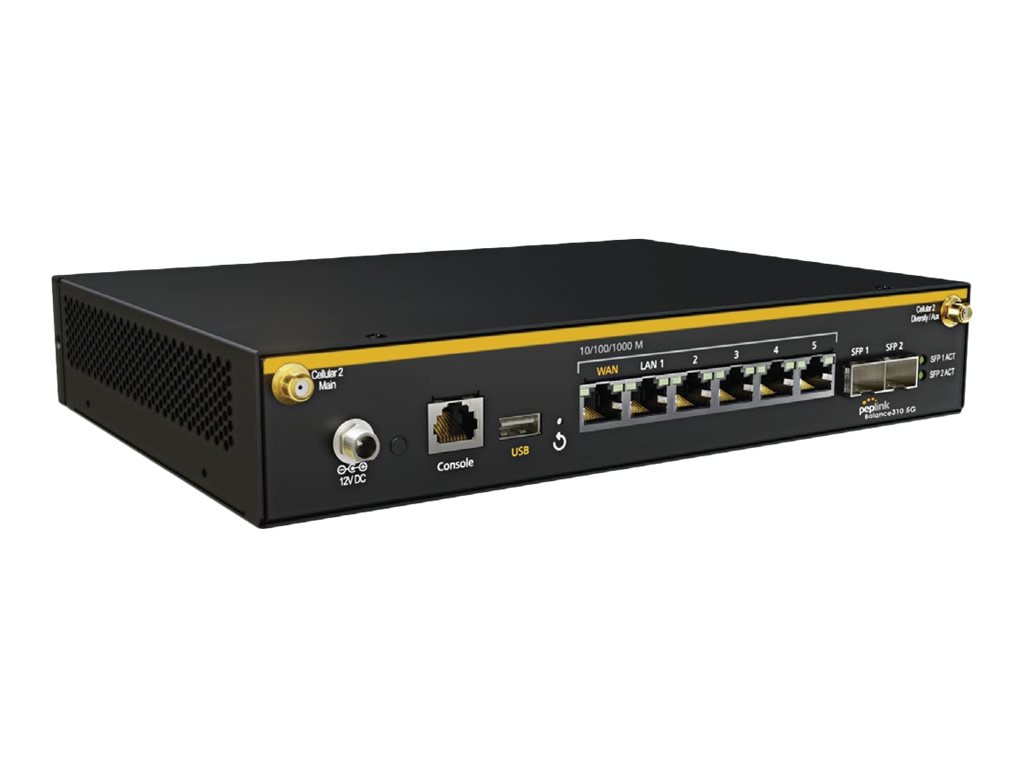

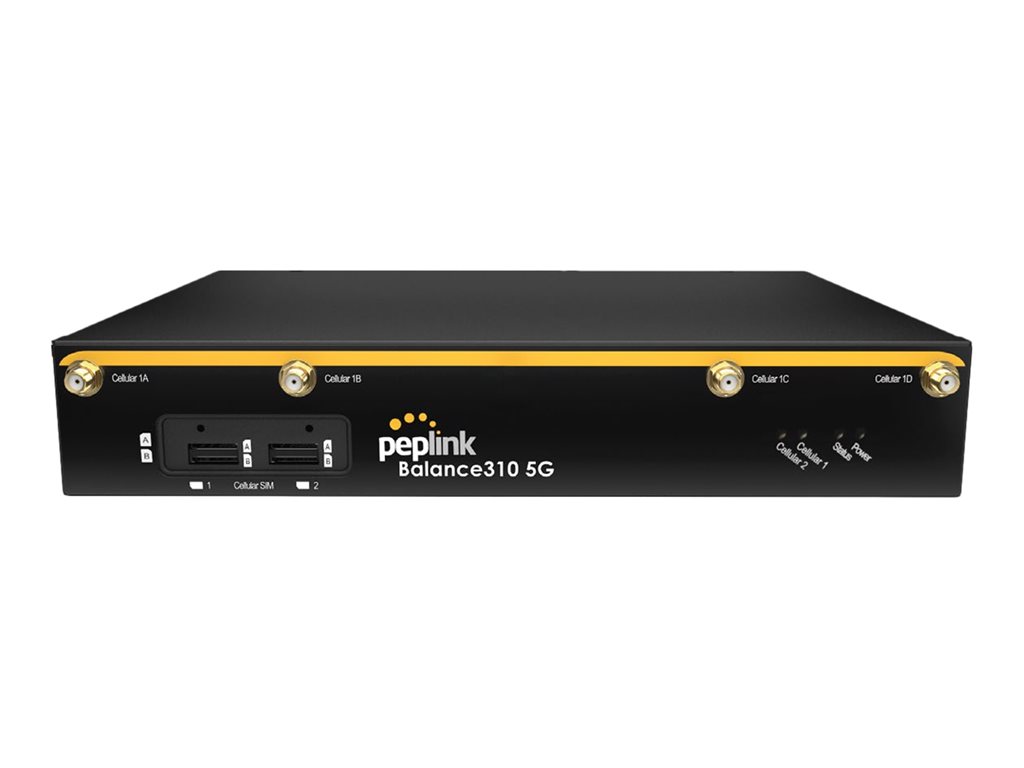

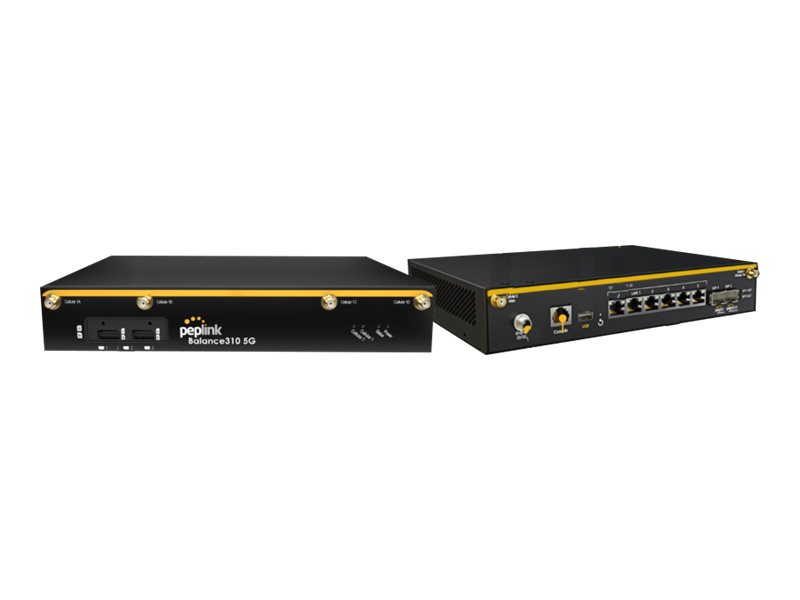

| Product Description | PePLink Balance 310 5G - router - WWAN - LTE - 5G - desktop - TAA Compliant |
| Device Type | Router - wireless cellular modem - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Generation | 5G |
| Cellular Band | LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n78, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n20, 5G n28, 5G n41, 5G n66, 5G n71, 5G n77, 5G n79, LTE B34, 5G n38, 5G n13, 5G n14, 5G n18, 5G n25, 5G n26, 5G n29, 5G n30, 5G n40, 5G n48, 5g n70, 5G n75, 5G n76 |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, LTE |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs, IPv6 |
| Routing Protocol | RIP-2, BGP, OSPFv2, static IP routing, GRE |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, CLI |
| Features | NAT support, load balancing, VLAN support, GRE tunneling, DoS protection, hot failover, IP forwarding support, port forwarding, Bonjour proxy, DynDNS, OpenVPN server, Web Filtering, SpeedFusion technology, cloud managed, Captive Portal, DHCP reservation, 3G/4G USB Dongle Support, e-mail notification |
| Compliant Standards | UPnP |
| Power | DC 54 V |
| Dimensions (WxDxH) | 8.1 in x 7.3 in x 1.6 in |
| Weight | 3.42 lbs |
| Localization | Global |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, LTE |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs, IPv6 |
| Routing Protocol | RIP-2, BGP, OSPFv2, static IP routing, GRE |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, CLI |
| Encryption Algorithm | 256-bit AES |
| Authentication Method | RADIUS, LDAP, Active Directory, internal user database |
| Features | NAT support, load balancing, VLAN support, GRE tunneling, DoS protection, hot failover, IP forwarding support, port forwarding, Bonjour proxy, DynDNS, OpenVPN server, Web Filtering, SpeedFusion technology, cloud managed, Captive Portal, DHCP reservation, 3G/4G USB Dongle Support, e-mail notification |
| Compliant Standards | UPnP, FCC, RoHS |
| Status Indicators | Power, status |
| Expansion / Connectivity | |
| Interfaces | WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 8 x RJ-45 ¦ LAN: Ethernet - SFP (mini-GBIC) ¦ USB: 1 x 4 pin USB Type A ¦ Antenna: SMA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 4 x LTE antennas, GPS antenna, rubber feet |
| TAA Compliant | Yes |
| Localization | Global |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 54 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Generation | 5G |
| Cellular Band | LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n78, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n20, 5G n28, 5G n41, 5G n66, 5G n71, 5G n77, 5G n79, LTE B34, 5G n38, 5G n13, 5G n14, 5G n18, 5G n25, 5G n26, 5G n29, 5G n30, 5G n40, 5G n48, 5g n70, 5G n75, 5G n76 |
| Dimensions & Weight | |
| Width | 8.1 in |
| Depth | 7.3 in |
| Height | 1.6 in |
| Weight | 3.42 lbs |
