Docking station - USB-C 3.2 Gen 2 - 2 x HDMI, 2 x DP - 1GbE - 96 watt - North America
| Main Specifications | |
|---|---|
| Product Description | Startech - docking station - USB-C 3.2 Gen 2 - 2 x HDMI, 2 x DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.2 Gen 2 |
| Video Interfaces | 2 x HDMI, 2 x DP |
| Dimensions (WxDxH) | 8 in x 3.7 in x 1.3 in |
| Weight | 12.7 oz |
| Color | Space gray |
| Localization | North America |
| Networking | Gigabit Ethernet |
| Power | Power adapter 135 watt AC 100-240 V 96 watt Power Provided (DC 20 V) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 8 in |
| Depth | 3.7 in |
| Height | 1.3 in |
| Weight | 12.7 oz |
| Enclosure Color | Space gray |
| Localization | North America |
| Expansion / Connectivity | |

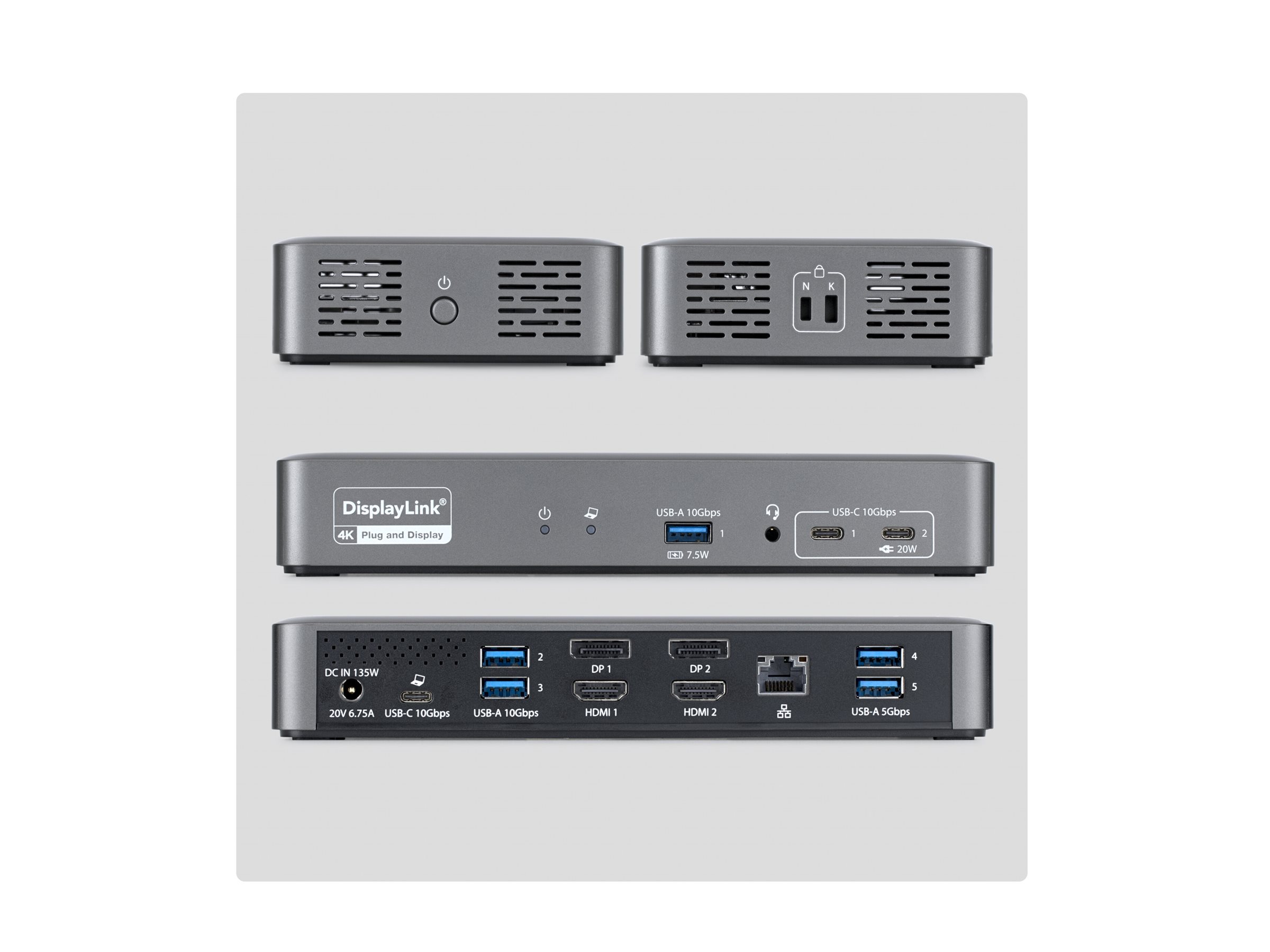

| Interfaces | 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - 20 pin DisplayPort ¦ 3 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB-C 3.2 Gen 2 with Power Delivery (20 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (96 W) - 24 pin USB-C ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm 4-pole |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

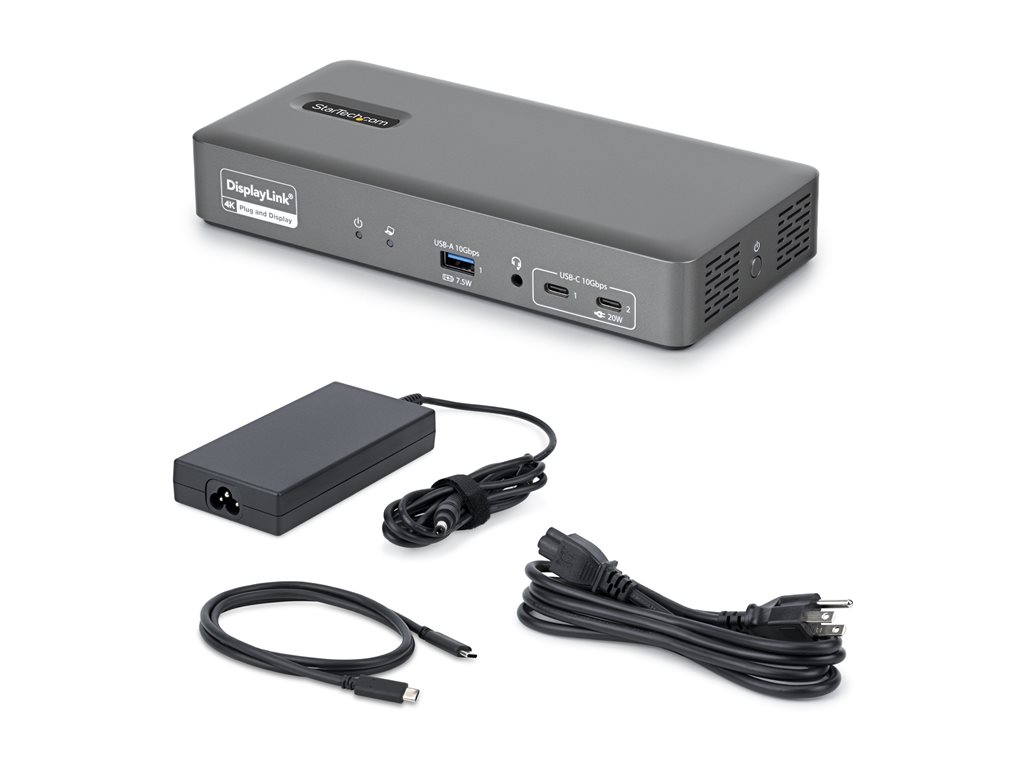

| Cables Included | 1 x USB-C host cable - external |
| Features | Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, UASP support, dual display support, DisplayLink DL-6950 chipset |
| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Compliant Standards | FCC, WEEE, RCM, DisplayLink certified |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | IEEE 802.3ab, USB 3.2 Gen 2, USB 3.2 Gen 1 |
| Power | |
| Power Device | Power adapter |
| Power Consumption (Max) | 135 watt |
| Voltage Required | AC 100-240 V |
| Power Provided | 96 watt |
| Voltage Provided | DC 20 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 4096 x 2160 - 60 Hz (Dual Display) |
| System Requirements | |
| OS Required | Windows 11, Windows 11 (on ARM), Windows 10, Apple macOS Sequoia 15.0, Apple macOS Sonoma 14.0, Apple macOS Tahoe 26, Apple macOS Ventura 13.0, Apple macOS Monterey 12.0, Apple macOS Big Sur 11.0, Apple macOS Catalina 10.15, Google Chrome OS, Ubuntu |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 2.43 lbs |
