Docking station - for laptop - Thunderbolt 5 - Thunderbolt 5 - 5GbE, 1GbE, 2.5GbE - North America
| Main Specifications | |
|---|---|
| Product Description | Startech - docking station - Thunderbolt 5 - Thunderbolt 5 - 5GbE, 1GbE, 2.5GbE |
| Product Type | Docking station - for laptop |
| Docking Interface | Thunderbolt 5 |
| Video Interfaces | Thunderbolt 5 |
| Dimensions (WxDxH) | 1.8 in x 6.6 in x 3.5 in |
| Weight | 22.43 oz |
| Color | Space gray |
| Localization | North America |
| Networking | 5 Gigabit Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter AC 100-240 V |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station - for laptop |
| Width | 1.8 in |
| Depth | 6.6 in |
| Height | 3.5 in |
| Weight | 22.43 oz |
| Enclosure Color | Space gray |
| Localization | North America |
| Expansion / Connectivity | |

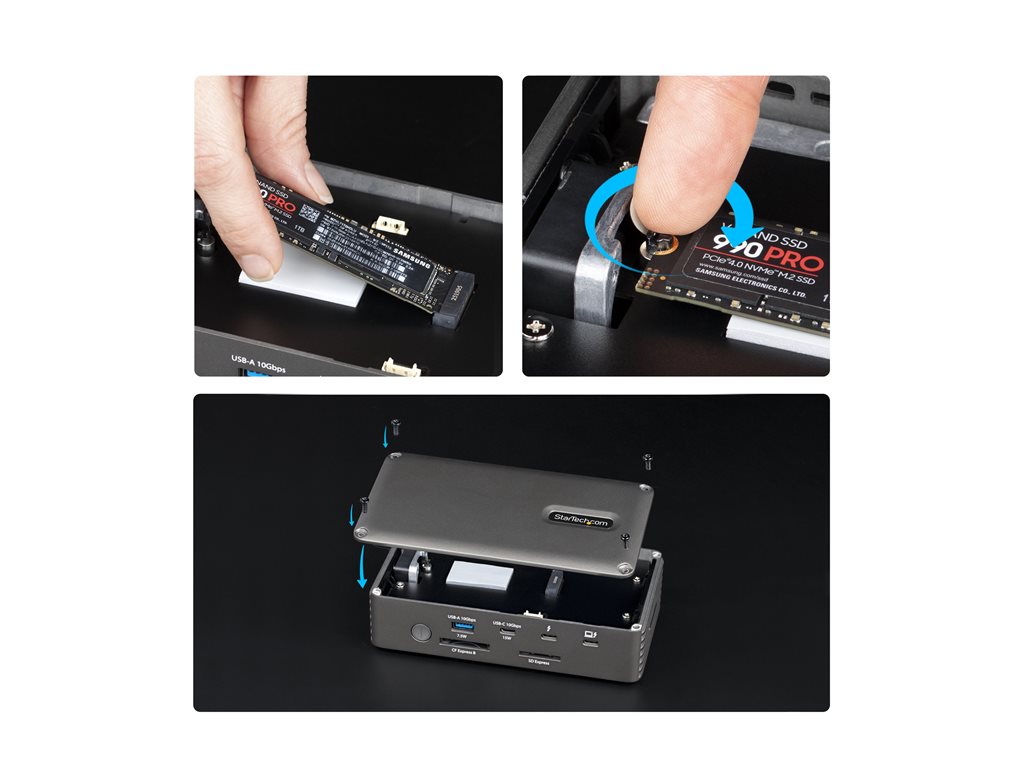

| Expansion Slots | 1 (total) / 1 (free) x CFexpress Type B ¦ 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x M.2 Card (PCIe 4.0 x4 (NVMe) mode) |

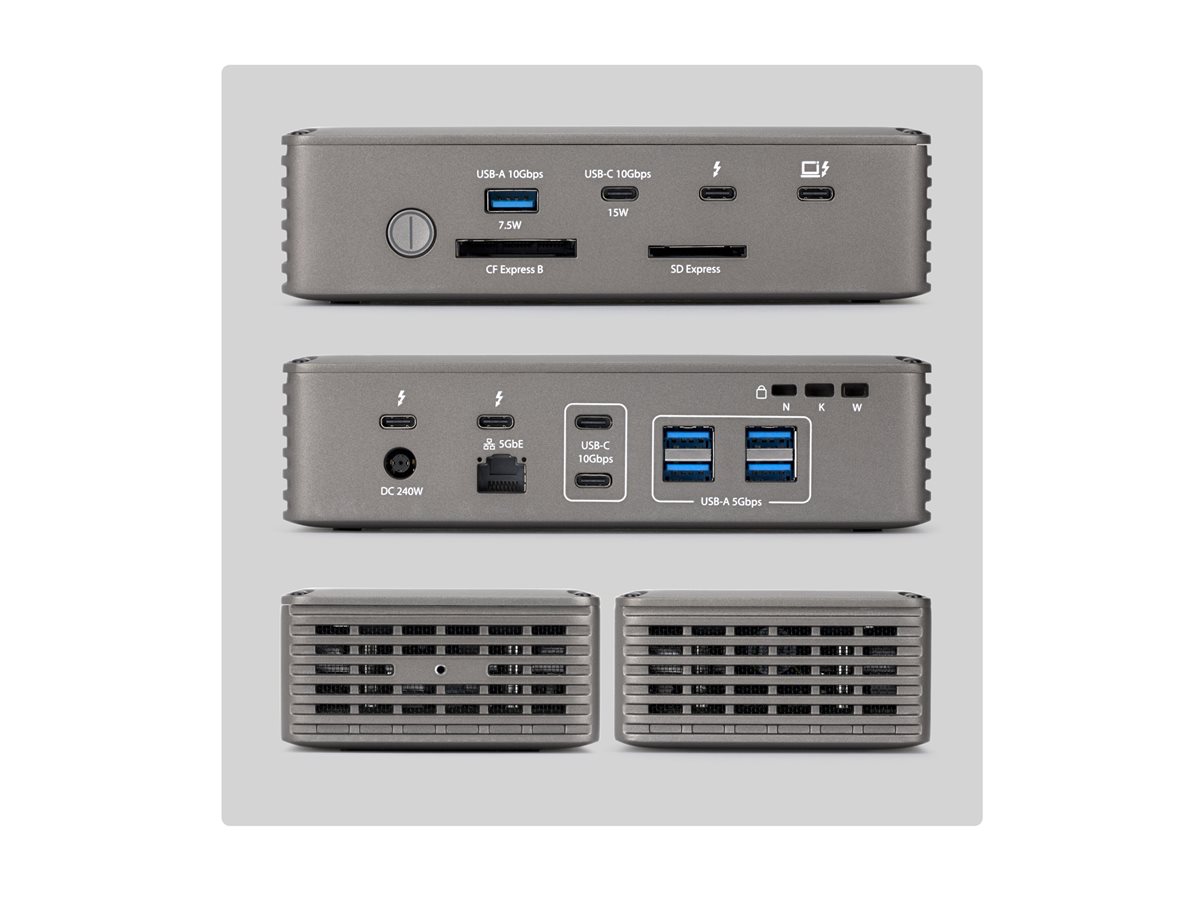

| Interfaces | 1 x Thunderbolt 5 host - 24 pin USB-C ¦ 4 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 2 x USB-C 3.2 Gen 2 (4.5 W) - 24 pin USB-C ¦ 1 x network - 5GBase-T - RJ-45 ¦ 3 x Thunderbolt 5 - 24 pin USB-C ¦ 1 x USB-A 3.2 Gen 2 (7.5 W) - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 (15 W) - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Technical support - lifetime |
| Miscellaneous | |
| Input Device | SD card reader |

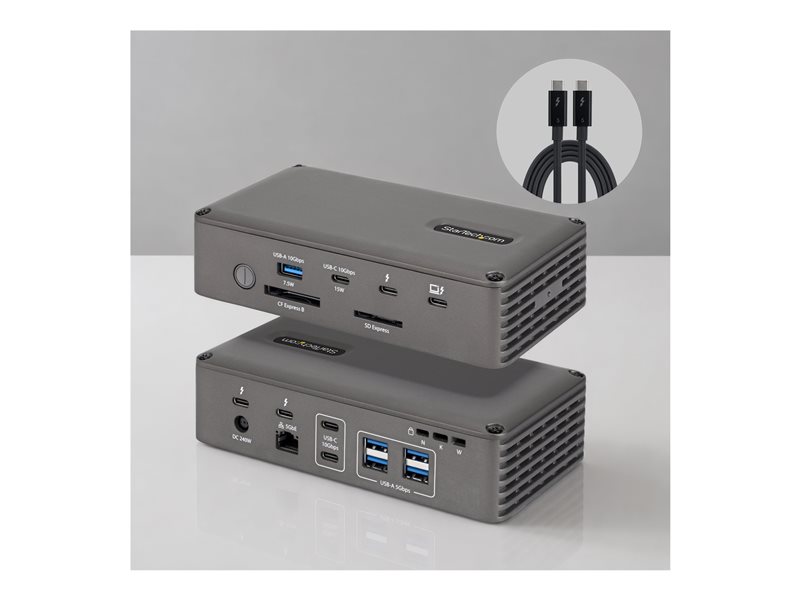

| Cables Included | 1 x Thunderbolt 5 cable - external - 3.3 ft |

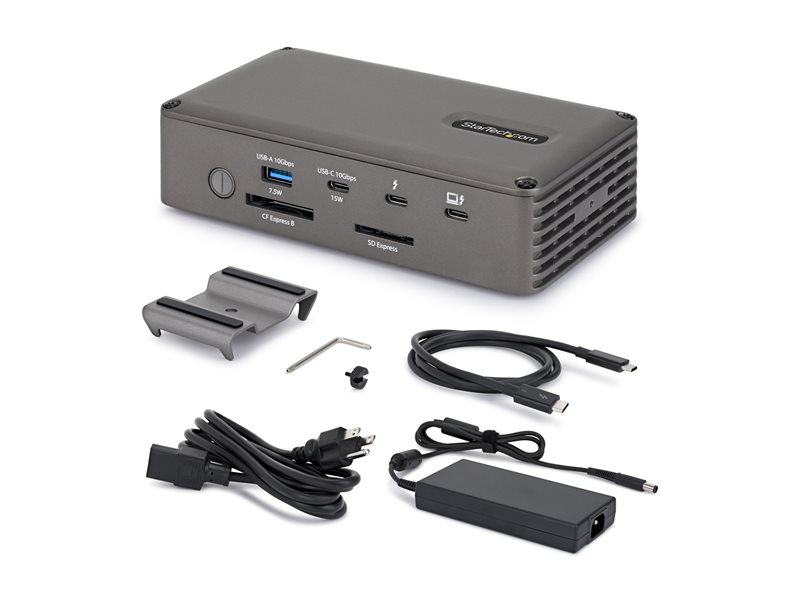

| Included Accessories | Screwdriver, power adapter, Thunderbolt cable (1m) |
| Features | Up to 120 Gbps data transfer, UASP support, full duplex support, Preboot Execution Environment (PXE) support, wake on LAN, up to 4K resolution support, aluminum housing, up to 3 external displays, up to 140W power delivery 3.1, fast charging |
| Security Slot Type | Noble Wedge security slot / Kensington nano security slot / Kensington security slot |
| Compliant Standards | WEEE, RCM, FCC, Thunderbolt 5, BC1.2, USB Power Delivery 3.1 |
| Storage | |
| Storage Controller | PCI Express 4.0 x4 |
| Networking | |
| Data Link Protocol | 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Compliant Standards | Battery Charging 1.2 |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 7680 x 4320 - 60 Hz (Dual Display) ¦ 3810 x 2160 - 240 Hz (Triple Display) |
| System Requirements | |
| OS Required | Windows 11, Windows 11 (on ARM), Apple macOS Sequoia 15.0, Apple macOS Tahoe 26 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.8 in |
| Shipping Depth | 11.7 in |
| Shipping Height | 4.4 in |
| Shipping Weight | 3.31 lbs |
