Wireless router - mesh - WWAN 4-port switch - 1GbE - Wi-Fi 5 - Dual Band - 5G, 4G, 3G, 2G - DIN rail mountable, wall-mountable, surface-mountable - for P/N: BAT120000000, PR1KC647, PR1KCI49, PR1KS536, PR1US540, PR2PP10B, PR3PXAU3, PR4MK04K
| Main Specifications | |
|---|---|

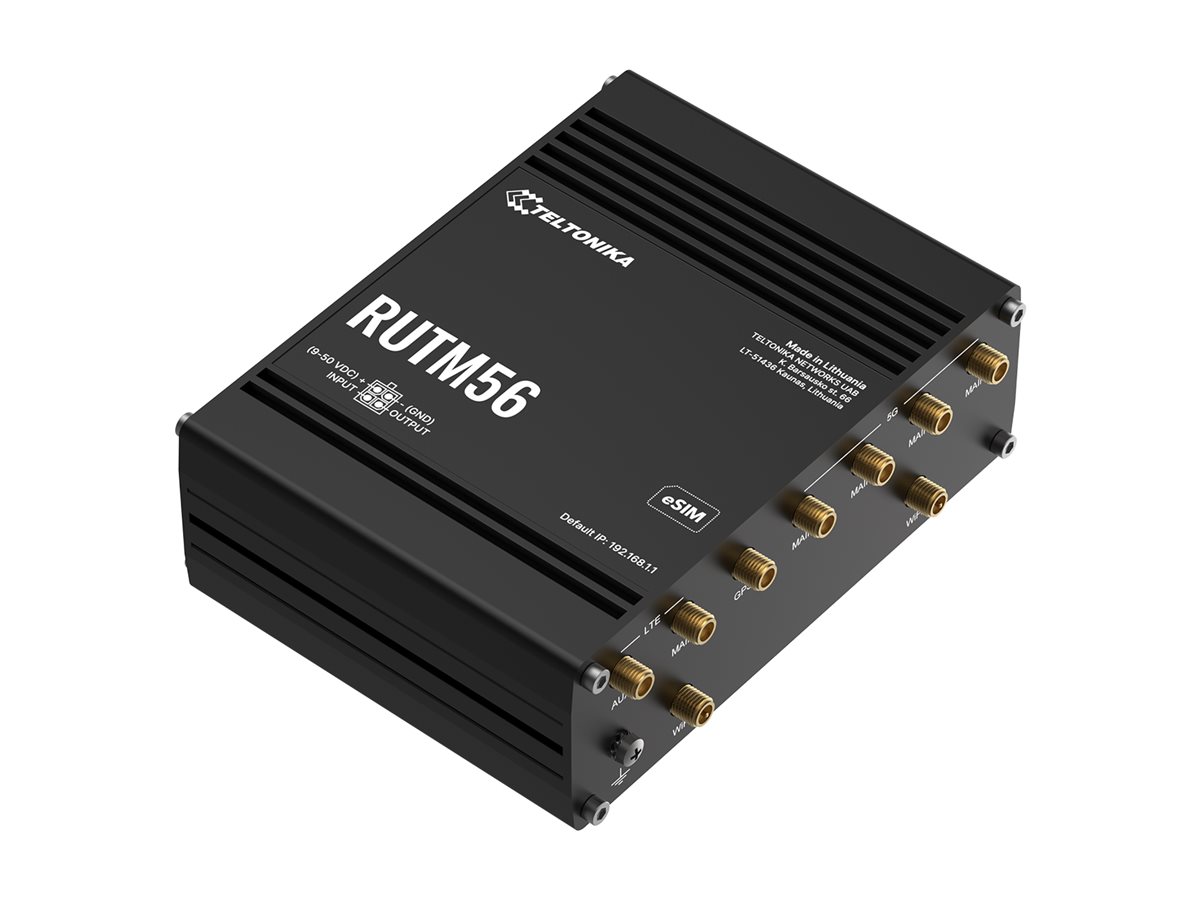

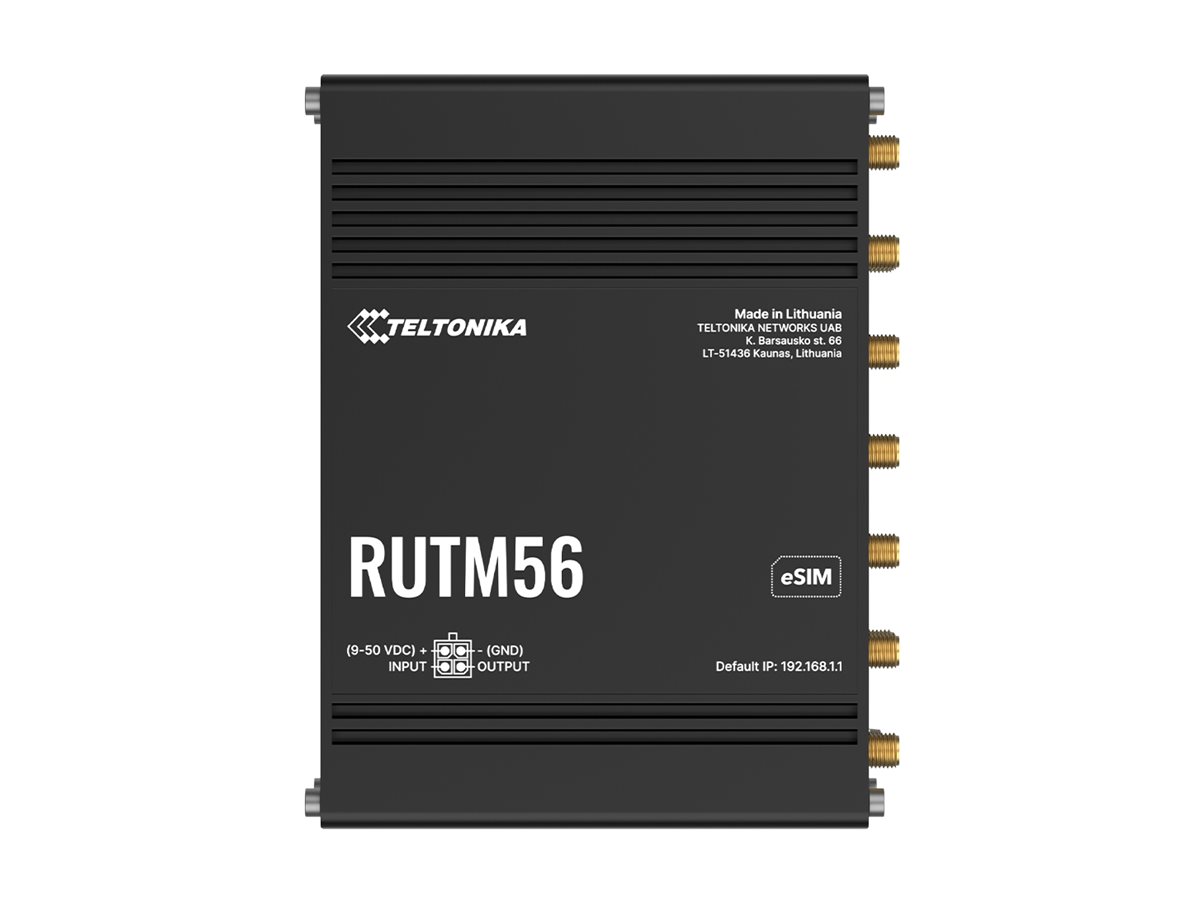

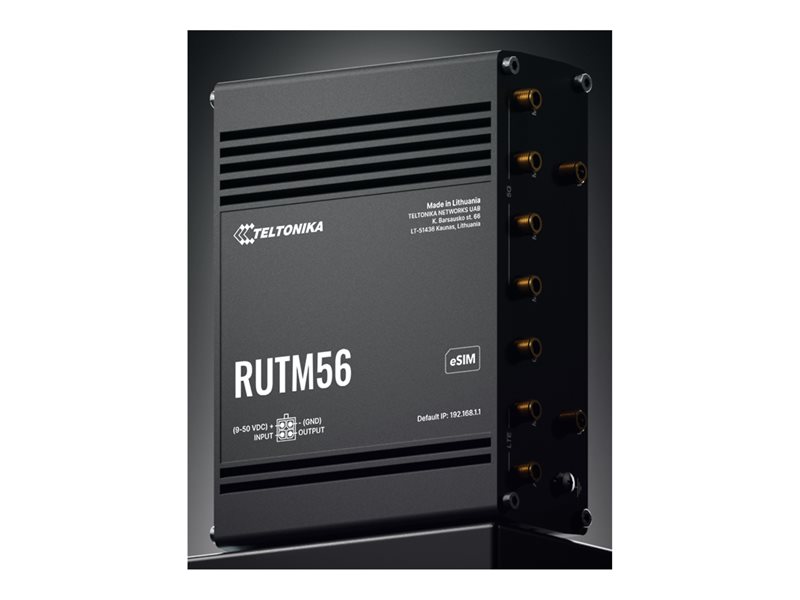

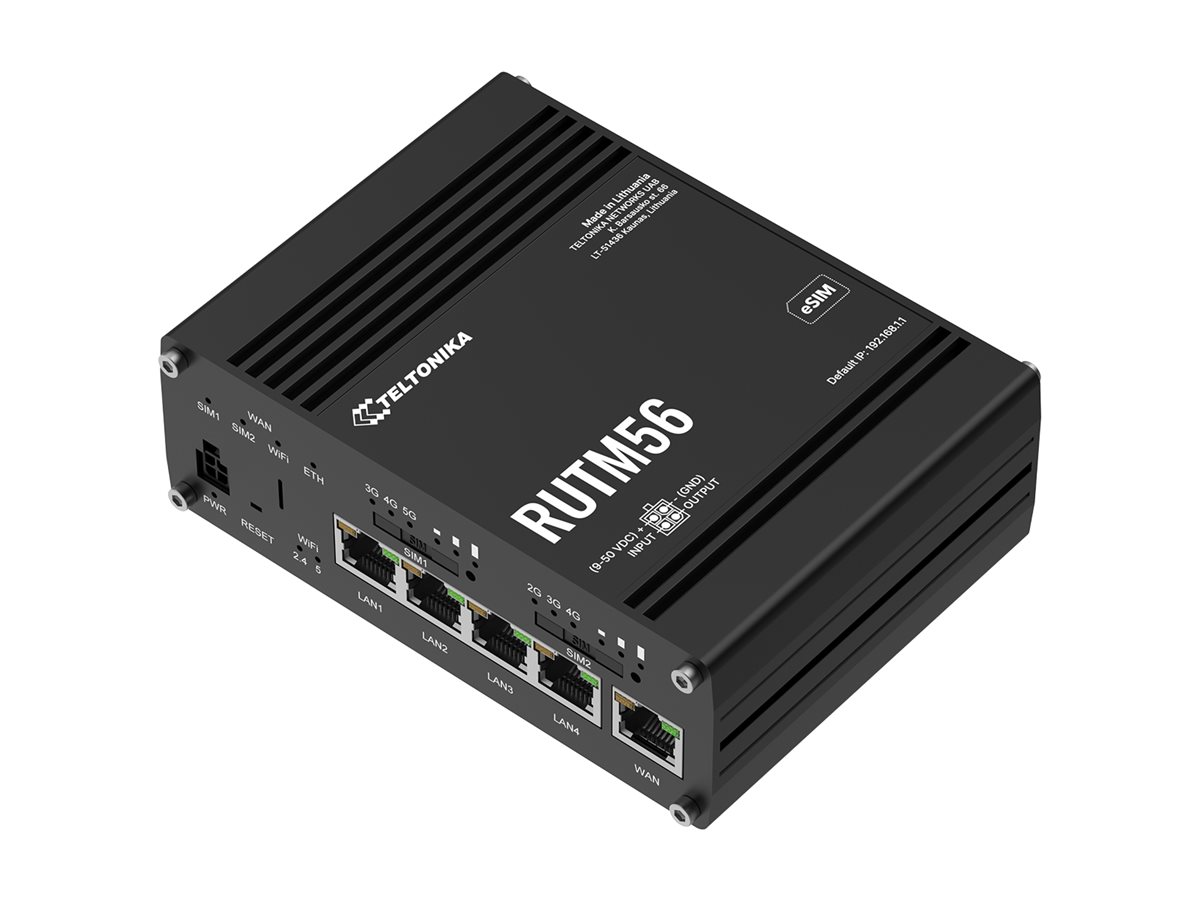

| Product Description | Teltonika RUTM56 - wireless router - WWAN - Wi-Fi 5 - 5G, 4G, 3G, 2G - DIN rail mountable, wall-mountable, surface-mountable |
| Device Type | Wireless router - mesh - wireless cellular modem - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
| Cellular Protocol | FDD LTE, TDD LTE, 5G NR, HSPA+, UMTS, 5G Sub-6 Ghz |
| Generation | 5G, 4G, 3G, 2G |
| Cellular Band | 5G n1, 5G n20, 5G n28, 5G n3, 5G n38, 5G n40, 5G n41, 5G n5, 5G n7, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n8, HSPA+ B1, HSPA+ B5, HSPA+ B8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B5, LTE B7, LTE B71, LTE B8, UMTS B3, UMTS B8 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 867 Mbps |
| Capacity | Maximum WiFi user capacity: 150 |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, ICMP/IP, SMTP, ARP, PPPoE, DHCP, PPTP, L2TPv3, IPSec, WireGuard |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, VXLAN, GRE |
| Platform | ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core |
| Remote Management Protocol | ICMP, HTTP, HTTPS, SSH, Telnet, SMPP, MQTT, DDNS, CLI, SNMP 1, SNMP 2, SNMP 3, TR-069, JSON-RPC, SMTP |
| VoIP Protocols | H.323, SIP |
| Features | 4x4 MIMO technology, 2x2 MIMO technology, 3GPP Release 9, 3GPP Release 16, eSIM support, SMS remote control, USSD support, allow/block list, multiple PDN, band management, auto APN, bridge mode, framed routing, protected management frames, Access Point operational mode, station operational mode, ESSID stealth mode, MAC address filtering, wireless QR code generator, Fast Roaming, BSS transition management, TravelMate, auto-uplink (auto MDI/MDI-X), DHCP relay, DHCP server, QoS, SQM, DNS over HTTPS, VRF, traffic management, port mirroring, DDos attack prevention, VLAN support, mobile quota control, Web Filtering, TPM 2.0, SSL certificate generation, L2TP over IPSec, DMVPN, SSTP client instance support, ZeroTier VPN client support, Tinc encryption, Tailscale encryption, DLMS support, Teltonika RMS, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support, reverse polarity protection, surge protection, reset button, ground points, anodized aluminum housing |
| Compliant Standards | IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11r, IEEE 802.11w, IEEE 802.11k, IEEE 802.11s, IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Dimensions (WxDxH) | 5.2 in x 3.7 in x 1.7 in |
| Weight | 18.16 oz |
| Localization | EMEA (excluding Belarus, Iran, Russia), Asia Pacific, Brazil |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: BAT120000000, PR1KC647, PR1KCI49, PR1KCL25, PR1KCO28, PR1KS536, PR1US540, PR2AM20M, PR2PD01B, PR2PP10B, PR3PXAU3, PR4MK04K, PR5MEC21 |
| General | |
| Device Type | Wireless router - mesh - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 867 Mbps |
| Capacity | Maximum WiFi user capacity: 150 |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, ICMP/IP, SMTP, ARP, PPPoE, DHCP, PPTP, L2TPv3, IPSec, WireGuard |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, VXLAN, GRE |
| Remote Management Protocol | ICMP, HTTP, HTTPS, SSH, Telnet, SMPP, MQTT, DDNS, CLI, SNMP 1, SNMP 2, SNMP 3, TR-069, JSON-RPC, SMTP |
| Encryption Algorithm | WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, TLS, SSL 3.0, DES, RC2, DESX, Blowfish, CAST5, 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2 |
| Authentication Method | X.509 certificates, TACACS+, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Mesh Networking | Yes |
| Features | 4x4 MIMO technology, 2x2 MIMO technology, 3GPP Release 9, 3GPP Release 16, eSIM support, SMS remote control, USSD support, allow/block list, multiple PDN, band management, auto APN, bridge mode, framed routing, protected management frames, Access Point operational mode, station operational mode, ESSID stealth mode, MAC address filtering, wireless QR code generator, Fast Roaming, BSS transition management, TravelMate, auto-uplink (auto MDI/MDI-X), DHCP relay, DHCP server, QoS, SQM, DNS over HTTPS, VRF, traffic management, port mirroring, DDos attack prevention, VLAN support, mobile quota control, Web Filtering, TPM 2.0, SSL certificate generation, L2TP over IPSec, DMVPN, SSTP client instance support, ZeroTier VPN client support, Tinc encryption, Tailscale encryption, DLMS support, Teltonika RMS, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support, reverse polarity protection, surge protection, reset button, ground points, anodized aluminum housing |
| Compliant Standards | IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11r, IEEE 802.11w, IEEE 802.11k, IEEE 802.11s, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, NMEA, IP30, UKCA, EAC, EUCRF, WEEE |
| Processor | 1 x MediaTek MIPS 1004Kc 880 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Built-in Devices | 16 MB NOR flash |
| Status Indicators | WAN, 5G, 4G, 3G, 2G, SIM1, SIM2, Wi-Fi, LAN |
| Expansion / Connectivity | |

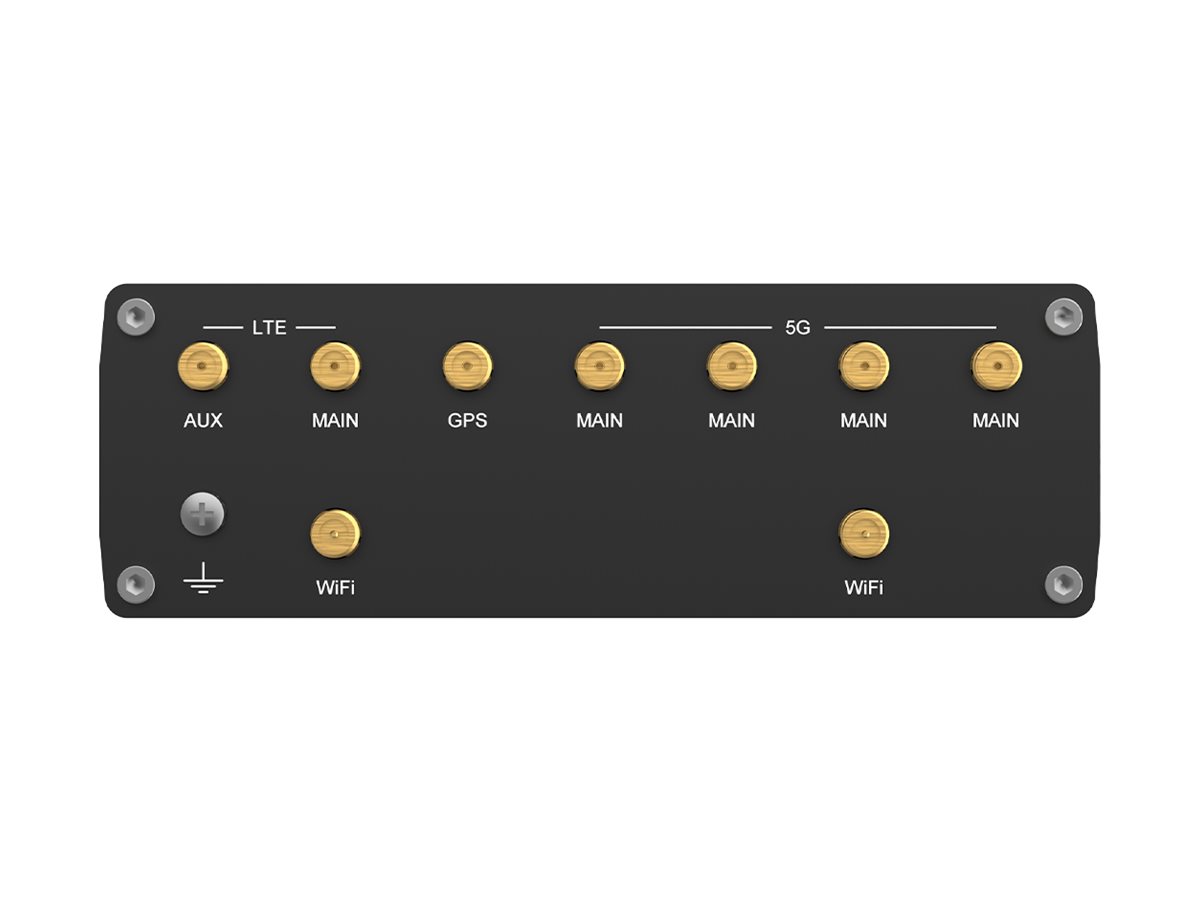

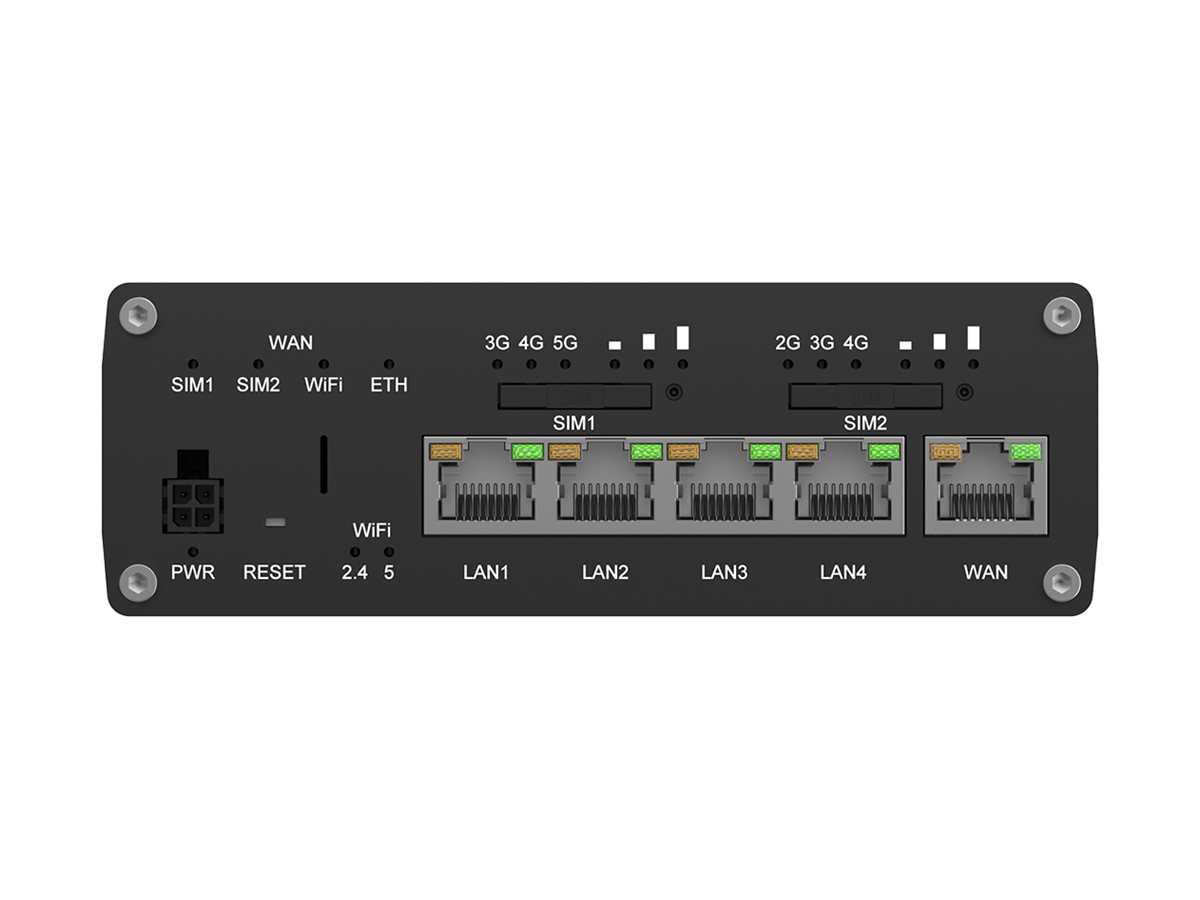

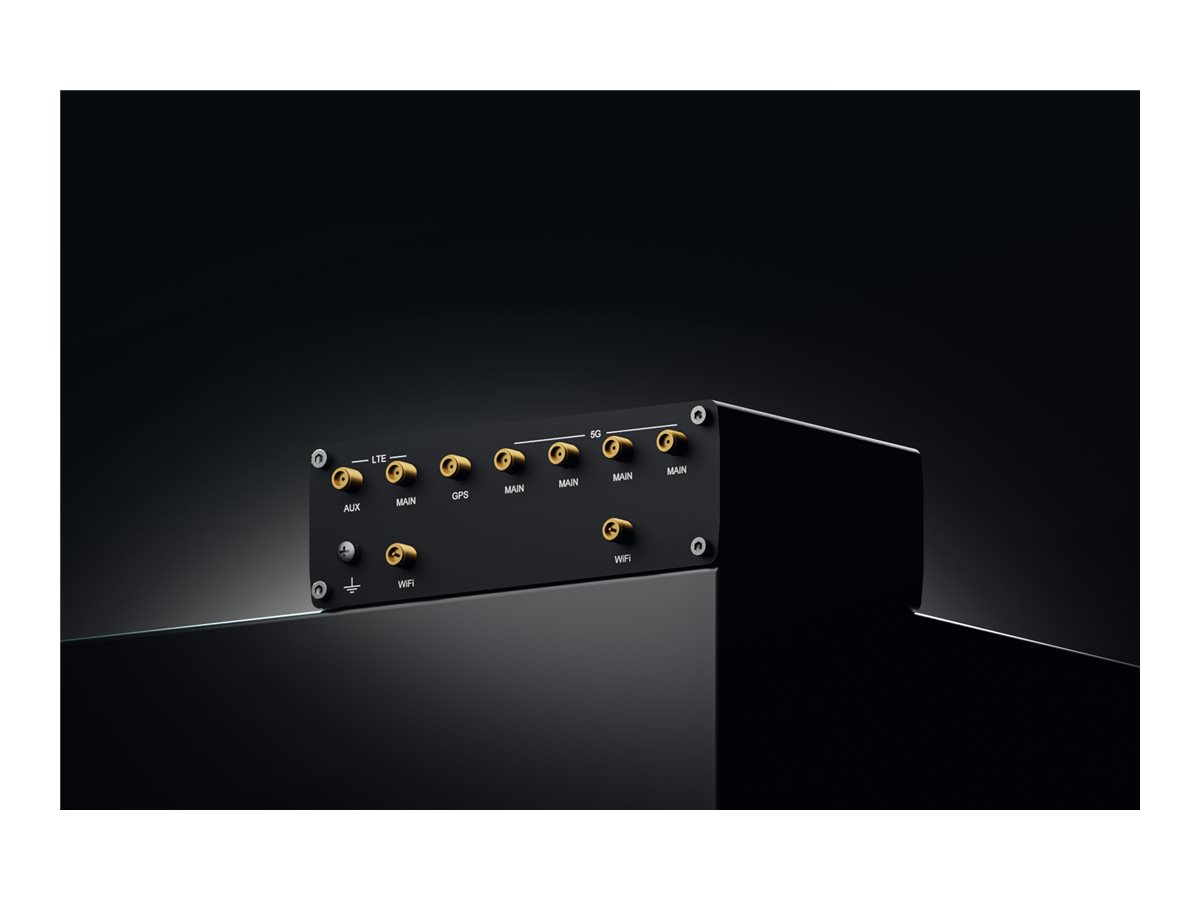

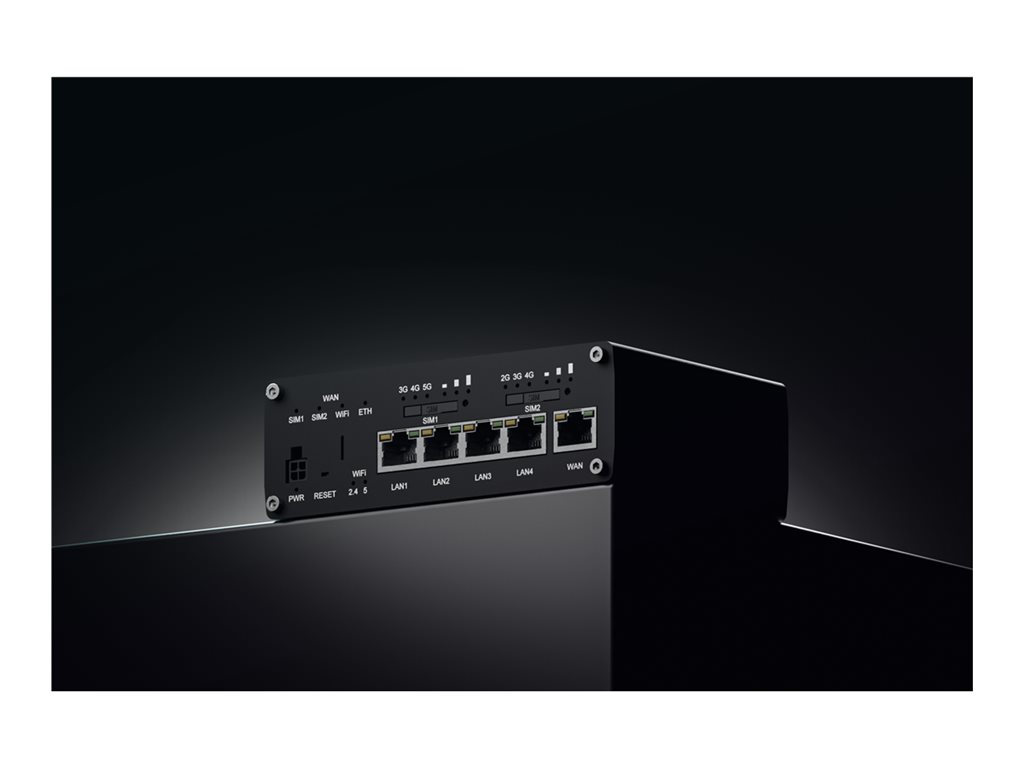

| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x DI/DO - 4 pin ¦ Antenna: 2 x RP-SMA - Wi-Fi ¦ Antenna: 6 x SMA - mobile ¦ Antenna: 1 x SMA - GNSS antenna |
| Expansion Slots | 2 (total) / 2 (free) x SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 6 x cellular antennas, 2 x Wi-Fi antennas, GNSS antenna, SIM card adapter kit |
| Cables Included | 1 x network cable - 5 ft |
| Localization | EMEA (excluding Belarus, Iran, Russia), Asia Pacific, Brazil |
| Power | |
| Power Device | External power adapter - 24 watt |
| Software / System Requirements | |
| OS Provided | RutOS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Communications | |
| Type | 2 x wireless cellular modem |
| Cellular Protocol | FDD LTE, TDD LTE, 5G NR, HSPA+, UMTS, 5G Sub-6 Ghz |
| Generation | 5G, 4G, 3G, 2G |
| Cellular Band | 5G n1, 5G n20, 5G n28, 5G n3, 5G n38, 5G n40, 5G n41, 5G n5, 5G n7, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n8, HSPA+ B1, HSPA+ B5, HSPA+ B8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B5, LTE B7, LTE B71, LTE B8, UMTS B3, UMTS B8 |
| Max Transfer Rate | 3.4 Gbps |
| Dimensions & Weight | |
| Width | 5.2 in |
| Depth | 3.7 in |
| Height | 1.7 in |
| Weight | 18.16 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 9 |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Compatibility Information | |
| Designed For | P/N: BAT120000000, PR1KC647, PR1KCI49, PR1KCL25, PR1KCO28, PR1KS536, PR1US540, PR2AM20M, PR2PD01B, PR2PP10B, PR3PXAU3, PR4MK04K, PR5MEC21 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core |
| Communications Technology | LTE Cat 19, LTE Cat 18 |
