Wireless router - mesh - WWAN 2-port switch - 5G, LTE - 4G, 5G - DIN rail mountable, wall-mountable, surface-mountable
| Main Specifications | |
|---|---|

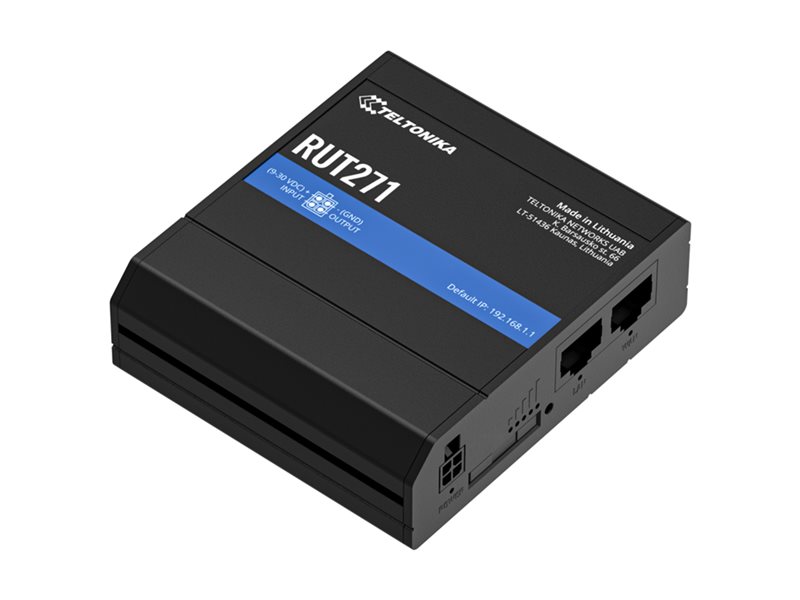

| Product Description | Teltonika RUT271 - wireless router - WWAN - Wi-Fi - 4G, 5G - DIN rail mountable, wall-mountable, surface-mountable |
| Device Type | Wireless router - mesh - wireless cellular modem - 2-port switch (integrated) |
| Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
| Cellular Protocol | 5G Sub-6 Ghz, 4G LTE |
| Generation | 4G, 5G |
| Cellular Band | LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B30, LTE B66, LTE B70, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, 5G, LTE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Capacity | Simultaneous connections: 50 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, DDNS |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN |
| Remote Management Protocol | TLS, SSH, SMPP, SNMP, MQTT, JSON-RPC |
| VoIP Protocols | H.323, SIP |
| Features | WAN failover, 3GPP Release 17, USSD support, multiple PDN, band management, SIM PIN management, white list, black list, auto APN, LAN pass-through, Access Point operational mode, 802.1x authentication, ESSID stealth mode, Wireless Mesh support, Fast Roaming, BSS transition management, RRM, MAC address filtering, auto-uplink (auto MDI/MDI-X), static routing, dynamic routing, PPP, UPnP, WOL, schedule reboot, DHCP support, QoS, SQM, DDNS, AP hotspot, SSHFS support, DDoS Protection, SYN Flooding, port-based VLAN, OpenVPN encryption, GRE tunneling, IPSec passthrough, DMVPN, SSTP client instance support, ZeroTier VPN client support, WireGuard, Tinc encryption, MQTT support, DNP3 station, DNP3 outstation, DLMS support, FOTA, Teltonika RMS, TR-069 Remote Management, LED status indicators, reset button, aluminum housing, reverse polarity protection, surge protection, cardboard box packaging |
| Compliant Standards | IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Power | DC 9 - 30 V |
| Dimensions (WxDxH) | 3.3 in x 2.9 in x 1 in |
| Weight | 4.59 oz |
| General | |
| Device Type | Wireless router - mesh - 2-port switch (integrated) |
| Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, 5G, LTE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Capacity | Simultaneous connections: 50 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, DDNS |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN |
| Remote Management Protocol | TLS, SSH, SMPP, SNMP, MQTT, JSON-RPC |
| Encryption Algorithm | WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, PMF, MODBUS, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, IKEv1, IKEv2 |
| Authentication Method | X.509 certificates, TACACS+, RADIUS |
| Mesh Networking | Yes |
| Features | WAN failover, 3GPP Release 17, USSD support, multiple PDN, band management, SIM PIN management, white list, black list, auto APN, LAN pass-through, Access Point operational mode, 802.1x authentication, ESSID stealth mode, Wireless Mesh support, Fast Roaming, BSS transition management, RRM, MAC address filtering, auto-uplink (auto MDI/MDI-X), static routing, dynamic routing, PPP, UPnP, WOL, schedule reboot, DHCP support, QoS, SQM, DDNS, AP hotspot, SSHFS support, DDoS Protection, SYN Flooding, port-based VLAN, OpenVPN encryption, GRE tunneling, IPSec passthrough, DMVPN, SSTP client instance support, ZeroTier VPN client support, WireGuard, Tinc encryption, MQTT support, DNP3 station, DNP3 outstation, DLMS support, FOTA, Teltonika RMS, TR-069 Remote Management, LED status indicators, reset button, aluminum housing, reverse polarity protection, surge protection, cardboard box packaging |
| Compliant Standards | IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, SSL v3, IP30, FCC, ISED, CB, WEEE |
| Processor | 1 x MediaTek MIPS 24Kec 580 MHz |
| RAM | 128 MB DDR2 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Connection status, signal strength, LAN, power |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x DI ¦ 1 x DO ¦ Antenna: 2 x SMA - mobile ¦ Antenna: 1 x RP-SMA - Wi-Fi |
| Expansion Slots | 1 (total) / 1 (free) x Mini-SIM |
| Miscellaneous | |
| Included Accessories | 2 x 5G antennas, Wi-Fi antenna, SIM card adapter kit, power adapter |
| Cables Included | 1 x network cable - 5 ft |
| Power | |
| Power Device | External power adapter - 9 watt |
| Voltage Required | DC 9 - 30 V |
| Power Consumption Operational | 1.5 watt |
| Software / System Requirements | |
| OS Provided | RutOS |
| Software Included | Web UI |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | 5G Sub-6 Ghz, 4G LTE |
| Generation | 4G, 5G |
| Cellular Band | LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B30, LTE B66, LTE B70, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79 |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 2.9 in |
| Height | 1 in |
| Weight | 4.59 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
