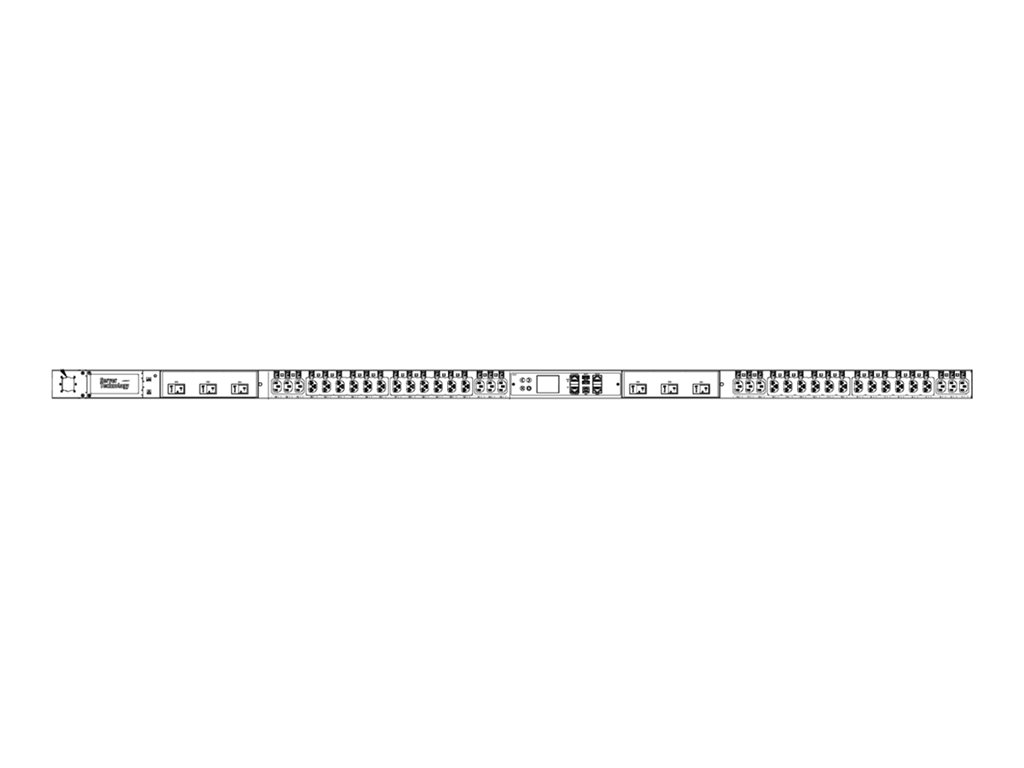

Power distribution unit (rack-mountable) - AC 415 V - 17.3 kW - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+G 6Hr - output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx)
| Main Specifications | |
|---|---|
| Product Description | Server Technology PRO4X Switched PDU C4W36RA-GPBD2FE1 - power distribution unit - 17.3 kW |
| Device Type | Power distribution unit - rack-mountable |
| Input Voltage | AC 415 V |
| Output Voltage | AC 208/230 V |
| Power Capacity | 17.3 kW |
| Input Connectors | 1 x power IEC 60309 3P+N+G 6Hr |
| Output connectors | 12 x power IEC 60320 C13 - 208 V 12 A ¦ 24 x power IEC 60320 Cx - 208 V 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, TLS 1.2, SSH-2, Telnet, SNMP 3, SNMP 2c, IPv4, IPv6, LDAP 3.0, LDAPS, RADIUS, TACACS+, SFTP |
| Dimensions (WxDxH) | 2.2 in x 2.5 in x 6 ft |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x RS-232 - RJ-45 ¦ 2 x sensor ¦ 1 x PDU link - RJ-12 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Features | High Density Outlet Technology (HDOT), environmental sensor ready, cascadable, outlet control, 45° angled infeed, LCD display, multi-color outlet LEDs, Per Input Power Sensing (PIPS), current monitoring, voltage monitoring, power measuring, apparent power meter, crest factor meter, power factor meter, energy meter, alternating-phase outlets, Branch Circuit Protection |
| Compliant Standards | UL 489, UL 62368-1, CSA C22.2 No. 62368-1, ICES-003 Class A, FCC Part 15 B Class A, IEC/EN 62368-1, IEC 62368-1, EMC, EN 55032, CISPR 32, EN 55035, CISPR 35, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3, ROHS Directive 2011/65/EU, LVD 2014/35/EU, EMCD 2014/30/EU, UKCA, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, TLS 1.2, SSH-2, Telnet, SNMP 3, SNMP 2c, IPv4, IPv6, LDAP 3.0, LDAPS, RADIUS, TACACS+, SFTP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 415 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+G 6Hr |
| Power Output Connectors Details | 12 x power IEC 60320 C13 - 208 V 12 A ¦ 24 x power IEC 60320 Cx - 208 V 16 A |
| Output Voltage | AC 208/230 V |
| Max Electric Current | 20 A |
| Power Capacity | 17.3 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.5 in |
| Height | 6 ft |
