ATX case - extended ATX - no power supply (ATX) - white - USB/Audio
| Main Specifications | |
|---|---|

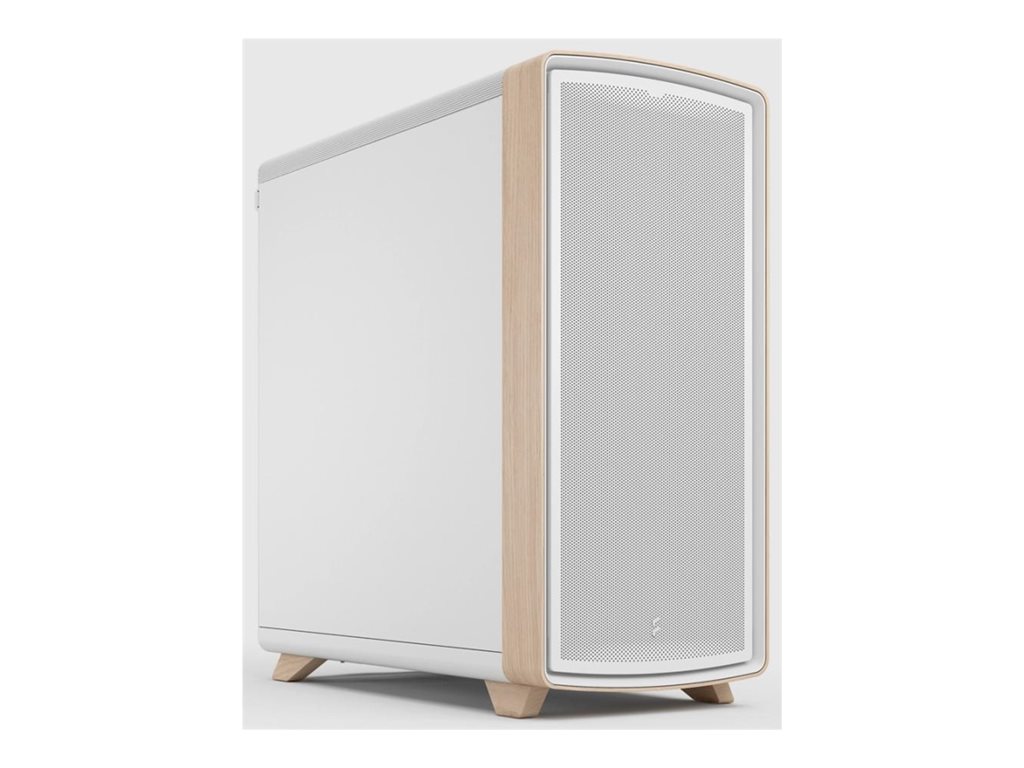

| Product Description | Fractal Design Summit Chalk Solid - ATX case - extended ATX |
| Product Type | System cabinet |
| Form Factor | ATX case |
| Color | White |
| I/O Connectors | 1 x USB 3.2 Gen 2x2 ¦ 2 x USB 3.2 Gen 1 ¦ Headphone/microphone |
| Supported Motherboards | Extended ATX, ATX, microATX, Mini-ITX |
| System Cabinet Features | Support back-connect motherboard, cable management system (34 mm clearance), rubber cable holes grommets, PSU dust filters, ventilated front panel |
| Power Device | No power supply (ATX) |
| Dimensions (WxDxH) | 9 in x 19.5 in x 20.3 in |
| Weight | 21.61 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | ATX case |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | Extended ATX, ATX, microATX, Mini-ITX |
| Internal Bays Qty | 4 |
| Product Material | Steel |
| Color | White |
| Cooling System | Front: 140 mm fan x 3 / 350-1800 rpm / 79.79 cfm / 31.9 dBA / 3 x 120/140 mm fan or 120/240/280/360 mm radiator supported ¦ Top: fan mount / 3 x 120 mm or 2 x 140 mm fan supported or 120/240/280/360 mm radiator supported ¦ Rear: fan mount / 1 x 120 mm fan or 1 x 120 mm radiator supported |
| CPU Cooler Max Height | 173 mm |
| Video Card Max Length | 425 mm |
| Power Supply Max Length | 253 mm |
| System Cabinet Features | Support back-connect motherboard, cable management system (34 mm clearance), rubber cable holes grommets, PSU dust filters, ventilated front panel |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" ¦ 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 7 |
| Interfaces | 1 x USB 3.2 Gen 2x2 - USB-C ¦ 2 x USB 3.2 Gen 1 ¦ Headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Accessory box |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Width | 9 in |
| Depth | 19.5 in |
| Height | 20.3 in |
| Weight | 21.61 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.8 in |
| Shipping Depth | 23.4 in |
| Shipping Height | 24.4 in |
| Shipping Weight | 26.01 lbs |
