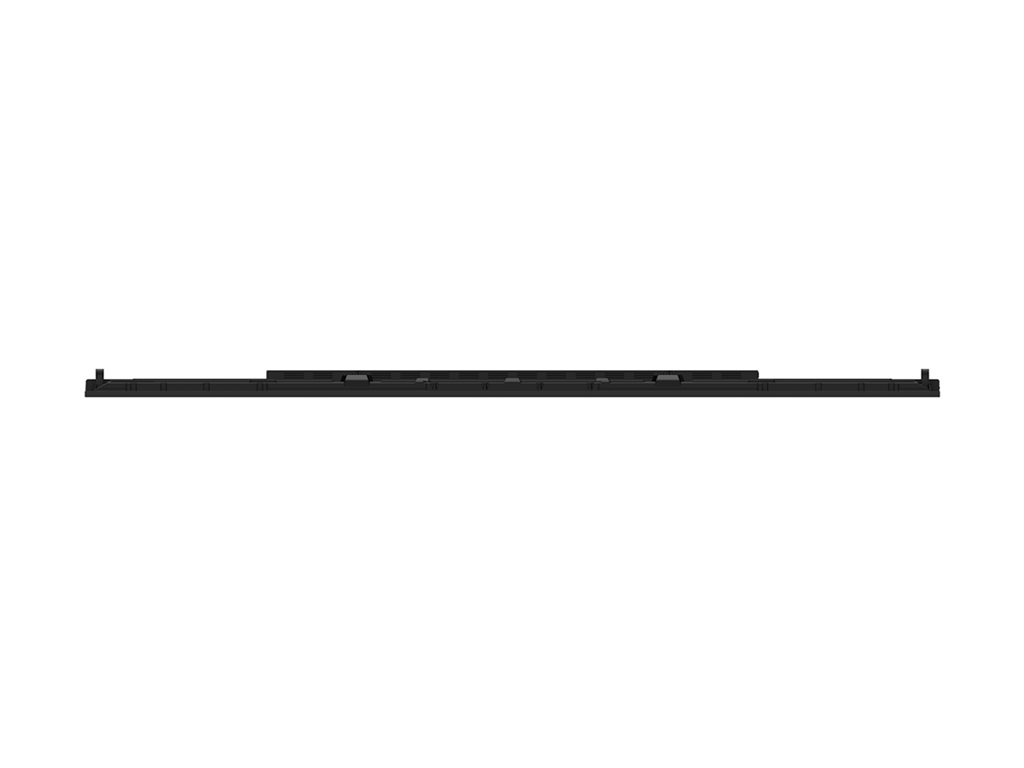

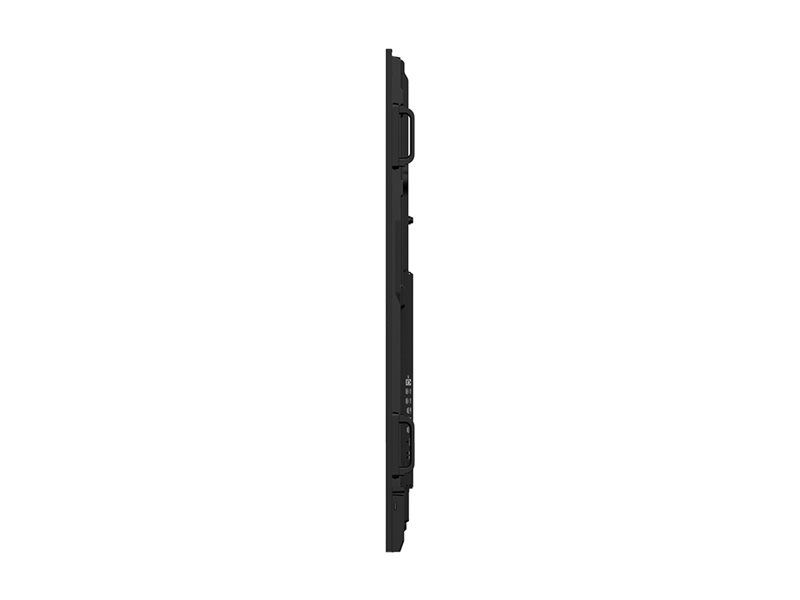

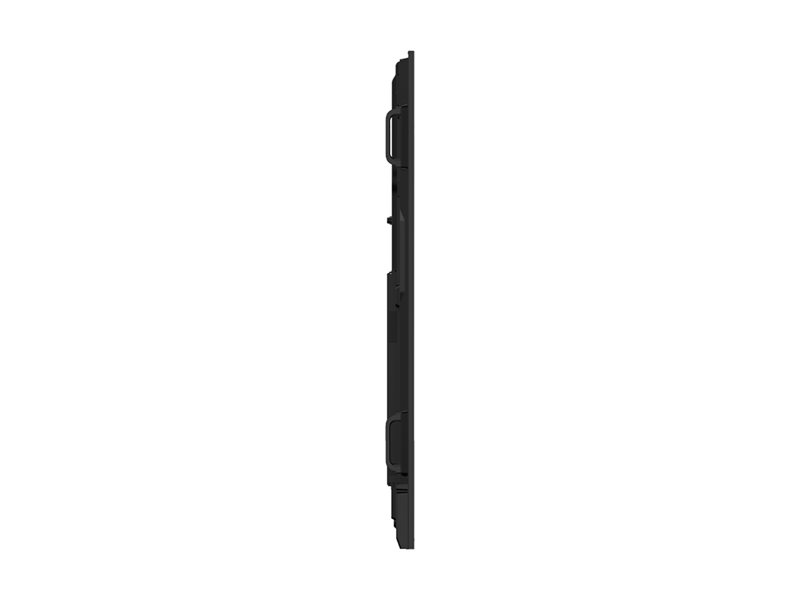

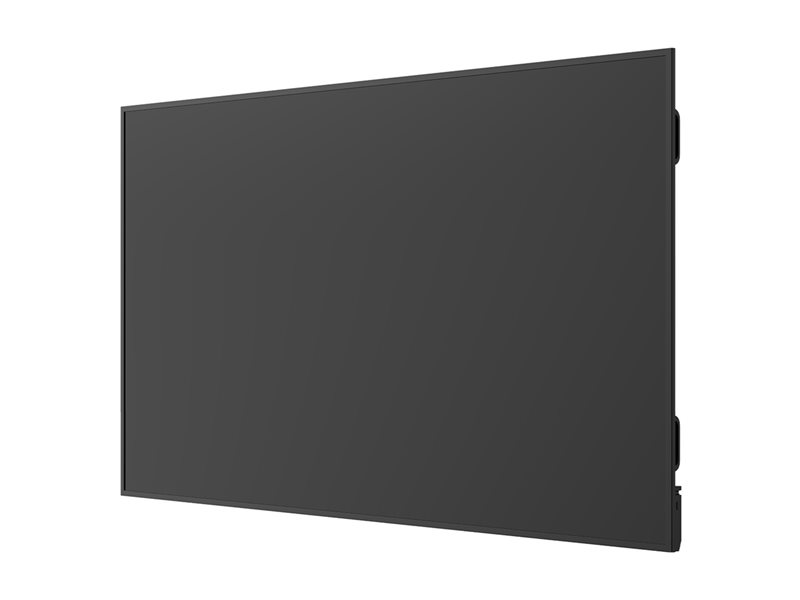

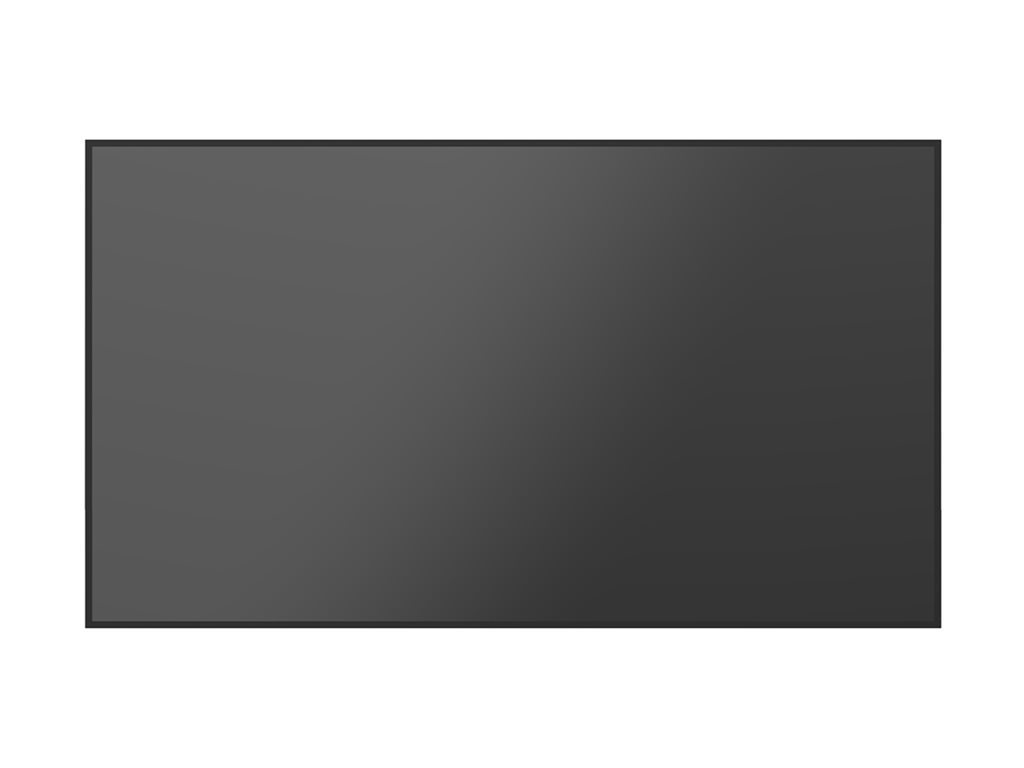

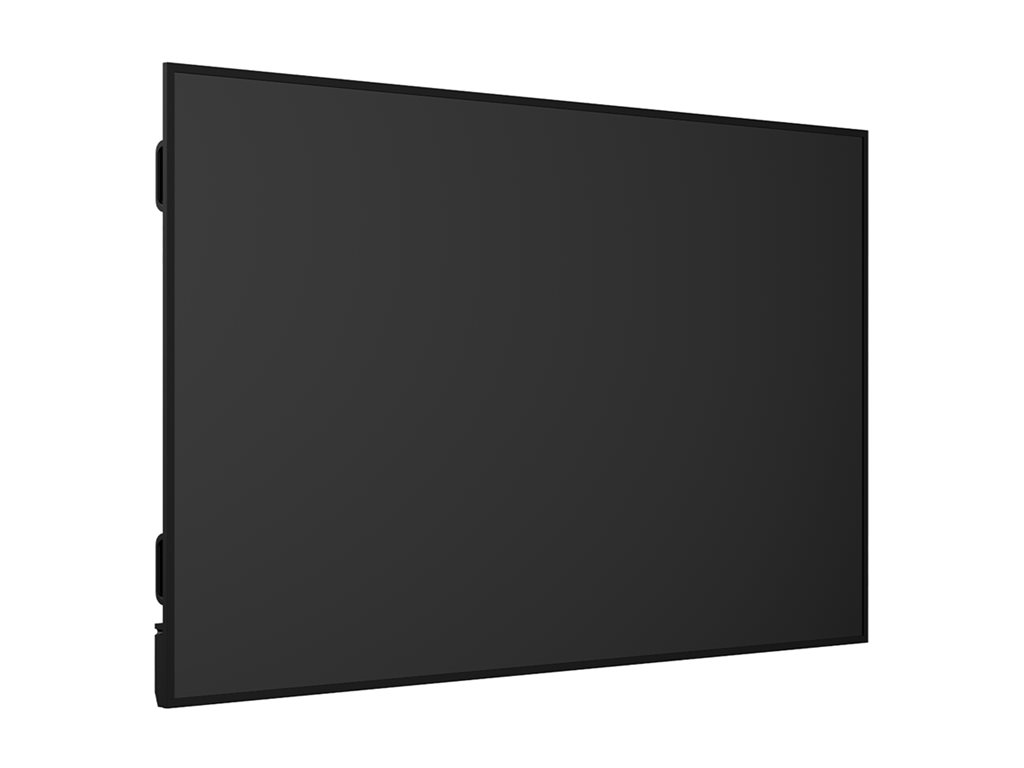

110" Diagonal Class UH5Q Series LED-backlit LCD display - digital signage with Integrated Pro:Idiom - webOS - 4K UHD (2160p) 3840 x 2160 - Direct LED - black
| Main Specifications | |
|---|---|
| Product Description | LG 110UH5Q-H UH5Q Series - 110" with Integrated Pro:Idiom LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Diagonal Class | 110" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Platform | webOS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 120 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| Technology | ADS |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | SuperSign Cloud, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign WB compatible, Mobile CMS, LG ConnectedCare, conformal coating, Local Key Operation, Local Contents Scheduling, Group Manager, FailOver, booting logo image, No Signal image, Local Network Sync, Video Tag, play via URL, SNMP support, ISM Method, Auto Set ID, Control Manager, Crestron Connected Certified, Network Ready, SI Server Setting, Real Time Communication (webRTC) |
| Settings Cloning Capability | Yes |
| Picture Enhancements | 95% BT.709 color gamut, 68% Color Gamut NTSC |
| Speaker System | 2 speakers |
| Storage Capacity | 8 GB |
| USB | 2 ports |
| Included Accessories | Remote control, phone to RS232C gender |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 369 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 97.7 in x 2.7 in x 55.5 in |
| Weight | 142.09 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Power Consumption (Max) | 502 watt |
| Power Consumption Operational | 369 watt |
| Diagonal Class | 110" |
| Commercial Use | Yes - digital signage |
| Series | UH5Q Series |
| Platform | webOS |
| Operating System | webOS 6.1 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Temperature sensor, auto brightness sensor, acceleration sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Modes | Landscape mode, portrait mode, Tile Mode, PM mode |
| Picture Enhancements | 95% BT.709 color gamut, 68% Color Gamut NTSC |
| Design | Slim Design |
| Dimensions | Without stand |
| Width | 97.7 in |
| Depth | 2.7 in |
| Height | 55.5 in |
| Weight | 142.09 lbs |
| Enclosure Color | Black |
| Miscellaneous | |
| Included Accessories | Phone to RS232C gender |
| Compliant Standards | EMC Class B, IEC 62368-1:2018, UL 62368-1:2019, FCC Class B certified, RCM, Plug and Play, HDCP 2.2, HDCP 1.4, CEC |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Power Consumption (Off Mode) | 0.5 watt |
| Heat Generation Details | Cabinet - max - 1712.9 BTU/h ¦ Cabinet - typical - 1259.1 BTU/h |
| Features | Smart energy saving, WOL (Wake on LAN) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% |
| Display | |
| LCD Display Technology | ADS |
| LED Lifetime | 50000 hours |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 120 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | 25% haze |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Display Menu Language | Multilingual |
| Commercial Features | SuperSign Cloud, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign WB compatible, Mobile CMS, LG ConnectedCare, conformal coating, Local Key Operation, Local Contents Scheduling, Group Manager, FailOver, booting logo image, No Signal image, Local Network Sync, Video Tag, play via URL, SNMP support, ISM Method, Auto Set ID, Control Manager, Crestron Connected Certified, Network Ready, SI Server Setting, Real Time Communication (webRTC) |
| Settings Cloning Capability | Yes |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 10-bit support, picture-by-picture (PBP), picture-in-picture (PIP), Cisco Certified, BEACON technology |
| Connections | |
| Connector Type | 3 x HDMI input ¦ RS-232C input ¦ LAN input ¦ 2 x USB 2.0 ¦ Audio output ¦ RS-232C output |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Additional Features | Audio Return Channel (ARC) |
| Speakers | 2 x speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 104.7 in |
| Depth (Shipping) | 11 in |
| Height (Shipping) | 63 in |
| Weight (Shipping) | 227.18 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Connect & Share | Screen Share |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 8 GB |
