NAS server - 8 bays - rack-mountable - SATA 6Gb/s - RAID JBOD, 0, 1, 5, 6, 10 - RAM 4 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 2U
| Main Specifications | |
|---|---|

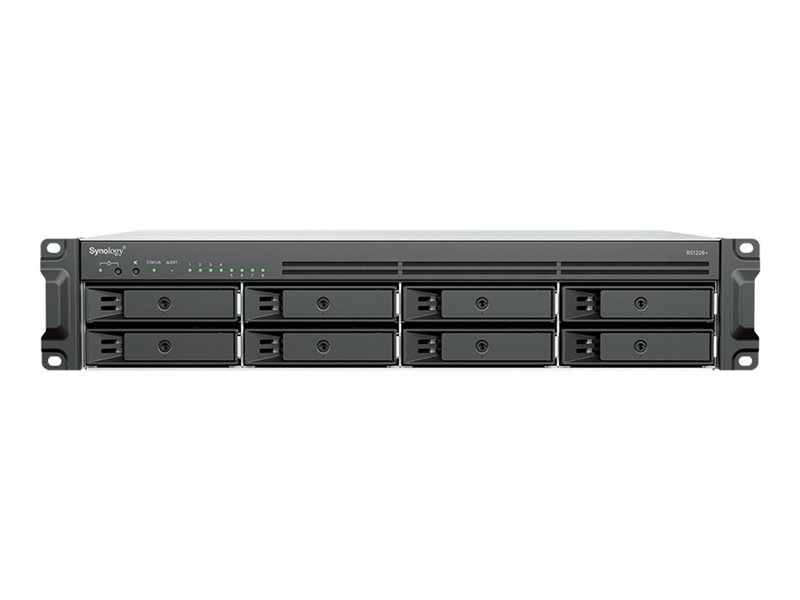

| Product Description | Synology RackStation RS1226RP+ - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Dimensions (WxDxH) | 19 in x 15.7 in x 3.5 in |
| Weight | 19.62 lbs () |
| Processor | 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core) |
| Storage Controller | RAID SATA 6Gb/s RAID JBOD, 0, 1, 5, 6, 10 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| IP Cameras Supported | 40 |
| RAM | 4 GB |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 TB |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Width | 19 in |
| Depth | 15.7 in |
| Height | 3.5 in |
| Weight | 19.62 lbs () |
| Built-in Devices | 2 x 80 mm fans |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 2 (total) / 2 (free) x M.2 2280 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x expansion port - USB-C ¦ 2 x USB 3.2 Gen 1 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Audible alarm, reset button, scheduled power on/off, wake on LAN |
| Compliant Standards | FCC, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL |
| Included Accessories | Accessory pack, power cable |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Network / Transport Protocol | PPTP, L2TP, iSCSI, FTP, SMB, NFS, HTTP, HTTPs, SMB v2, Telnet, SMB v3 |
| Remote Management Protocol | SNMP, Telnet, SSH, HTTP, HTTPS |
| Network Services Compatibility | Microsoft Active Directory (AD), Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1) |
| Features | Firewall protection, LDAP support, WOL, Syslog support, antivirus analysis, High Availability, video server, POP3 e-mail server, ACL support, RADIUS support, FTP server, e-mail server, reset button, surveillance station, DNS server, VPN Server, Link Aggregation, scheduler, failover protection, Btrfs, NV, file station, EXT4 file system, SSD trim, RAID migration, MailPlus server, hybrid backup sync |
| Encryption Algorithm | AES-NI, SSL, TLS |
| Compliant Standards | DLNA CERTIFIED |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 81.82 watt |
| Power Consumption Stand by | 30.58 watt |
| Power Provided | 550 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 80% RH |
| Sound Emission | 22.8 dBA |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen Embedded V1500B 2.2 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 4 GB (installed) / 32 GB (supported) - DDR4 |
| Features | ECC |
| Security DVR | |
| IP Cameras Supported | 40 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1920x1080, 2048x1536, 2592x1944, 3840x2160 |
