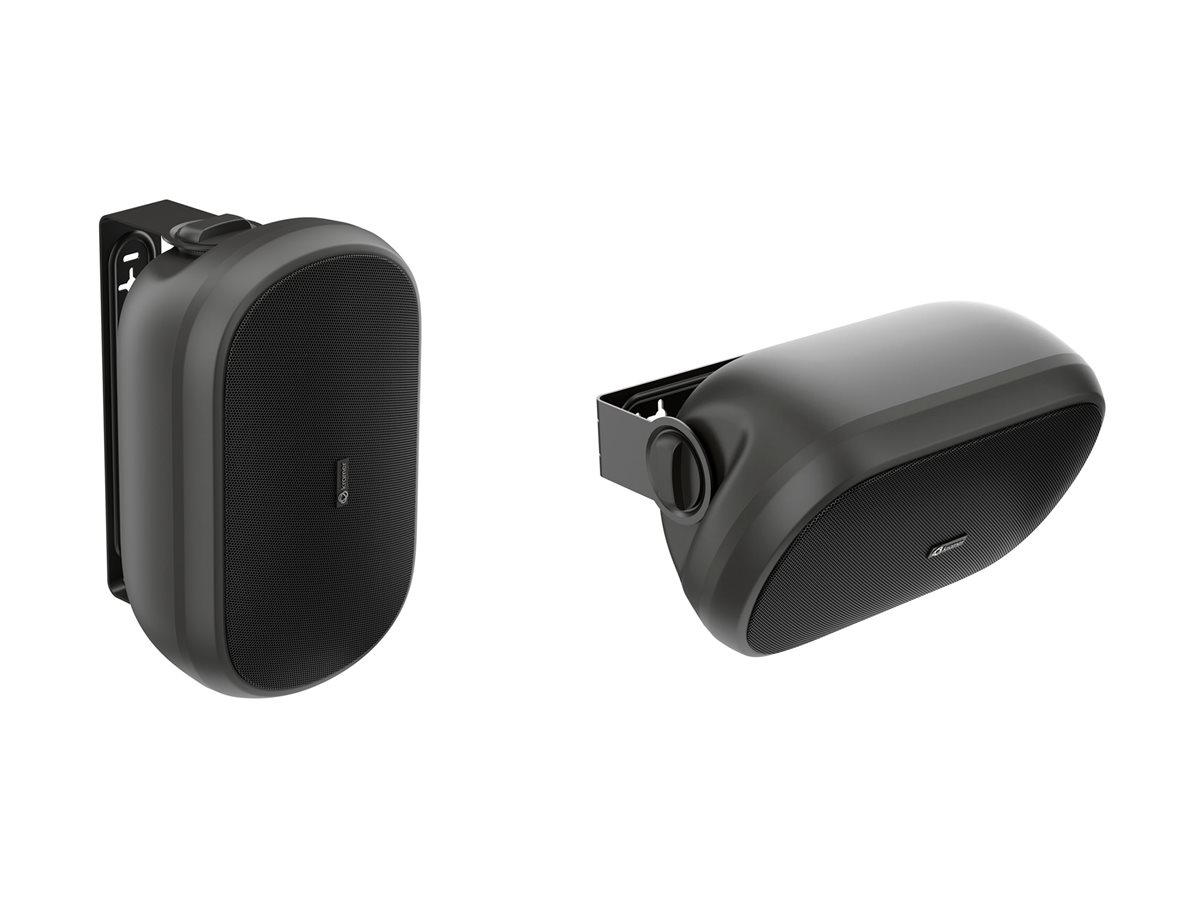

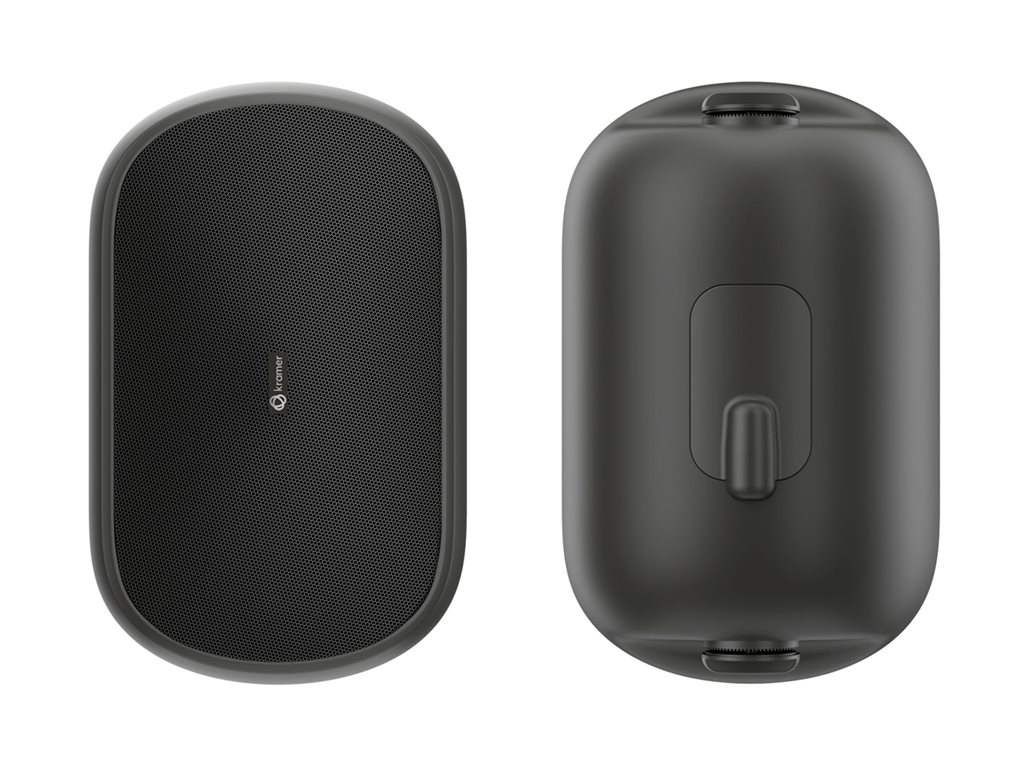

Speaker - for PA system - 10 watt - 2-way - black
| Main Specifications | |
|---|---|
| Product Description | Kramer AW-6D - speaker - for PA system |
| Product Type | Speaker - for PA system |
| Speaker Type | 2-way - active |
| Continuous Power | 10 watt |
| Peak Power | 30 watt |
| Color | Black |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Speaker - for PA system |
| Enclosure Color | Black |
| Enclosure Material | Aluminum, flame retardant plastic |
| Design Features | Removable logo |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Mounting bracket, 2 screws |
| Compliant Standards | IEC 62368-1 CB Scheme, CE/LVD, UL 62368-1, BIS, RCM, FCC, IC, RoHS, REACH, WEEE, IP66 |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 131 °F |
| Humidity Range Operating | 30 - 85% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Speaker with bracket: 7.9 in x 8.1 in x 12.6 in / 6.4 lbs ¦ Speaker: 7.9 in x 6.6 in x 12.6 in |
| Speaker System | |
| Speaker Type | 2-way - active |
| Continuous Power | 10 watt |
| Peak Power | 30 watt |
| Frequency Response (+/-3dB) | 84 - 20000 Hz |
| Frequency Response (-10dB) | 60 - 20000 Hz |
| Max Output Level (Max SPL) | 105 dB |
| Sensitivity | 90 dB |
| Recommended Placing | Wall-mountable, indoor / outdoor |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 6.5" - polypropylene - cone ¦ Speaker: tweeter driver - 1" - dome |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.3 in |
| Shipping Depth | 9.3 in |
| Shipping Height | 15.2 in |
| Shipping Weight | 7.72 lbs |
