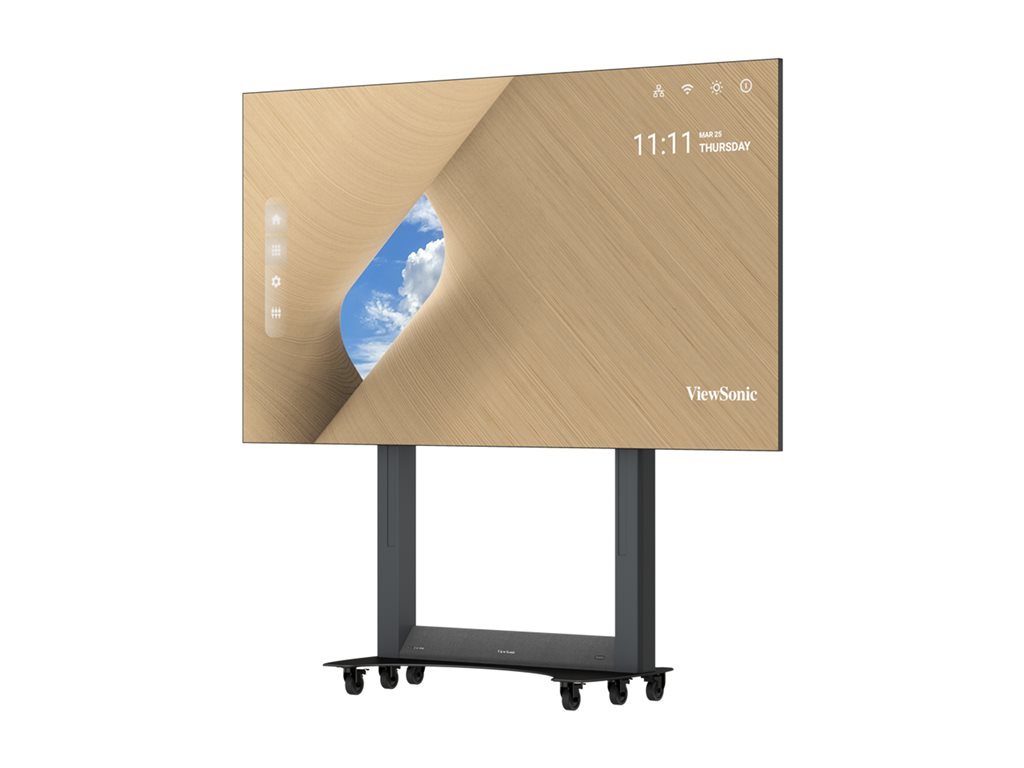

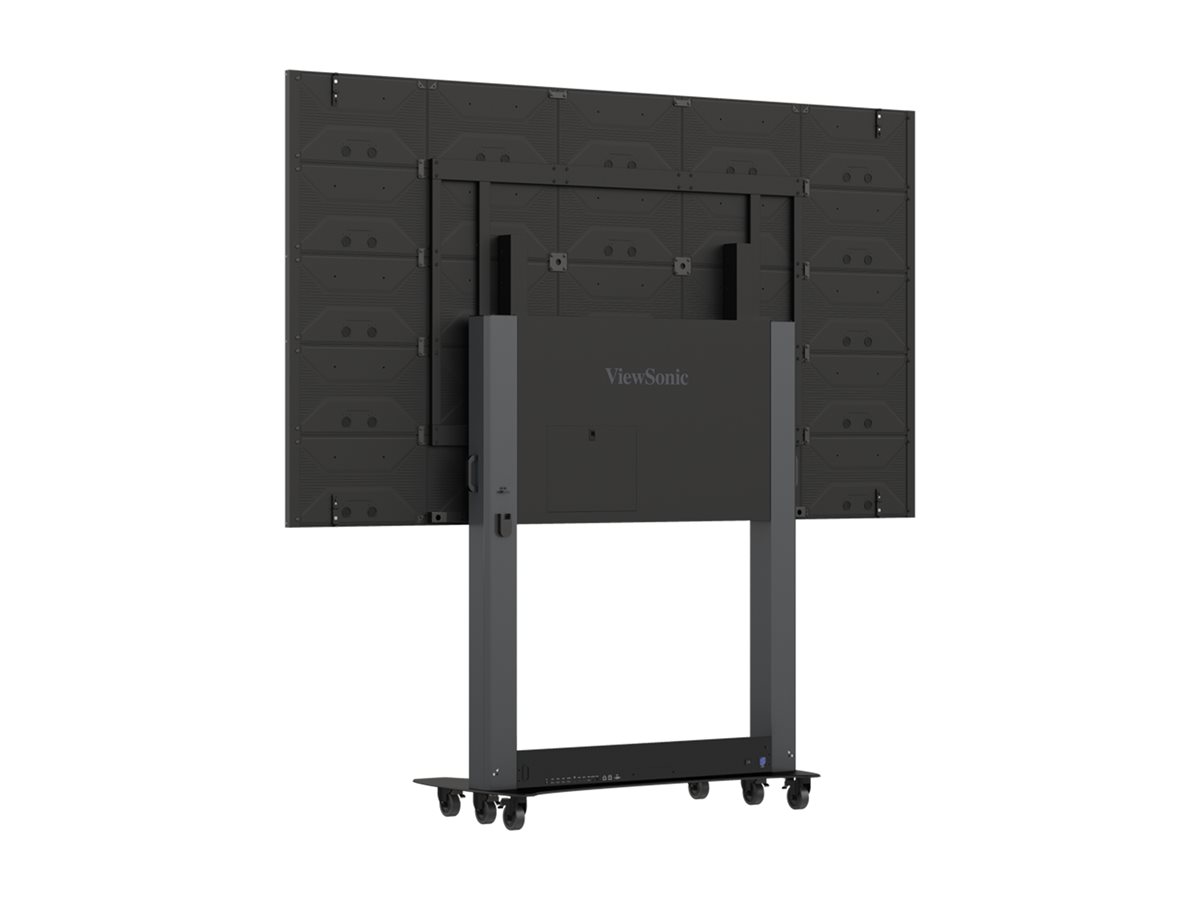

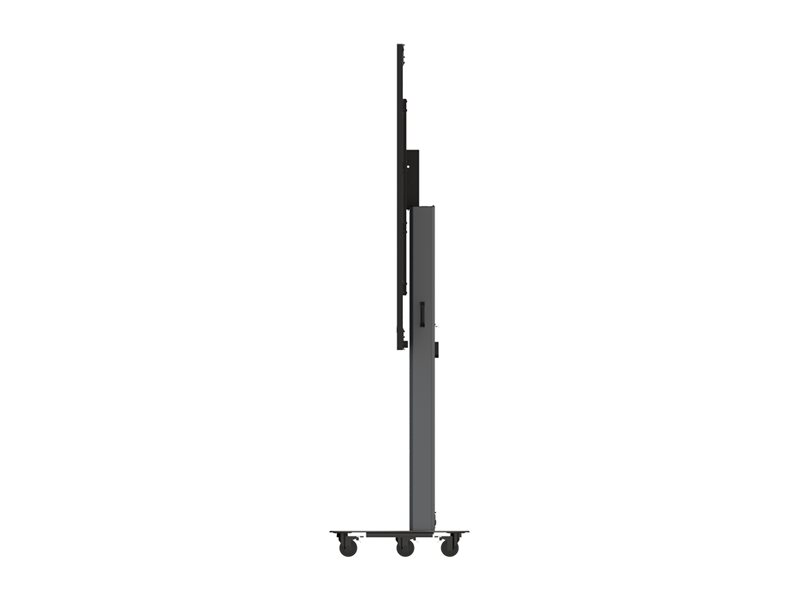

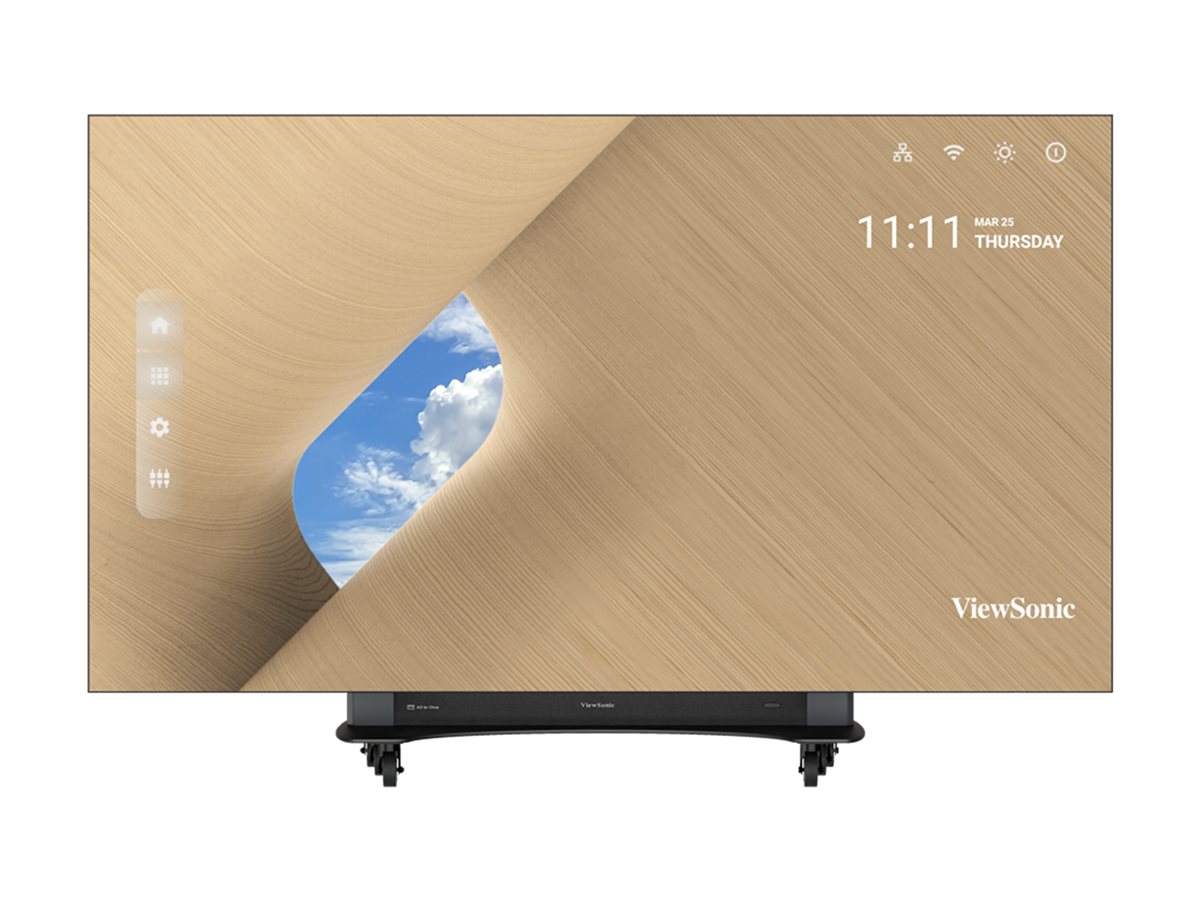

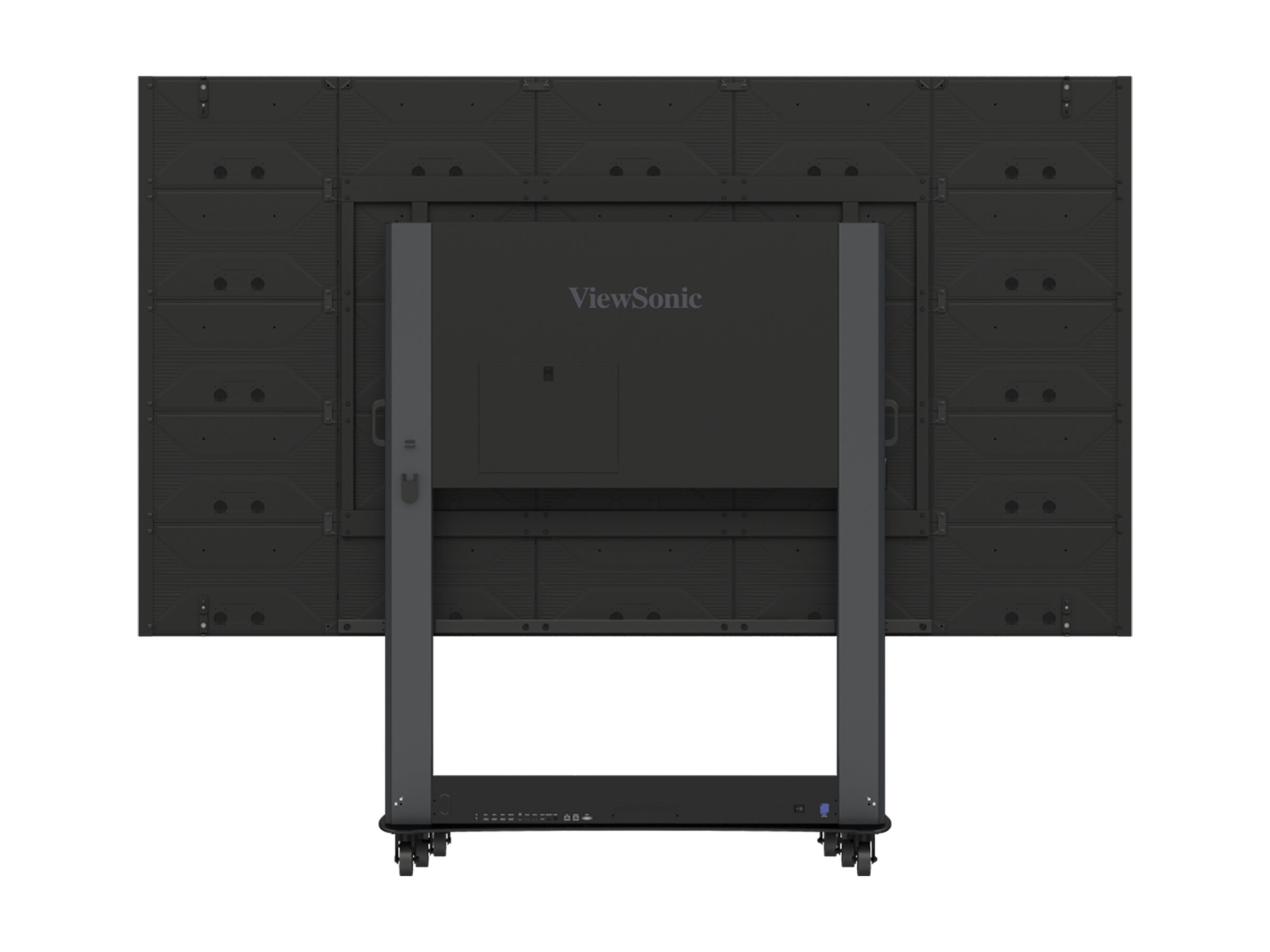

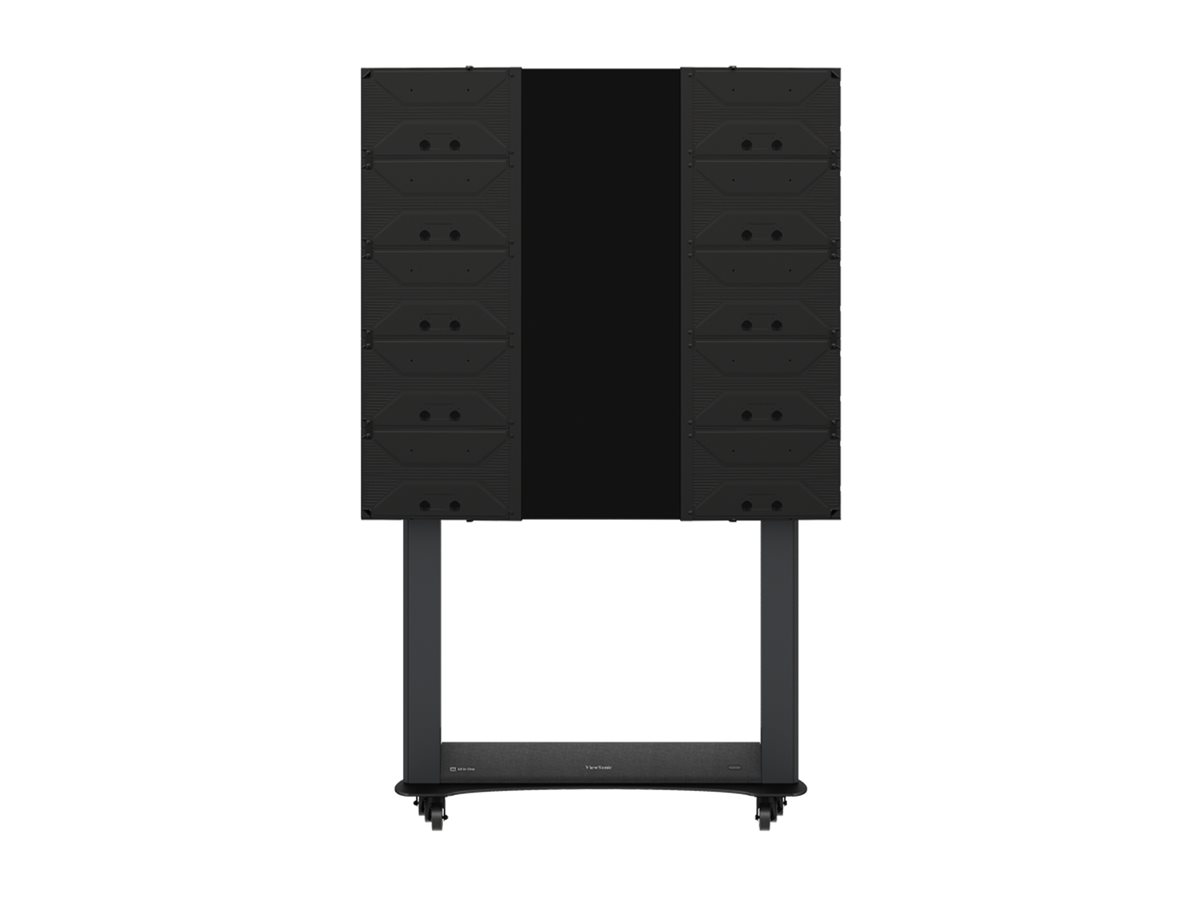

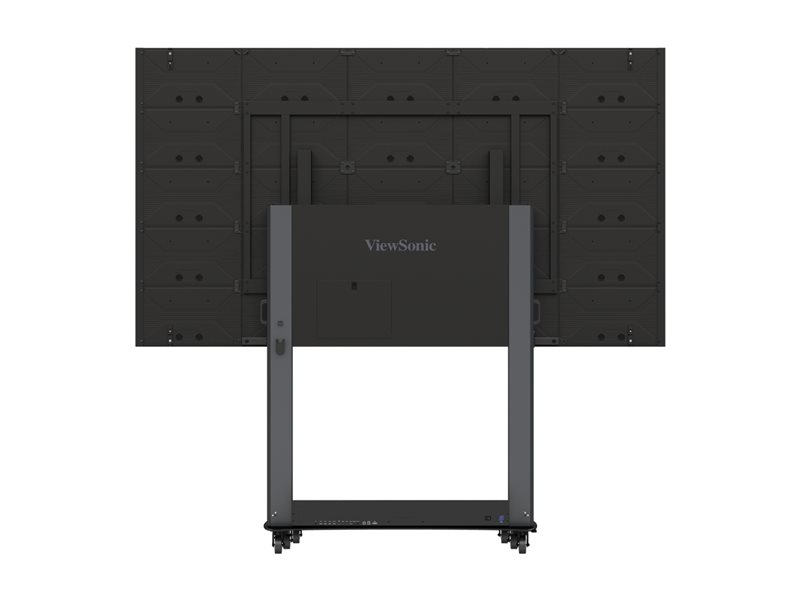

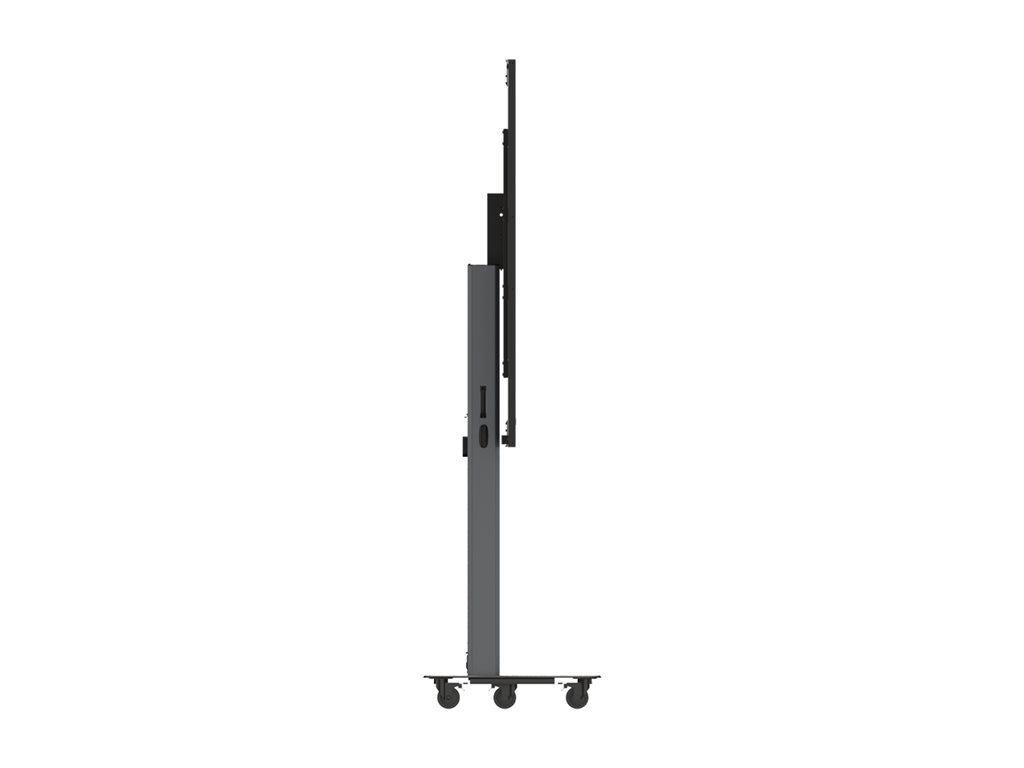

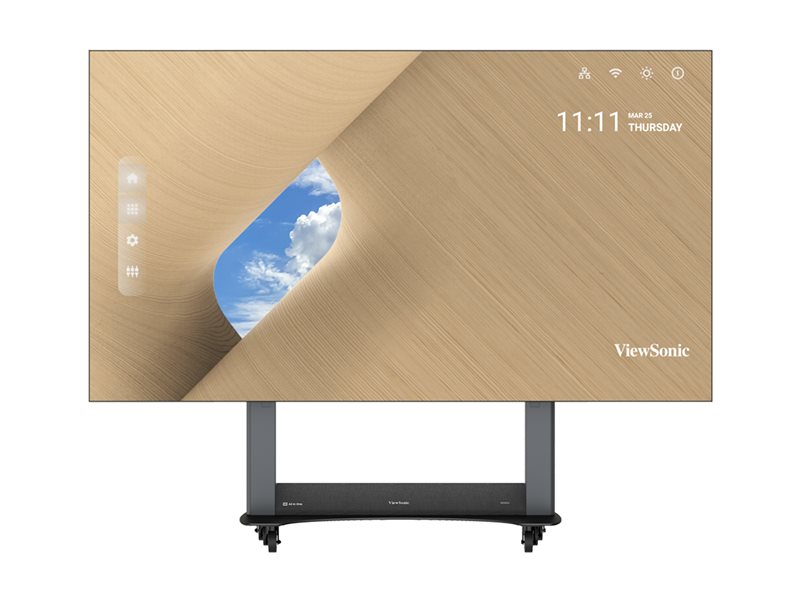

136" Diagonal Class LED-backlit LCD display - digital signage - with built-in media player / optional slot-in PC capability - Android - 1080p 1920 x 1080 - Direct View LED
| Main Specifications | |
|---|---|
| Product Description | ViewSonic LDS136-152 136" LED-backlit LCD display - Full HD - for digital signage |
| Product Type | LED-backlit LCD flat panel display with built-in media player / optional slot-in PC capability |
| Diagonal Class | 136" |
| Commercial Use | Yes - digital signage |
| Platform | Android |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Input Video Formats | 480p, 576p, 720p, 1080p, 2160p |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | Wi-Fi, LAN |
| PC Interface | USB, serial RS-232 |
| LCD Backlight Technology | Direct View LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Picture Enhancements | 120% Rec.709 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 64 GB |
| USB | Yes |
| Included Accessories | Remote control, wheeled flight case, remote control, LED module x7, 3 in 1 hub board x3, maintenance tool LD-MK-006 |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 609 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - with stand | 118.6 in x 3.1 in x 112.1 in |
| Weight | 963.41 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 1827 watt |
| Power Consumption Operational | 609 watt |
| Diagonal Class | 136" |
| Commercial Use | Yes - digital signage |
| Combined With | Built-in media player / optional slot-in PC capability |
| Platform | Android |
| Operating System | Android OS 13 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Light sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| PC Interface | USB, serial RS-232 |
| Modes | Landscape mode |
| Picture Enhancements | 120% Rec.709 color gamut |
| Design | Frameless Design |
| Dimensions | With stand |
| Width | 118.6 in |
| Depth | 3.1 in |
| Height | 112.1 in |
| Weight | 963.41 lbs |
| Miscellaneous | |
| Included Accessories | Wheeled flight case, remote control, LED module x7, 3 in 1 hub board x3, maintenance tool LD-MK-006 |
| Cables Included | IR extender cable ¦ CAT5E network cable |
| Compliant Standards | IP65, IK06 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Display | |
| Pixel Pitch | 1.56 mm |
| LED Type | 3-in-1 SMD |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | Direct View LED |
| Image Contrast Ratio | 6500:1 |
| Brightness | 600 cd/m² |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Backlight Life | 100,000 hours |
| Additional Features | Glue-on-Board (GOB) surface treatment technology, Cinema SuperColor+ Technology, picture-by-picture (PBP), picture-in-picture (PIP), copper bonding wire, 31-94 kHz horizontal frequency, LED Module Quantity: 100 |
| Connections | |
| Connector Type | 4 x HDMI input ¦ HDMI output ¦ Audio line-out ¦ SPDIF input ¦ 3 x USB ¦ USB-C (data only) ¦ RS-232 ¦ Infrared input ¦ 3 x LAN |
| Video Features | |
| Input Video Formats | 480p, 576p, 720p, 1080p, 2160p |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 60 watt |
| Speakers | 2 x speaker - 30 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 77.6 in |
| Depth (Shipping) | 34.4 in |
| Height (Shipping) | 78.3 in |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Panel with stand - 118.6 in x 3.1 in x 112.1 in x 963.4 lbs ¦ Panel without stand - 118.6 in x 1.3 in 594.1 lbs |
| Stands & Mounts | |
| Stand | Included |
| Media Player | |
| USB Port | Yes |
| Configuration | 64 GB |
