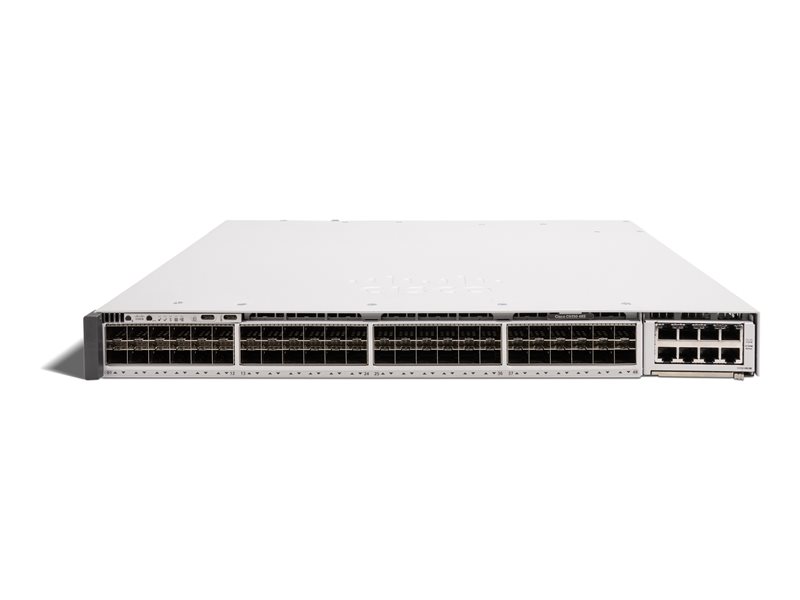

Switch - L3 - smart - 48 x 10/100/1000 / SFP - front to back airflow - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco C9350-48S - switch - 48 ports - smart - rack-mountable |
| Device Type | Switch - 48 ports - L3 - smart - stackable |
| Enclosure Type | Front to back airflow rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 / SFP |
| Performance | Bandwidth: 496 Gbps ¦ Stacking bandwidth: 2096 Gbps ¦ Forwarding rate: 369.024 Mpps ¦ Forwarding rate with stacking: 1559.424 Mpps ¦ Switching ASIC capacity: 1.3 Tbps ¦ Packet buffer size: 36 MB |
| Capacity | VLAN IDs: 4094 ¦ Active VLANs: up to 4000 ¦ PVST instances: up to 1000 ¦ STP Virtual Ports for PVST: 16000 ¦ STP Virtual Ports for MST: 100000 ¦ Switched virtual interfaces (SVIs): 2000 ¦ IPv4 routes: 192000 ¦ IPv6 routes: 96000 ¦ ARP entries: 64000 ¦ NDP entries: up to 4000 ¦ IGMP snooping entries: 8000 ¦ MLD snooping groups: 4000 ¦ Multicast routes: 8000 ¦ IPv4 QoS ACL scale: 2000 ¦ IPv6 QoS ACL scale: 1000 ¦ IPv4 security ACL scale: 5000 ¦ IPv6 security ACL scale: 2500 ¦ NetFlow entries: 64000 ¦ GRE tunnels: 1024 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9126 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | NETCONF, RESTCONF, YANG, SSH, CLI |
| Features | Built-in ASIC, cloud managed, Cisco StackPower technology, Cisco StackWise Technology, Cisco Trust Anchor module, secure boot, image signing, FNF, QoS, ACL support, VLAN support, IGMP support |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 17.5 in x 20.1 in x 1.7 in |
| Weight | 13.45 lbs |
| System Requirements | Cisco IOS XE, Cisco IOS XE 26.1.2 or later |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - smart - stackable |
| Enclosure Type | Front to back airflow desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 / SFP |
| Performance | Bandwidth: 496 Gbps ¦ Stacking bandwidth: 2096 Gbps ¦ Forwarding rate: 369.024 Mpps ¦ Forwarding rate with stacking: 1559.424 Mpps ¦ Switching ASIC capacity: 1.3 Tbps ¦ Packet buffer size: 36 MB |
| Capacity | VLAN IDs: 4094 ¦ Active VLANs: up to 4000 ¦ PVST instances: up to 1000 ¦ STP Virtual Ports for PVST: 16000 ¦ STP Virtual Ports for MST: 100000 ¦ Switched virtual interfaces (SVIs): 2000 ¦ IPv4 routes: 192000 ¦ IPv6 routes: 96000 ¦ ARP entries: 64000 ¦ NDP entries: up to 4000 ¦ IGMP snooping entries: 8000 ¦ MLD snooping groups: 4000 ¦ Multicast routes: 8000 ¦ IPv4 QoS ACL scale: 2000 ¦ IPv6 QoS ACL scale: 1000 ¦ IPv4 security ACL scale: 5000 ¦ IPv6 security ACL scale: 2500 ¦ NetFlow entries: 64000 ¦ GRE tunnels: 1024 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9126 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | NETCONF, RESTCONF, YANG, SSH, CLI |
| Authentication Method | Secure Shell (SSH) |
| Features | Built-in ASIC, cloud managed, Cisco StackPower technology, Cisco StackWise Technology, Cisco Trust Anchor module, secure boot, image signing, FNF, QoS, ACL support, VLAN support, IGMP support |
| RAM | 16 GB |
| Flash Memory | 18 GB |
| Built-in Devices | 3 x fans |
| Expansion / Connectivity | |
| Interfaces | 48 x Gigabit LAN SFP downlink ¦ 1 x USB Type C console ¦ 1 x USB Type C host ¦ 1 x 10/100/1000Base-T RJ-45 management ¦ 1 x console RJ-45 ¦ 2 x network stack device ¦ 1 x USB 3.0 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Miscellaneous | |
| Compliant Standards | 47 CFR Part 15 Class A, AS/NZS 60950-1:2011, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1-14, CISPR 24:2010+A1:2015, CISPR 32 Second Edition Class A, CNS13438:2006, EN 300 386, EN 300 386 V1.6.1, EN 55024:2010+A1:2015, EN 55032:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010:A1, GB 4943-95, ICES-003 issue 6:2016, IEC 60950-1, IEC 60950-1:2006, KN32:2015 Class A, KN35:2015, NOM-019-SCFI-1998, TCVN 7189: 2009 Class A, TCVN 7317:2003, UL 60950-1 Second Edition, UL 62368-1 Second Edition |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 3 |
| Power Redundancy Scheme | N+1 (with optional power supply) |
| Features | 80 PLUS Titanium efficiency |
| ENERGY STAR Certified | Yes |
| Software / System Requirements | |
| Software Included | Meraki Dashboard |
| OS Required | Cisco IOS XE, Cisco IOS XE 26.1.2 or later |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 20.1 in |
| Height | 1.7 in |
| Weight | 13.45 lbs |
