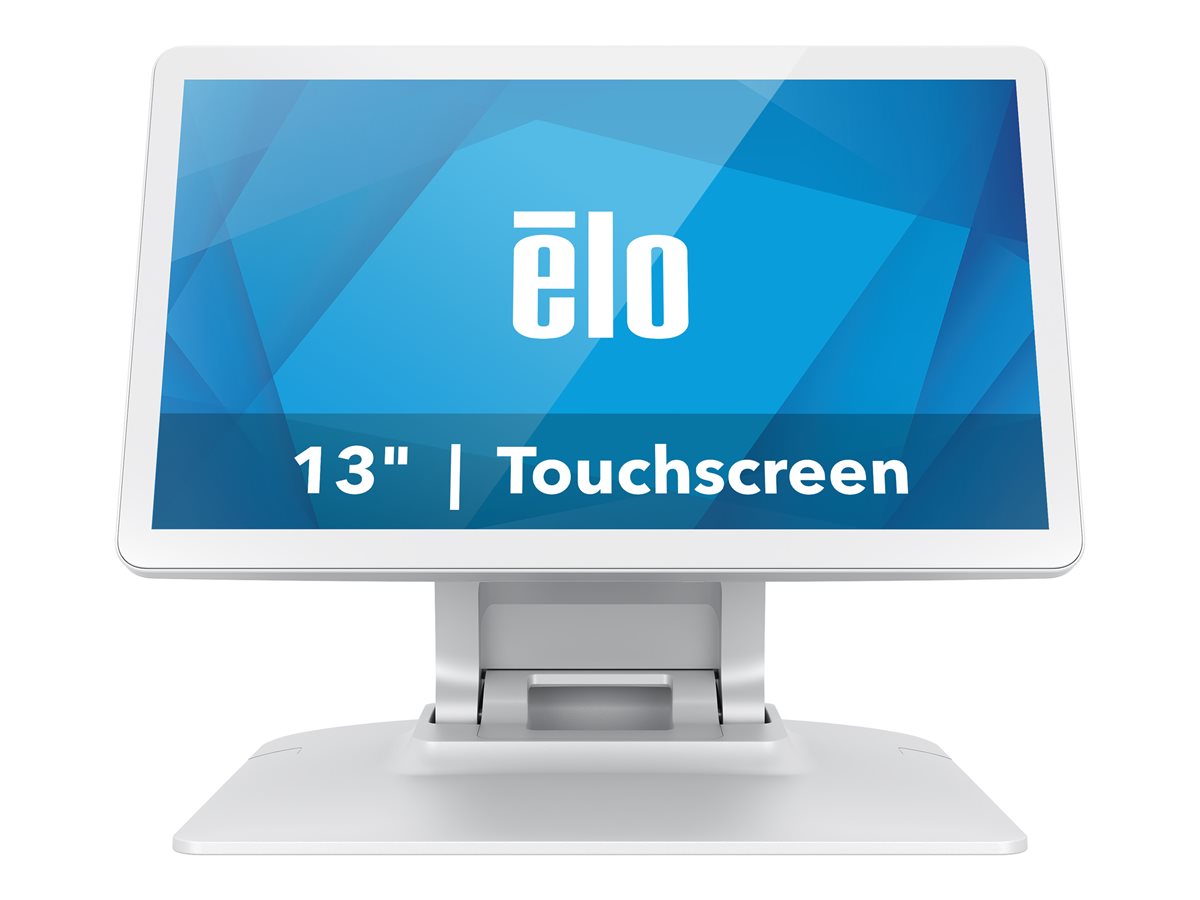

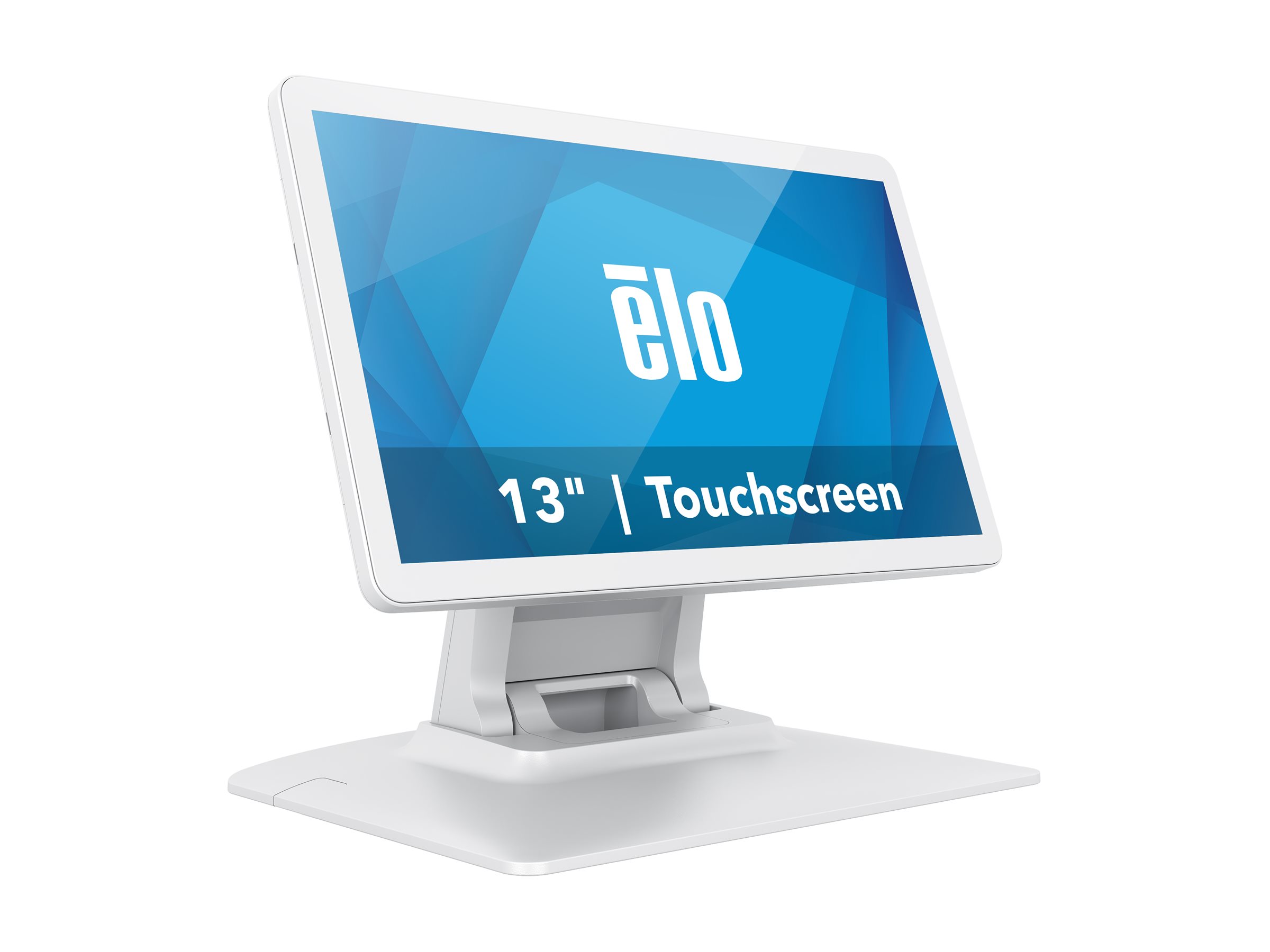

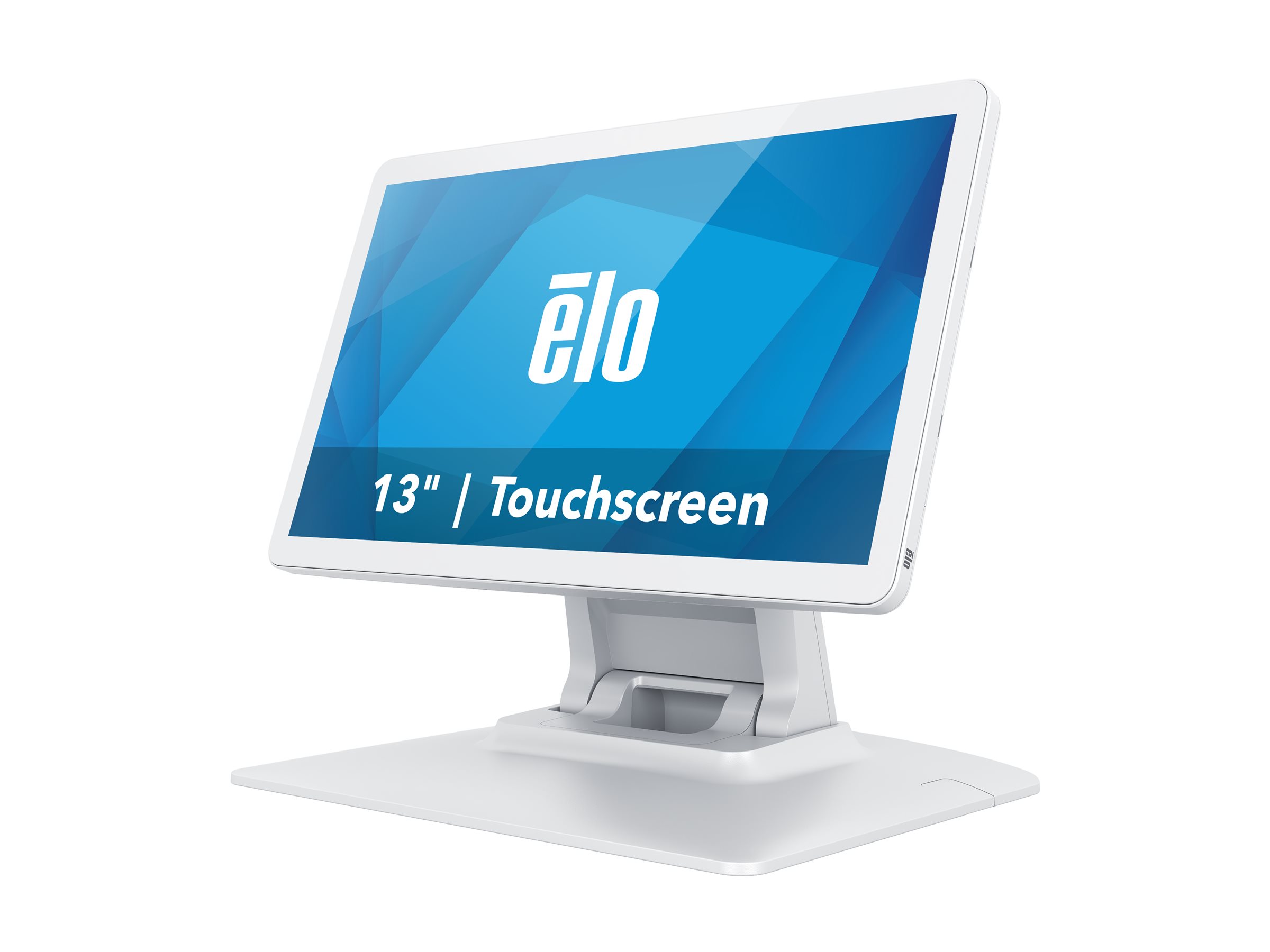

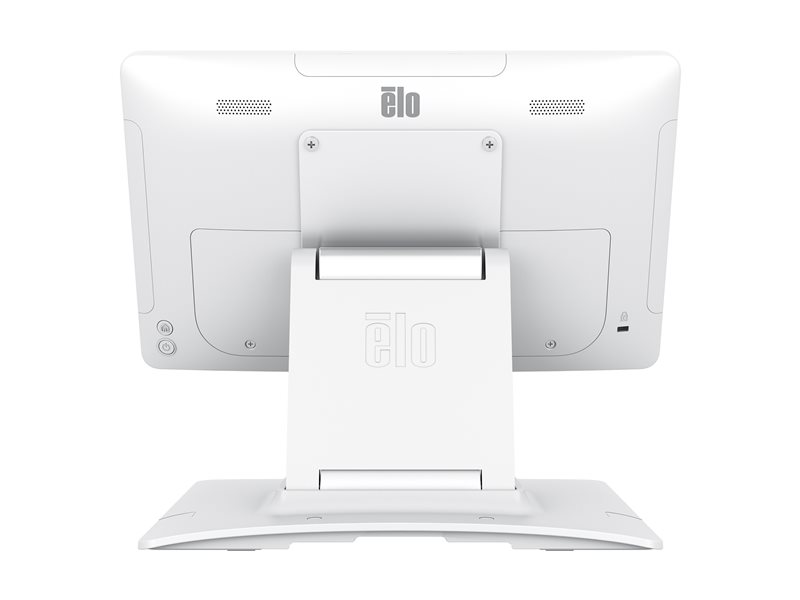

LCD monitor - 13.3" - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 300 cd/m² - 600:1 - 27 ms - HDMI, DisplayPort - speakers - white
| Main Specifications | |
|---|---|
| Product Description | Elo 1304L - LCD monitor - Full HD (1080p) - 13.3" |
| Device Type | LCD monitor - 13.3" - touchscreen |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2219053 |
| Energy Class | Class C |
| Features | Touchscreen |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 300 cd/m² |
| Contrast Ratio | 600:1 |
| Response Time | 27 ms (typical) |
| Color Support | 16.2 million colors |
| Input Connectors | HDMI, DisplayPort |
| Screen Coating | Anti-glare |
| Color | White |
| Image Color Disclaimer | The displayed product image may be a different color |
| Dimensions (WxDxH) - with stand (forward position) | 12.6 in x 5.1 in x 9.5 in |
| Weight | 5.29 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Compliant Standards | TUV Rheinland, AR, cUL, IC, CCC, Korea MEPS, KCC, BSMI, UKCA, UL, FCC, VCCI, PSE Mark, CB, RCM, Mexico NOM, RoHS, China RoHS, WEEE, REACH, BIS, AAMI ES60601-1:2005 +, AAMI ES60601-1:(R)2012, A1:2012, A1:(R)2012, A2:2021, EN 60601-1:2006, EN 60601-1:2006 + A1:2013, EN 60601-1:2006 + A12:2014, EN 60601-1:2006 + A2:2021, CAN/CSA C22.2 No. 60601-1:14, IP54, IK08, IEC 60601 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LCD monitor / TFT active matrix |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2219053 |
| Energy Class | Class C |
| Diagonal Size | 13.3" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 300 cd/m² |
| Brightness w/touchscreen | 270 cd/m² |
| Contrast Ratio | 600:1 |
| Color Support | 16.2 million colors |
| Response Time | 27 ms (typical) |
| Vertical Refresh Rate | 60 Hz |
| Horizontal Refresh Rate | 30 - 80 kHz |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 170 |
| Screen Coating | Anti-glare |
| OSD Languages | English, French, Italian, German, Spanish, Japanese, Chinese (traditional), Chinese (simplified) |
| Features | Projected Capacitive Touch (P-CAP) technology, OSD lock, optical bonding, edge-to-edge glass, scratch-resistant |
| Color | White |
| Image Color Disclaimer | The displayed product image may be a different color |
| Dimensions (WxDxH) | 12.6 in x 5.1 in x 9.5 in - with stand (forward position) |
| Weight | 5.29 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 cable ties |
| Cables Included | 1 x HDMI cable - 6 ft ¦ 1 x USB-A to USB-C cable - 6 ft |
| MTBF | 50,000 hour(s) |
| Compliant Standards | TUV Rheinland, AR, cUL, IC, CCC, Korea MEPS, KCC, BSMI, UKCA, UL, FCC, VCCI, PSE Mark, CB, RCM, Mexico NOM, RoHS, China RoHS, WEEE, REACH, BIS, AAMI ES60601-1:2005 +, AAMI ES60601-1:(R)2012, A1:2012, A1:(R)2012, A2:2021, EN 60601-1:2006, EN 60601-1:2006 + A1:2013, EN 60601-1:2006 + A12:2014, EN 60601-1:2006 + A2:2021, CAN/CSA C22.2 No. 60601-1:14, IP54, IK08, IEC 60601 |
| Power | |
| Power Consumption SDR (On mode) | 7 kWh/1000h |
| Power Consumption (Typical) | 6.5 watt |
| Power Consumption Sleep | 1 watt |
| Power Consumption (Off Mode) | 0.25 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 watt |
| Connectivity | |
| Interfaces | USB-C with Power Delivery ¦ USB-A ¦ DisplayPort ¦ HDMI ¦ 4 x Micro-USB |
| Dimensions & Weight | |
| Dimensions & Weight Details | With stand (forward position) - width: 12.6 in - depth: 5.1 in - height: 9.5 in - weight: 5.3 lbs ¦ With stand (backward position) - width: 12.6 in - depth: 5.4 in - height: 9.5 in - weight: 5.3 lbs ¦ Without stand - width: 12.6 in - depth: 1 in - height: 7.7 in - weight: 2.6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.1 in |
| Shipping Depth | 8.4 in |
| Shipping Height | 12.7 in |
| Shipping Weight | 10.8 lbs |
| Input | |
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
