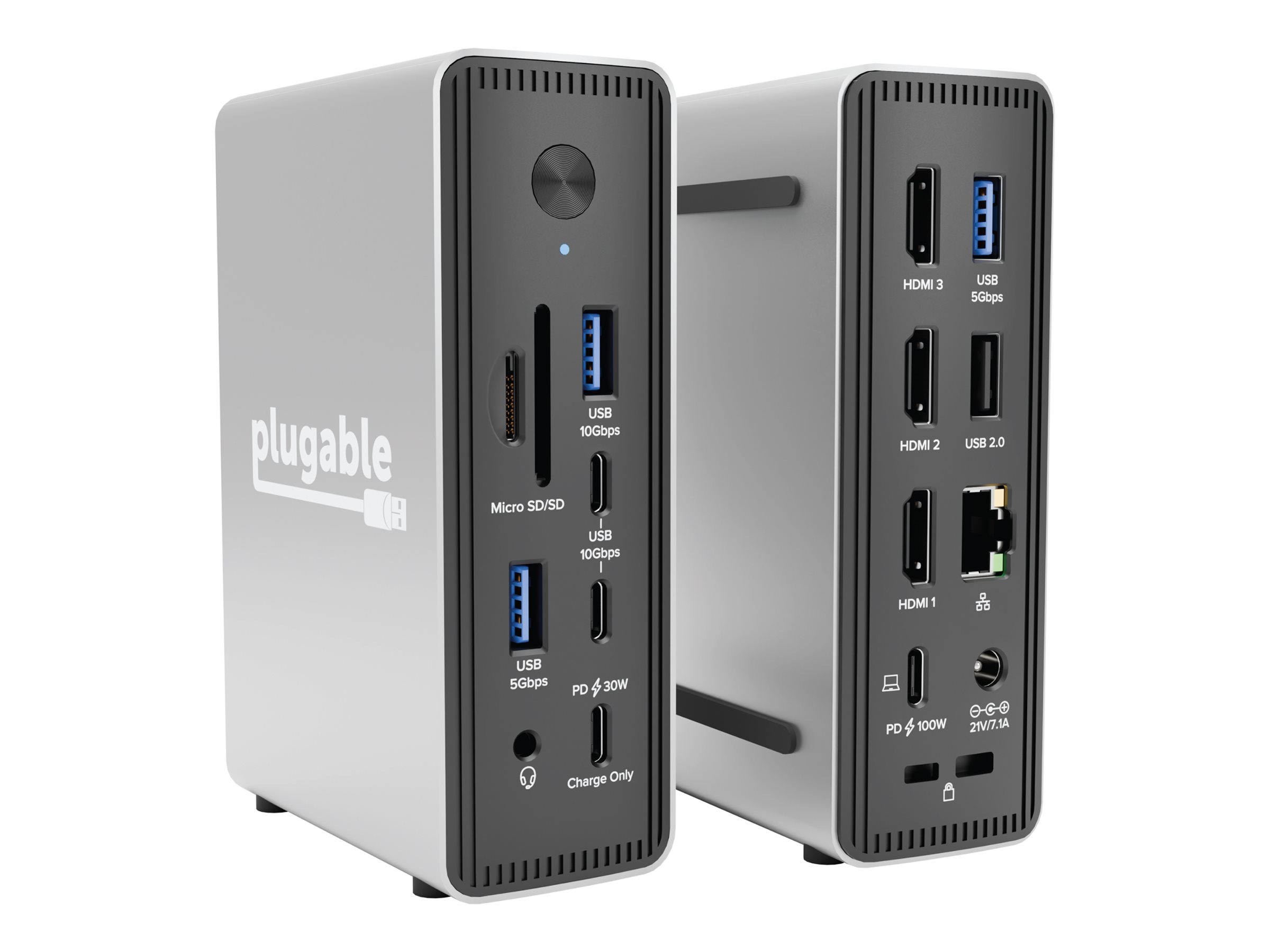

Docking station - for laptop - USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3 / Thunderbolt 4 / Thunderbolt 5 - 3 x HDMI - 1GbE, 2.5GbE - 100 watt
| Main Specifications | |
|---|---|
| Product Description | Plugable - docking station - USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3 / Thunderbolt 4 / Thunderbolt 5 - 3 x HDMI - 1GbE, 2.5GbE |
| Product Type | Docking station - for laptop |
| Docking Interface | USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3 / Thunderbolt 4 / Thunderbolt 5 |
| Video Interfaces | 3 x HDMI |
| Dimensions (WxDxH) | 1.7 in x 3.4 in x 4.8 in |
| Weight | 16.33 oz |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power supply 149.1 watt 100 watt Power Provided (21 V) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station - for laptop |
| Width | 1.7 in |
| Depth | 3.4 in |
| Height | 4.8 in |
| Weight | 16.33 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD / MMC Memory Card (UHS-I) ¦ 1 (total) / 1 (free) x microSD (UHS-I) |
| Interfaces | 3 x display / video - HDMI - 19 pin HDMI Type A ¦ 4 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 2 x USB-C 3.2 Gen 2 (7.5 W) - 24 pin USB-C ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm ¦ 1 x USB-C with Power Delivery (30 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C to USB-C cable - external - 3.3 ft |
| Features | 30W power delivery, fast charging, power LED status, 48kHz 16-bit audio support, up to 10Gbps data transfer, MST (multi-stream transport), up to 104 MB/s card speed |
| Compliant Standards | HDCP, USB Power Delivery, DisplayPort 2.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power supply |
| Power Consumption (Max) | 149.1 watt |
| Power Provided | 100 watt |
| Voltage Provided | 21 V |
| Video | |
| Max Resolution Details | 4K - 60 Hz (Dual Display (2 x HDMI)) ¦ 1080P - 60 Hz (Triple Display (HDMI)) |
| System Requirements | |
| OS Required | Windows 10 or later, Google Chrome OS |
