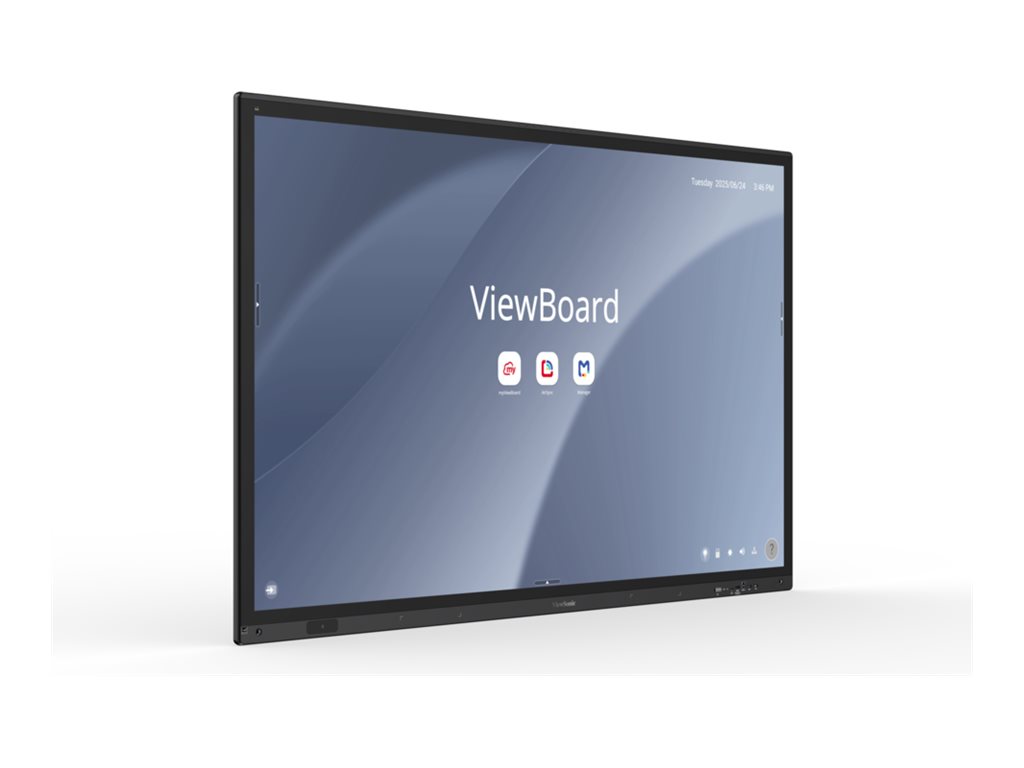

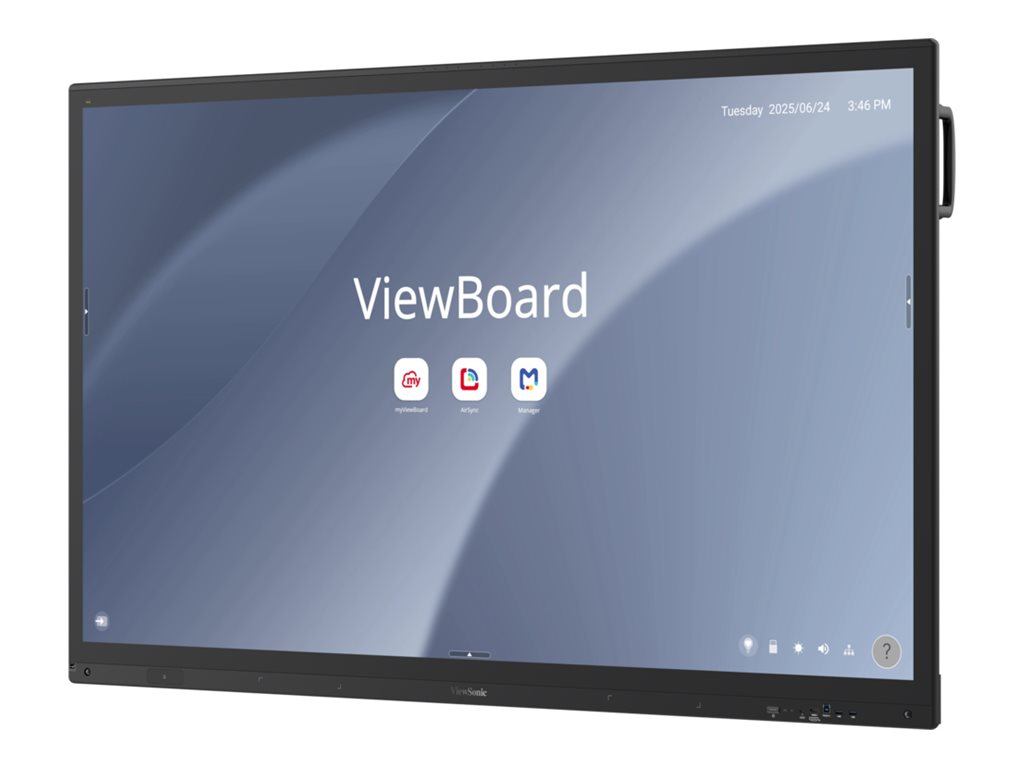

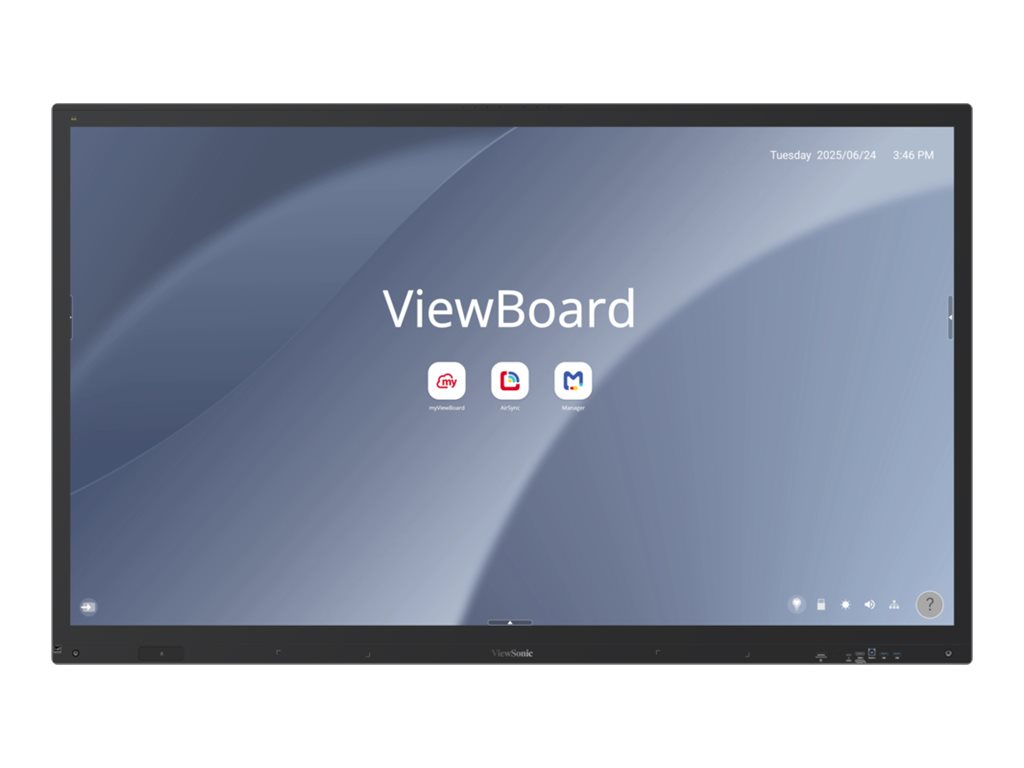

65" Diagonal Class LED-backlit LCD display - interactive - with touchscreen (multi touch) / 8-microphone array / camera / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - Direct LED - with ViewSonic VB-WIFI-005 Adapter
| Main Specifications | |
|---|---|
| Product Description | ViewSonic ViewBoard IFP6563 65" LED-backlit LCD display - 4K - for interactive communication |
| Product Type | LED-backlit LCD flat panel display with touchscreen (multi touch) / 8-microphone array / camera / optional slot-in PC capability |
| Diagonal Class | 65" |
| Commercial Use | Yes - interactive |
| Bundled with | ViewSonic VB-WIFI-005 Adapter |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | LAN, NFC |
| PC Interface | DisplayPort |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Speaker System | 2 speakers, subwoofer |
| Storage Capacity | 128 GB |
| USB | Yes, 12 ports |
| Included Accessories | Remote control, 2 stylus pens, RS232 adapter, 5 clamps, camera plate, 8 screws |
| Voltage | AC 100-240 V |
| Environmental Standards | ENERGY STAR Qualified |
| Carbon Footprint | 2014 kg carbon emissions |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 65" |
| Commercial Use | Yes - interactive |
| Bundled with | ViewSonic VB-WIFI-005 Adapter |
| Combined With | Touchscreen (multi touch) / 8-microphone array / camera / optional slot-in PC capability |
| Operating System | ViewBoard OS |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | NFC sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| PC Interface | DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - backlight - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 2 stylus pens, RS232 adapter, 5 clamps, camera plate, 8 screws |
| Cables Included | USB touch cable - 10 ft ¦ USB-C cable - 10 ft ¦ HDMI cable - 10 ft |
| Compliant Standards | Enterprise Device Licensing Agreement (EDLA) certified, cTUVus, FCC, CEC |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Power Consumption (Off Mode) | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare, anti-bacterial, 9H hardness |
| Dynamic Contrast Ratio | 5000:1 |
| Brightness | 450 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Touchpoints Qty | 50 |
| Response Time | 6.5 ms |
| Additional Features | ?10ms touch response time, Projected Capacitive Technology (PCAP), 3 mm thickness, 24/7 operation time, edge-to-edge glass |
| Connections | |
| Connector Type | 4 x HDMI input ¦ HDMI output ¦ DisplayPort ¦ Audio input ¦ Microphone input ¦ 2 x LAN ¦ RS-232 ¦ SPDIF output ¦ 4 x USB ¦ 4 x USB-C with 100W Power Delivery ¦ 3 x USB |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers, subwoofer |
| Output Power / Total | 60 watt |
| Additional Features | Full duplex echo cancellation |
| Speakers | 2 x sound bar - 20 watt ¦ 1 x subwoofer - 20 watt |
| Network & Internet Multimedia | |
| Connectivity | LAN, NFC |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Bluetooth Version | Bluetooth 5.2 |
| Stands & Mounts | |
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 12 |
| Configuration | Rockchip RK3576 - 16 GB - 128 GB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Carbon Footprint | 2014 kg carbon emissions |
