Mounting kit (wall mount, VESA mounting brackets, 2 angle adjusters) - kickstand style - for flat panel - landscape/portrait, six-point adjustments, up to 70 kg - black - screen size: 45"-70" - wall-mountable
| Main Specifications | |
|---|---|
| Product Description | Startech mounting kit - kickstand style - for flat panel - landscape/portrait, six-point adjustments, up to 70 kg - black |
| Product Type | Mounting kit (kickstand style) - wall-mountable |
| Mounting Components | Wall mount, VESA mounting brackets, 2 angle adjusters |
| Integrated Devices | Anti-theft system |
| Dimensions (WxDxH) | 25.2 in x 4.7 in x 21.4 in |
| Tilt | -3° to 2° |
| Adjustments | Tilt, height |
| Weight | 23.15 lbs |
| Recommended Use | Flat panel |
| Recommended Display Size | 45"-70" |
| VESA Mounting Interface | 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 400 mm |
| Max Load Weight | 154.3 lbs |
| Color | Black |

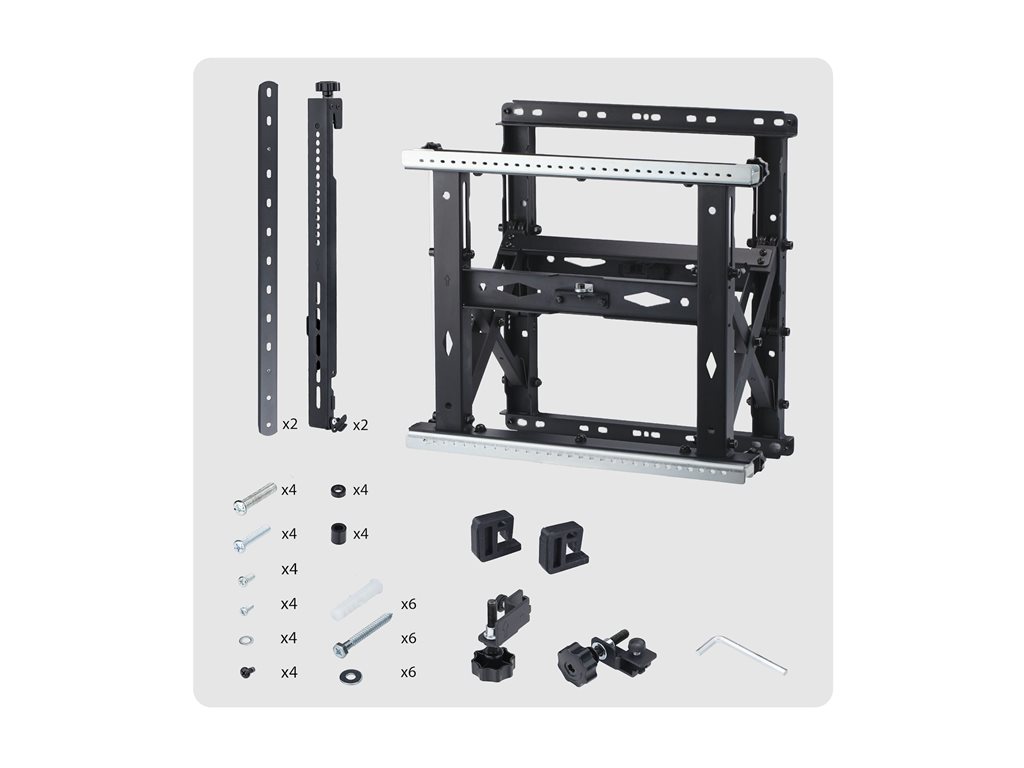

| Package Content | Left lateral adjuster, right lateral adjuster, hex key (6mm), 4 x M6x10 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x16 screws, 4 x M8x35 screws, 4 wall mounting screws, wall mount assembly, 6 x concrete anchors, 10 x washers, 4 x spacers (long), 4 x spacers (short) |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Width | 25.2 in |
| Depth | 4.7 in |
| Height | 21.4 in |
| Weight | 23.15 lbs |
| Color | Black |
| Package Content | Left lateral adjuster, right lateral adjuster, hex key (6mm), 4 x M6x10 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x16 screws, 4 x M8x35 screws, 4 wall mounting screws, wall mount assembly, 6 x concrete anchors, 10 x washers, 4 x spacers (long), 4 x spacers (short) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | Wall mount, VESA mounting brackets, 2 angle adjusters |
| Design | Kickstand style |
| Recommended Use | Flat panel |
| Placing / Mounting | Wall-mountable |
| VESA Mounting Interface | 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 400 mm |
| Integrated Devices | Anti-theft system |
| Cable Management | Integrated cable management |
| Recommended Display Size | 45"-70" |
| Tilt | -3° to 2° |
| Adjustments | Tilt, height |
| Max Load Weight | 154.3 lbs |
| Assembly Required | Yes |
| Details | Portrait orientation, landscape orientation |
| Dimensions & Weight Details | |
| Shipping Dimensions (WxDxH) / Weight | 22.3 in x 23 in x 5.3 in / 33.29 lbs |
