Docking station - for laptop - USB4 / Thunderbolt 4 / Thunderbolt 5 - 2 x DP, 2 x HDMI - 1GbE, 2.5GbE - 140 watt - TAA Compliant - North America
| Main Specifications | |
|---|---|
| Product Description | Startech - docking station - USB4 / Thunderbolt 4 / Thunderbolt 5 - 2 x DP, 2 x HDMI - 1GbE, 2.5GbE - TAA Compliant |
| Product Type | Docking station - for laptop |
| Docking Interface | USB4 / Thunderbolt 4 / Thunderbolt 5 |
| Video Interfaces | 2 x DP, 2 x HDMI |
| Dimensions (WxDxH) | 9.6 in x 3.6 in x 1.4 in |
| Weight | 25.75 oz |
| Color | Space gray and black |
| Localization | North America |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter 180 watt AC 120/230 V 140 watt Power Provided (DC 20 V) |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station - for laptop |
| Width | 9.6 in |
| Depth | 3.6 in |
| Height | 1.4 in |
| Weight | 25.75 oz |
| Enclosure Color | Space gray and black |
| Localization | North America |
| Expansion / Connectivity | |

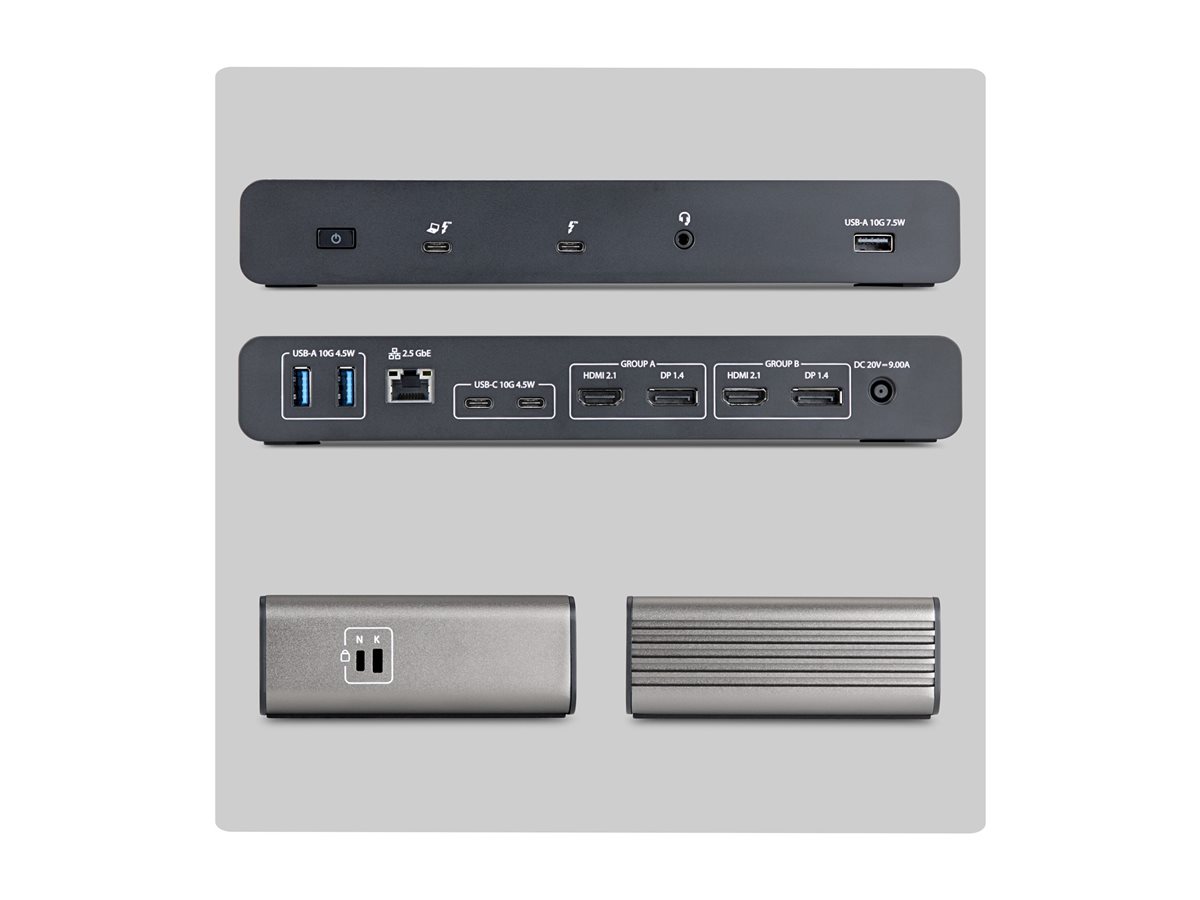

| Interfaces | 1 x Thunderbolt 5 host ¦ 1 x USB-C with Power Delivery (45 W) - Thunderbolt ¦ 1 x audio - mini-phone 3.5 mm 4-pole ¦ 1 x USB-A 3.2 Gen 2 (7.5 W) ¦ 2 x USB-A 3.2 Gen2 (4.5 W) ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 ¦ 2 x USB-C 3.2 Gen 2 (4.5 W) - 24 pin USB-C ¦ 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Technical support - lifetime |
| Miscellaneous | |

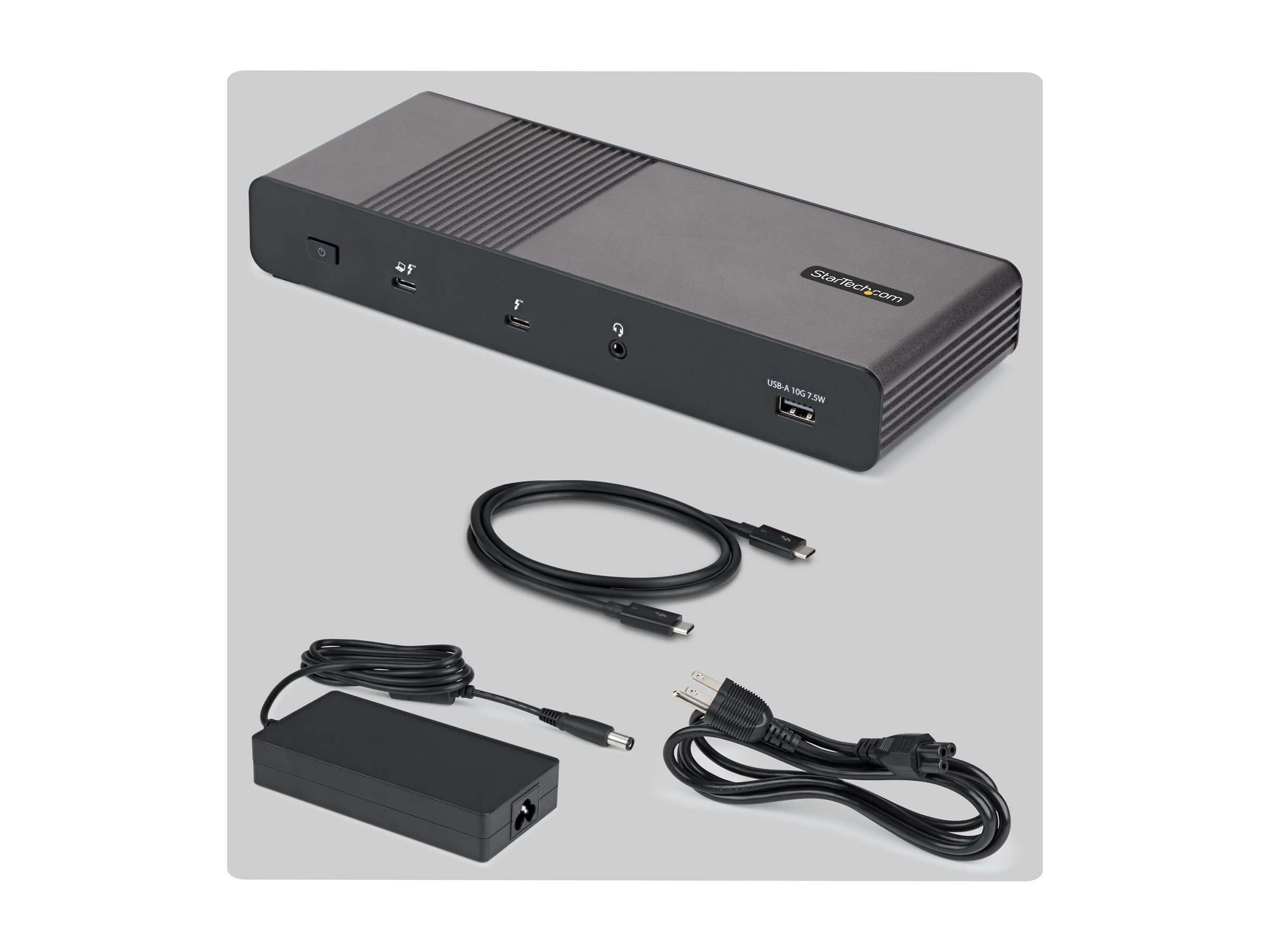

| Cables Included | 1 x Thunderbolt 5 cable - external - 3.3 ft |
| Features | Driverless, up to 140W power delivery, 6K Ultra HD, LED status indicators, UASP support, 45W ultra fast charging, up to 120 Gbps Thunderbolt bandwidth (boost mode), full duplex support, Preboot Execution Environment (PXE) support, wake on LAN |
| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Compliant Standards | Plug and Play, FCC, RCM, WEEE, Thunderbolt 4, Thunderbolt 5, USB Power Delivery 3.1, UASP (USB Attached SCSI Protocol) |
| TAA Compliant | Yes |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Compliant Standards | USB4 |
| Power | |
| Power Device | Power adapter |
| Power Consumption (Max) | 180 watt |
| Voltage Required | AC 120/230 V |
| Power Provided | 140 watt |
| Voltage Provided | DC 20 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |

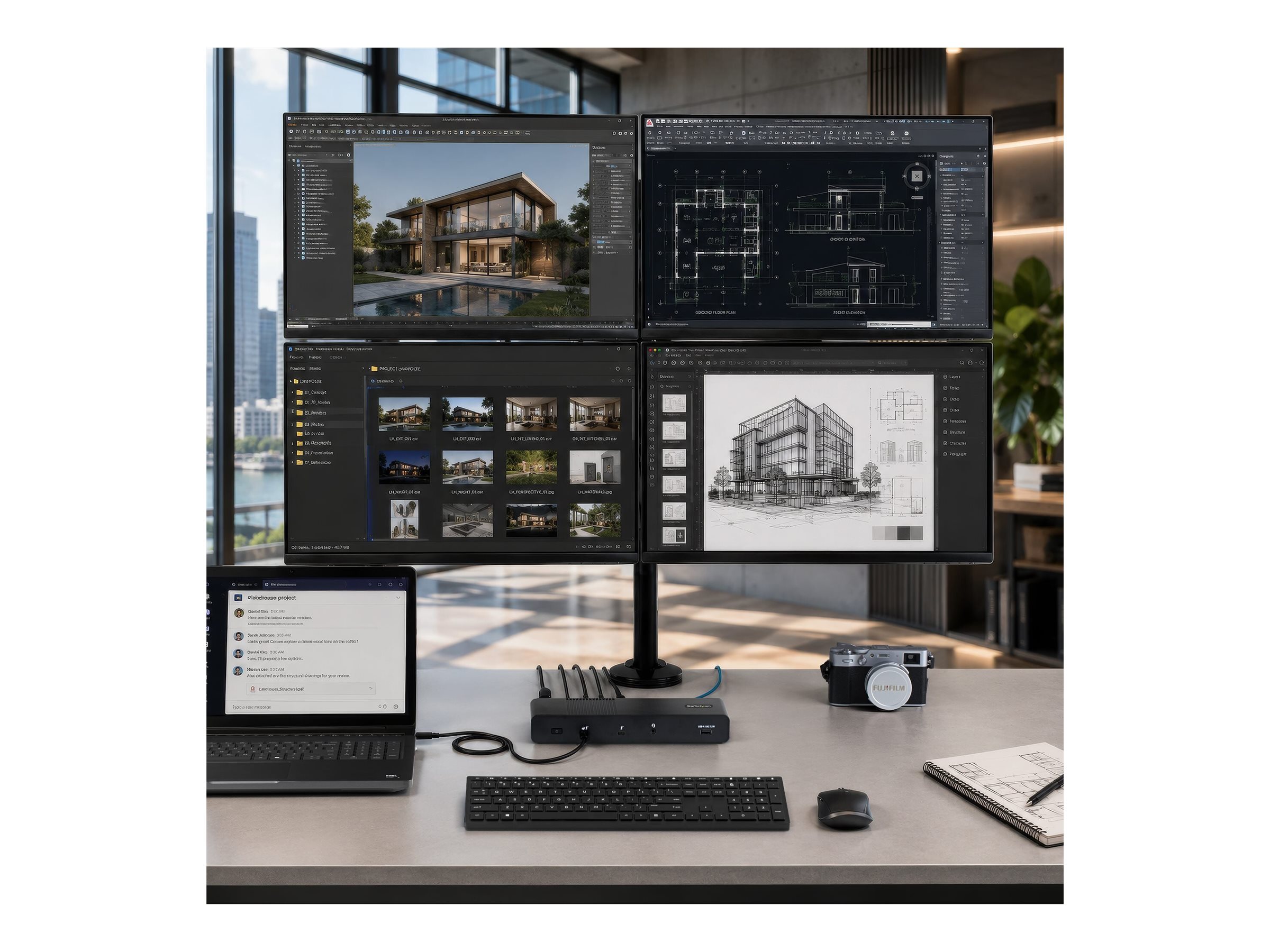

| Max Resolution Details | 6K (Dual Display) ¦ 4K - 120 Hz (Triple Display) ¦ 4K - 60 Hz (Quad Display) |
| System Requirements | |
| OS Required | Windows 11, Apple macOS Tahoe 26, Apple macOS Sequoia 15.0, Windows 11 (on ARM) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.7 in |
| Shipping Depth | 10.3 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 2.47 lbs |
