Expansion module - NCS S 1002-B, white - TAA Compliant
| Main Specifications | |
|---|---|

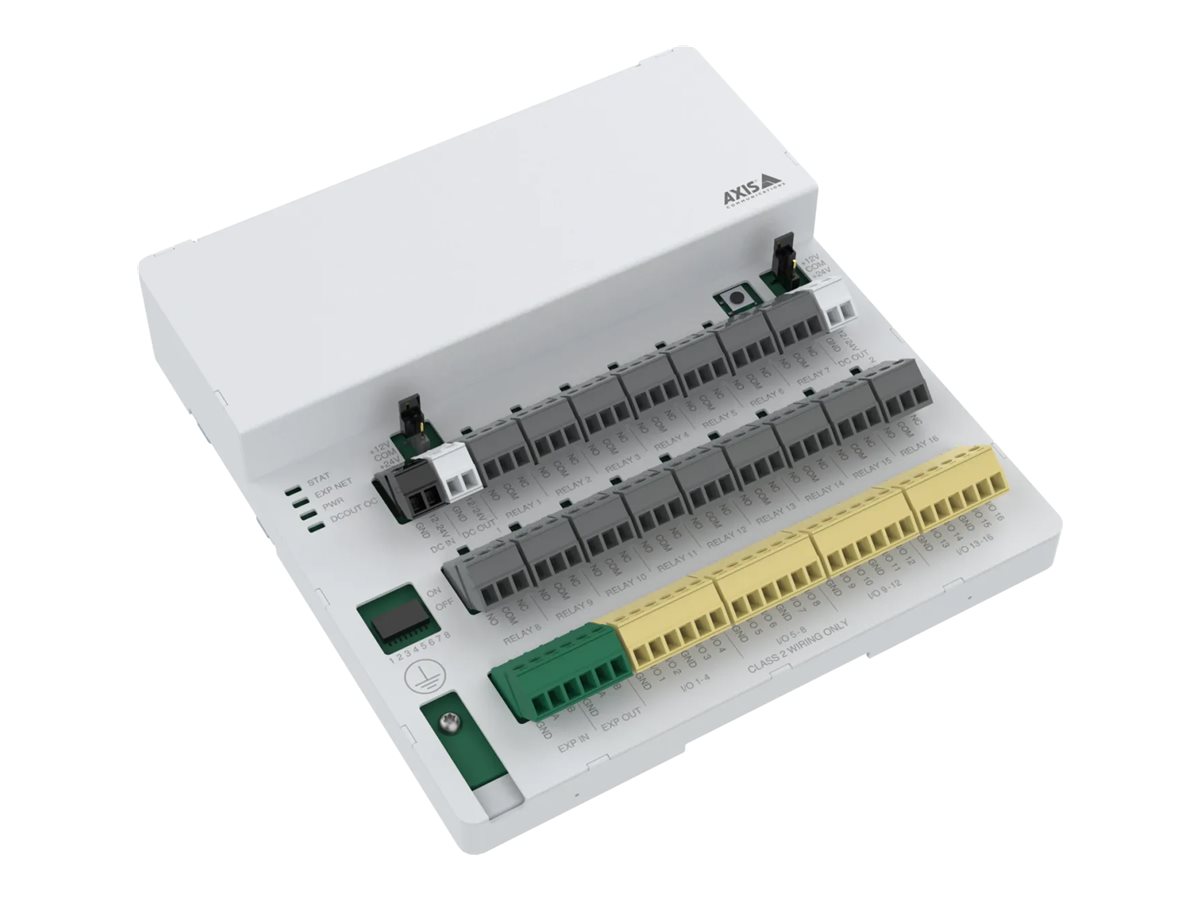

| Product Description | AXIS A9920 - expansion module - TAA Compliant |
| Device Type | Expansion module |
| Form Factor | Wall / DIN rail mountable |
| Weight | 25.22 oz |
| Color | NCS S 1002-B, white |
| Power | DC 12 - 24 V |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | Wall / DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 16 x alarm input ¦ 16 x alarm output ¦ 16 x relay |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | PVC-free, RoHS, EN 63000:2018, REACH, RCM, UKCA, UL/cUL, VCCI, WEEE, CISPR 35, CISPR 32 Class A, EN 55032 Class A, EN 55035, EN 50130-4, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32, ICES-3(A)/NMB-3(A), KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA-C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, AS/NZS 62368.1:2022, UL 2043, UL 294, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, AES-128 |
| Color | NCS S 1002-B, white |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Features | Steel housing |
| Power | |
| Voltage Required | DC 12 - 24 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Weight | 25.22 oz |
