Video/audio extender - receiver - HDMI, 1GbE - over CAT 5/5e/6 - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - video/audio extender - HDMI, 1GbE - TAA Compliant |
| Device Type | Video/audio extender (receiver) |
| Form Factor | Surface / rack mountable |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDMI, 1GbE |
| Transmission Medium | CAT 5/5e/6 |
| Max Transfer Distance | 328 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 5 in x 1.1 in x 6.7 in |
| Weight | 23.21 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender (receiver) |
| Form Factor | Surface / rack mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10/100 - RJ-45 ¦ 2 x HDMI output - 19 pin HDMI Type A female ¦ 4 x USB - Type A female ¦ IR input ¦ IR output ¦ Audio line-in / microphone ¦ Audio line-out ¦ 1 x RS-232 - 3 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

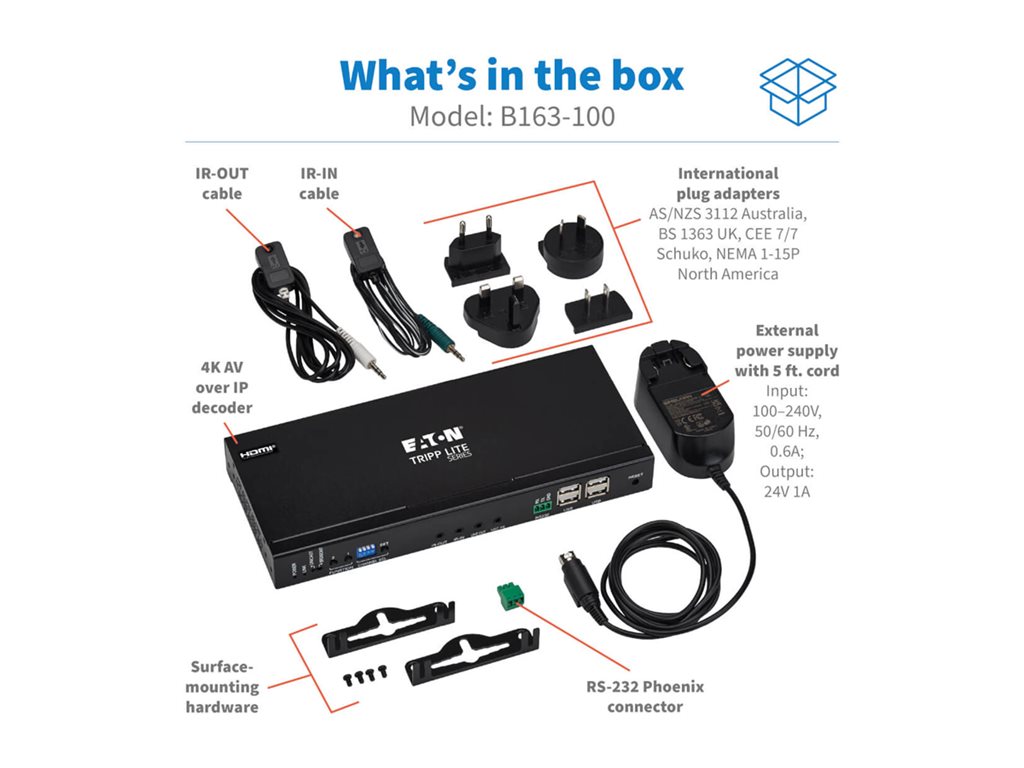

| Included Accessories | 4 international power plugs |
| Cables Included | 1 x Infrared input ¦ 1 x Infrared output |
| Compliant Standards | Plug and Play, GSA, RoHS, REACH, WEEE, C-Tick, FCC, PSE Mark, TUV, UL, cUL |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, 1GbE |
| Data Transfer Rate | 10.2 Gbps |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link |
| Features | IGMP support, HDR10 support, Dolby Vision support, RGB 4:4:4, 4K60Hz support, dual display support, nickel plated connector, power over cable (PoC), EDID mode, daisy-chaining support, cascadable, 36-bit Deep Color support, LPCM 7.1 support, FUNC button, reset button |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 1.1 in |
| Height | 6.7 in |
| Weight | 23.21 oz |
