5th Generation - Expansion module - 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + Gigabit Ethernet / 10 Gigabit SFP+ x 24 - Traditional Business Model
| Main Specifications | |
|---|---|

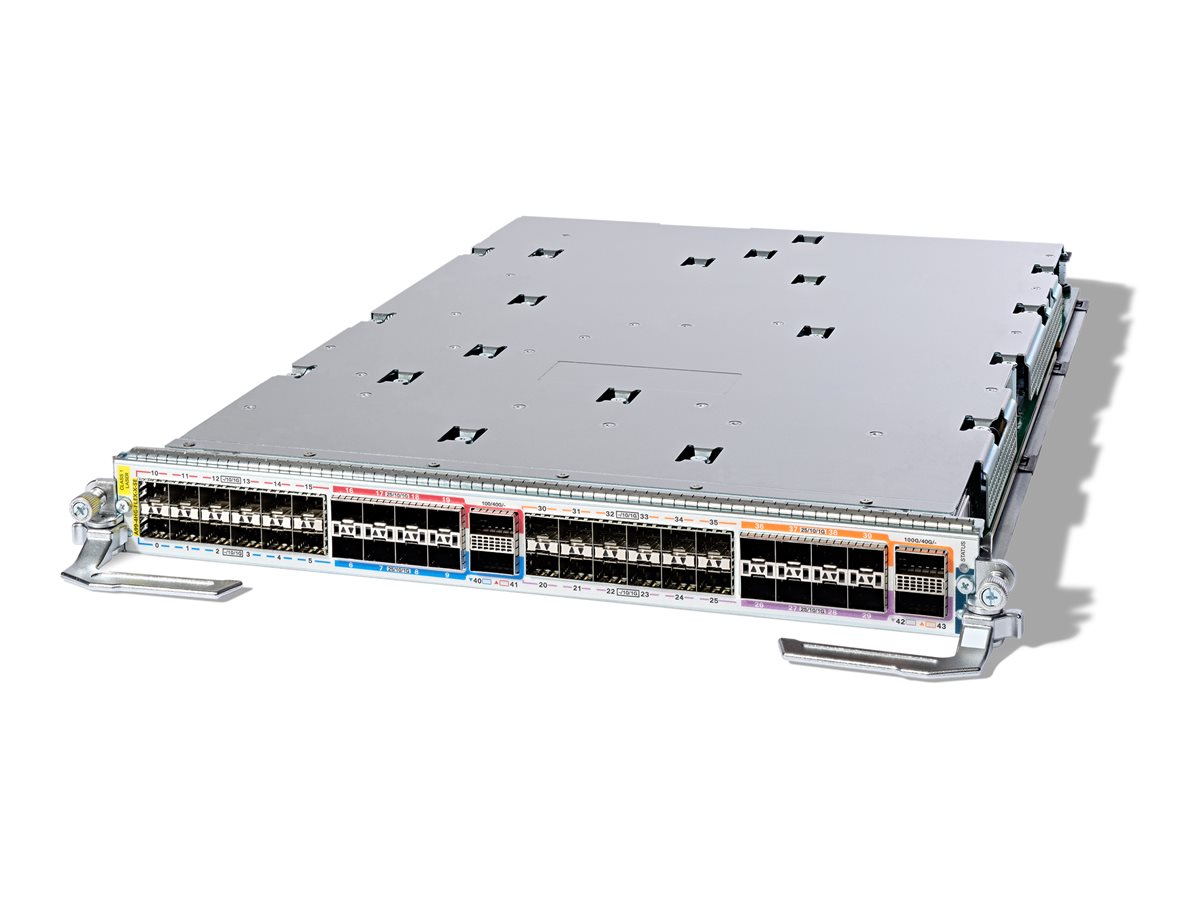

| Product Description | Cisco ASR 9900 400GE Enhanced - 5th Generation - expansion module - 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + Gigabit Ethernet / 10 Gigabit SFP+ x 24 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + Gigabit Ethernet / 10 Gigabit SFP+ x 24 |
| Dimensions (WxDxH) | 24 in x 15.9 in x 1.7 in |
| Weight | 20.66 lbs |
| Data Link Protocol | 1GbE, 10GbE, 25GbE, 40GbE, 100GbE |
| Compliant Standards | IEEE 802.1ag, IEEE 802.3ah, ITU-T Y.1731, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x |
| System Requirements | Cisco IOS XR |
| Pricing Type | Traditional Business Model |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 4 x 40Gb Ethernet/100Gb Ethernet - QSFP28 ¦ 16 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 ¦ 24 x 1 Gigabit Ethernet/10Gb Ethernet - SFP+ |
| Miscellaneous | |
| Compliant Standards | ANSI/UL 60950-1, ANSI/UL 62368-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CISPR 22 Class A, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 50121-4, EN 55022 Class A, EN 55032, EN 55032 Class A, EN 55035, EN 61000-6-1, EN IEC 61000-3-2, EN50082-1, EN55022, EN55024, ETSI 300 019-1-1, ETSI 300 019-2-3, ETSI 300 019-3-1, FCC Class A certified, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62368-1, KN32 Class A, KN35, SR-3580 NEBS Level 3, VCCI Class A, WEEE |
| Pricing Type | Traditional Business Model |
| Networking | |
| Ports | 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + Gigabit Ethernet / 10 Gigabit SFP+ x 24 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Remote Management Protocol | CLI, OAM |
| Features | IPTV support, VoD, IP/MPLS networking, NetFlow, IP SLAs, VCCV, full duplex capability, CRC support, OIR support, full line-rate forwarding, NV, auto-negotiation |
| Compliant Standards | IEEE 802.1ag, IEEE 802.3ah, ITU-T Y.1731, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x |
| Software / System Requirements | |
| OS Required | Cisco IOS XR |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% |
| Dimensions & Weight | |
| Width | 24 in |
| Depth | 15.9 in |
| Height | 1.7 in |
| Weight | 20.66 lbs |
