Digital video encoder / modulator
| Main Specifications | |
|---|---|

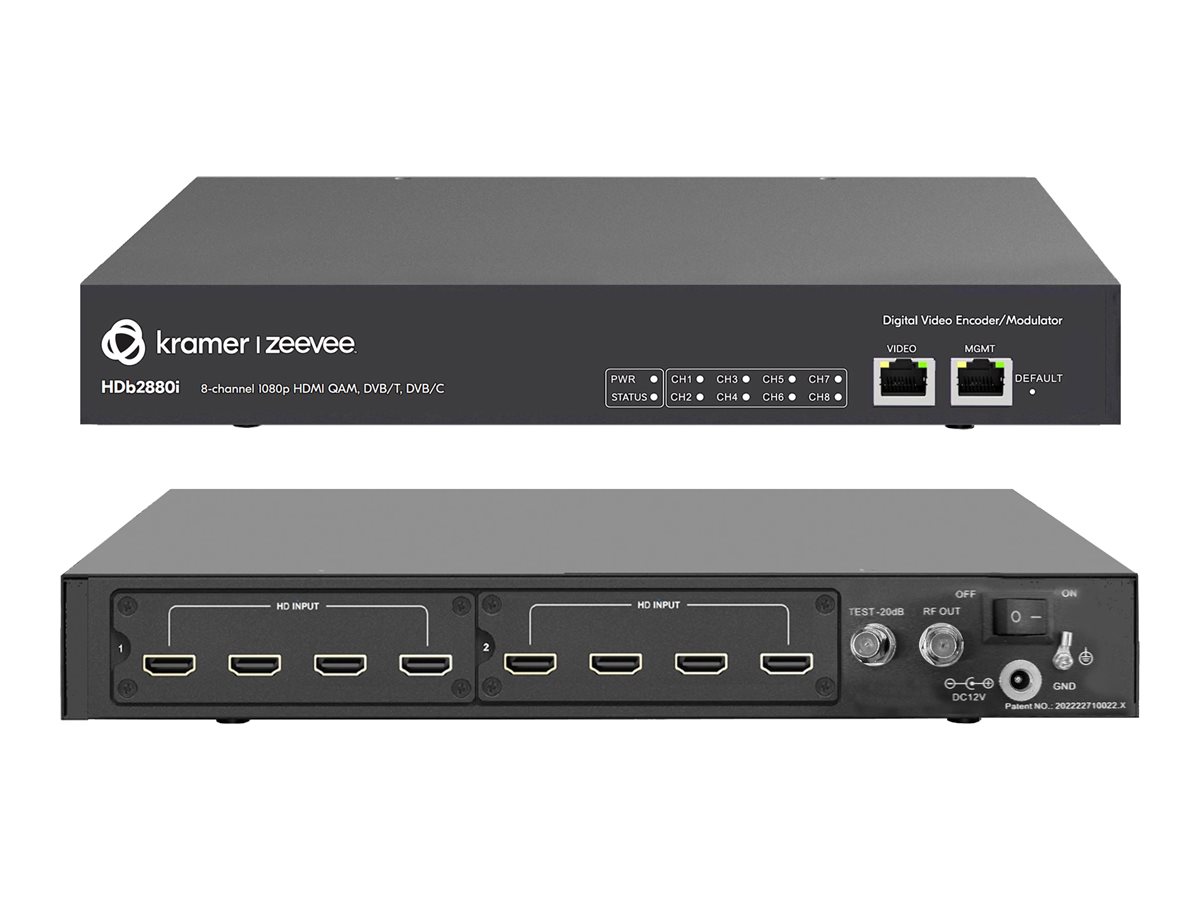

| Product Description | Kramer | zeevee HDB2880I digital video encoder / modulator |
| Type | Digital video encoder / modulator |
| Dimensions (WxDxH) | 12.5 in - 9.5 in - 1.7 in |
| Weight | 5.62 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Digital video encoder / modulator |
| Width | 12.5 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 5.62 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | DC 12 V |
| Power Consumption | 52 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10-80% (no condensation) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18.5 in |
| Shipping Depth | 12.2 in |
| Shipping Height | 4.1 in |
| Shipping Weight | 8.16 lbs |
| Kit Content | |
| Kit Content | (1) x digital video encoder / modulator - Kramer / zeevee HDB2880I ¦ Rack mount ears ¦ (1) x power supply |
| Terminals | |
| Terminals | (8) x HDMI input ¦ (2) x network - RJ-45 - Fast Ethernet ¦ (2) x coaxial output |
| Studio & Production Equipment | |
| Features | QAM modulator output, DVB-T or DVB-C modulator, IP streaming, 1080p support, MPEG-2 codec support, H.264 codec support, UDP/IP support, rack-mountable, 1U rack-mountable, fan cooling, metal enclosure, AAC audio encoding, 48 kHz sampling rate, DHCP support, web interface |
