Control processor - 2 ports - 1GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Atlona Velocity System - control processor |
| Device Type | Control processor |
| Form Factor | Rack-mountable - 1U |
| Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Rooms of AV control: 5 ¦ Simultaneous connections: 500 ¦ Rooms of scheduling: 10 |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 8.5 in x 4.6 in x 1.7 in |
| Weight | 29.59 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Control processor |
| Height (Rack Units) | 1U |
| Width | 8.5 in |
| Depth | 4.6 in |
| Height | 1.7 in |
| Weight | 29.59 oz |
| Expansion / Connectivity | |

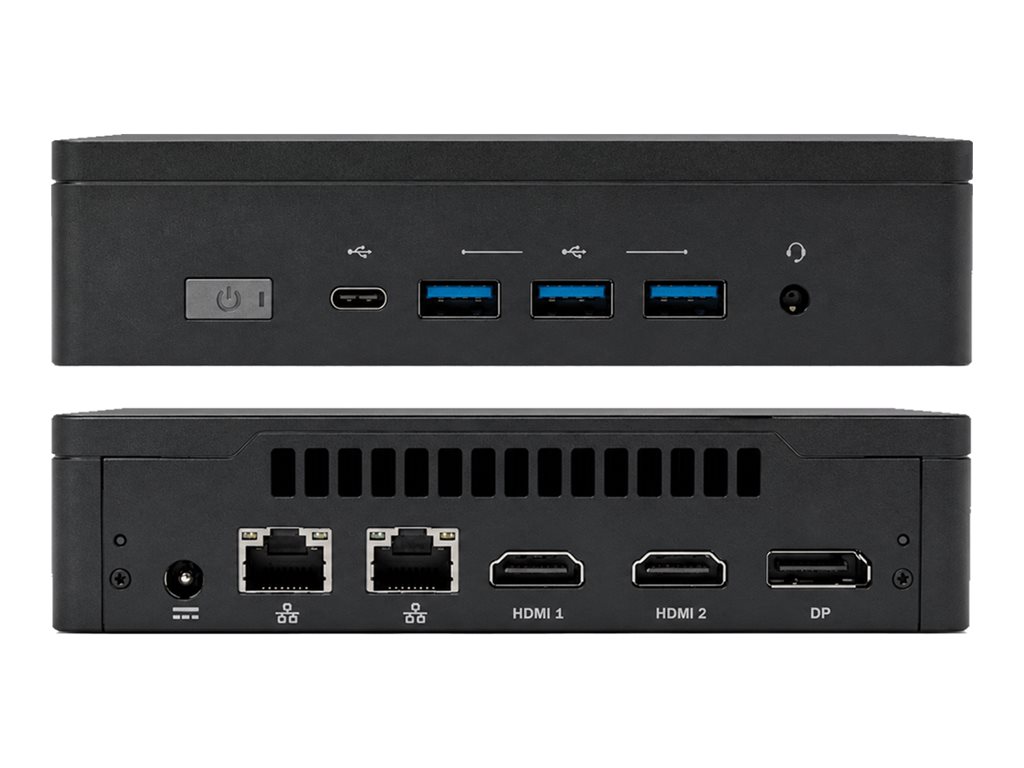

| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x USB-C ¦ 3 x USB - Type A ¦ 2 x HDMI ¦ 1 x DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, KC, ETL, RCM, TUV, CCC, EAC, BSMI, PSE Mark, China RoHS, C-Tick, ICES Class B, RoHS, UKCA |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | DHCP, TCP/IP, UDP/IP |
| Remote Management Protocol | HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, DHCP |
| Capacity | Rooms of AV control: 5 ¦ Simultaneous connections: 500 ¦ Rooms of scheduling: 10 |
| Encryption Algorithm | 128-bit AES, TLS |
| Power | |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 90 watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 20 - 60% (non-condensing) |
