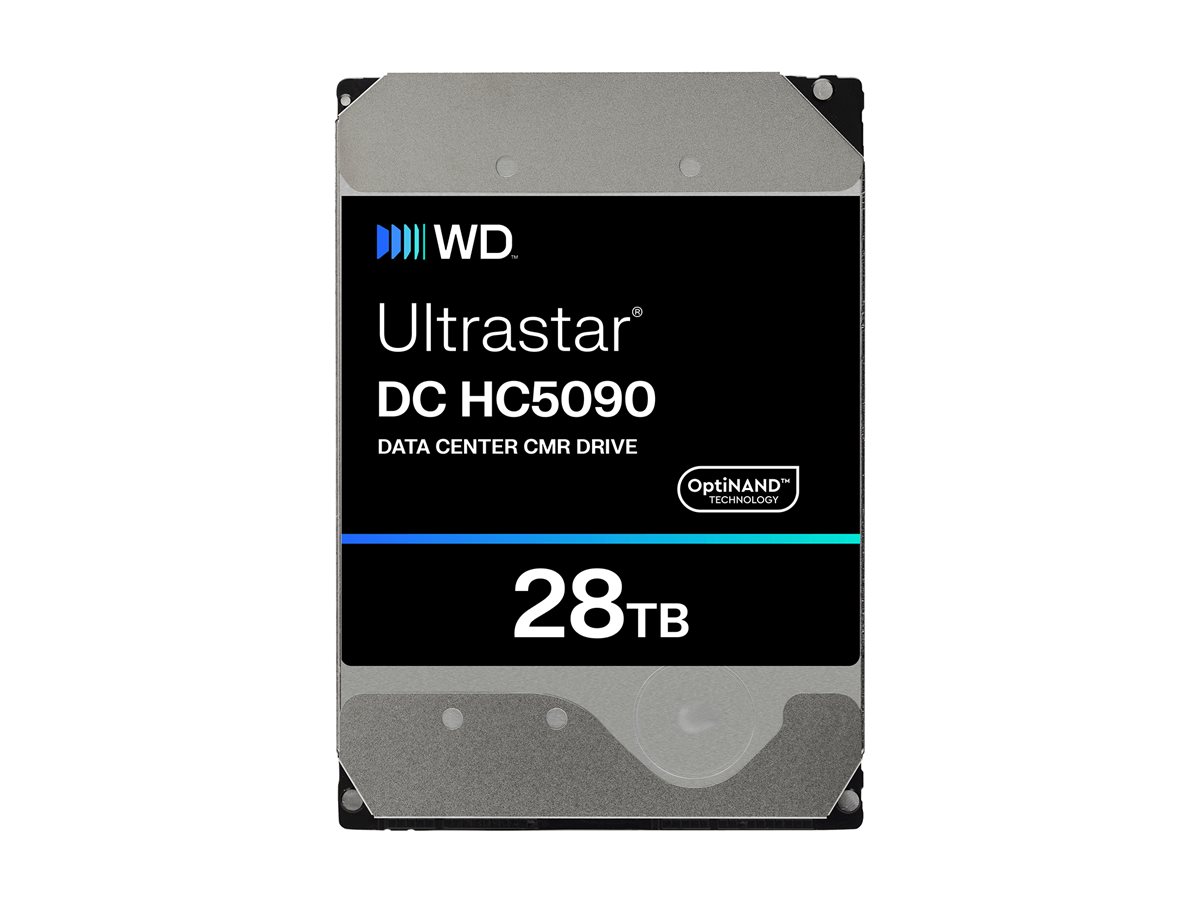

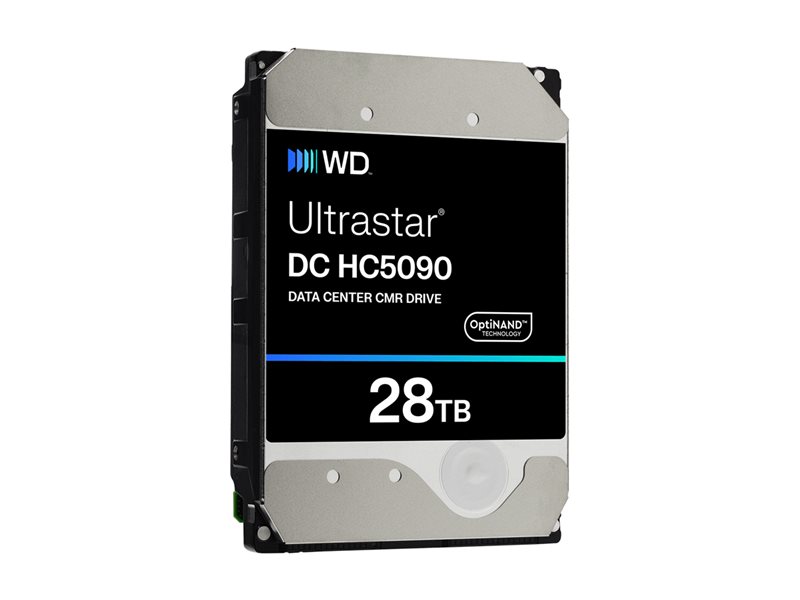

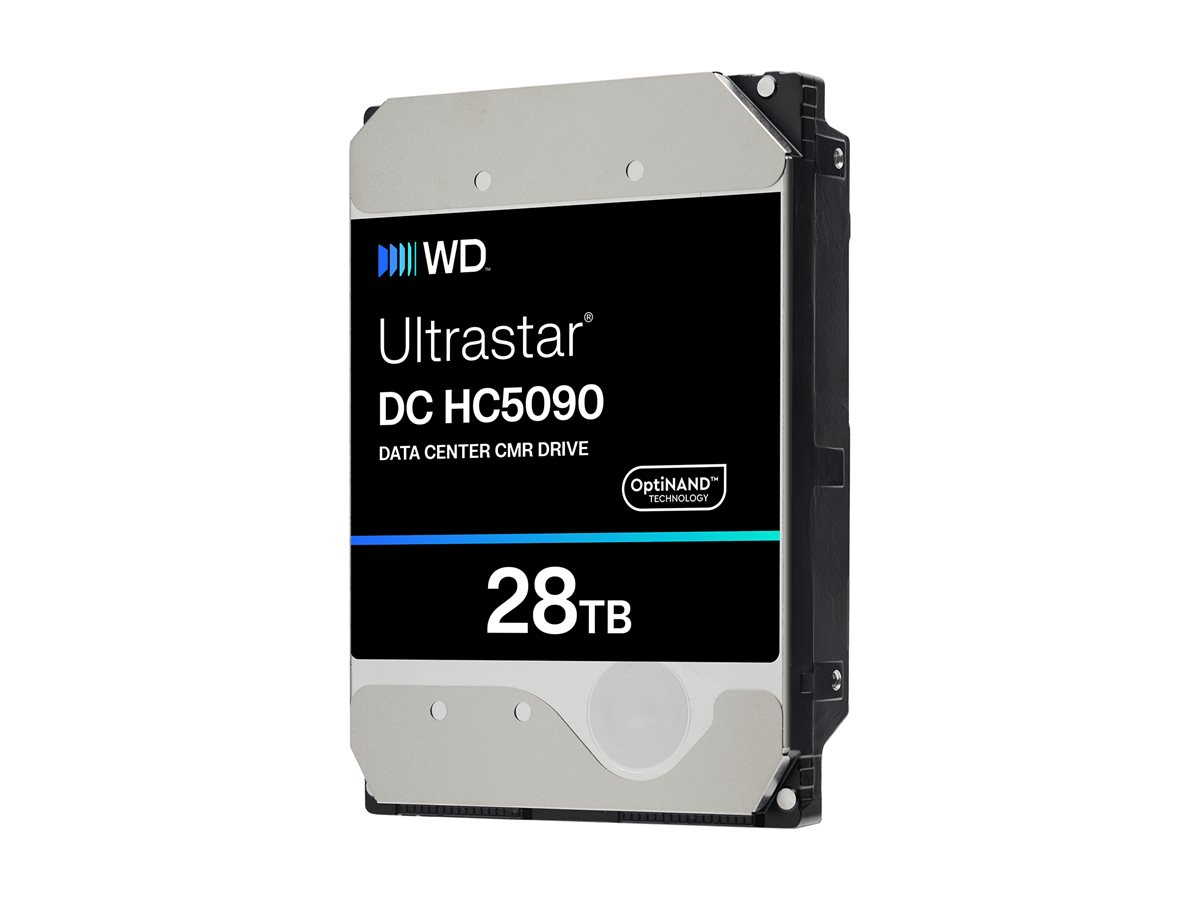

Hard drive - Data Center - 28 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB
| Main Specifications | |
|---|---|
| Product Description | WD Ultrastar DC HC590 - hard drive - Data Center - 28 TB - SATA 6Gb/s |
| Type | Hard drive - internal |
| Capacity | 28 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Buffer Size | 512 MB |
| Spindle Speed | 7200 rpm |
| Drive Class | Data Center |
| Features | Secure Erase function, Conventional magnetic recording (CMR), OptiNAND technology, ArmorCache Technology, Energy-assisted PMR (ePMR), Helium technology, HelioSeal |
| Dimensions (WxDxH) | 4 in x 5.8 in x 1 in |
| Weight | 23.63 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Hard drive - internal |
| Capacity | 28 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 512 MB |
| Features | Secure Erase function, Conventional magnetic recording (CMR), OptiNAND technology, ArmorCache Technology, Energy-assisted PMR (ePMR), Helium technology, HelioSeal |
| Width | 4 in |
| Depth | 5.8 in |
| Height | 1 in |
| Weight | 23.63 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 9.2 watt (random read) ¦ 5.5 watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine wave |
| Shock Tolerance (non-operating) | 200 g @ half-sine wave |
| Vibration Tolerance (operating) | 0.7 gRMS @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 gRMS @ 2-200 Hz |
| Performance | |
| Drive Class | Data Center |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 308 MBps |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
