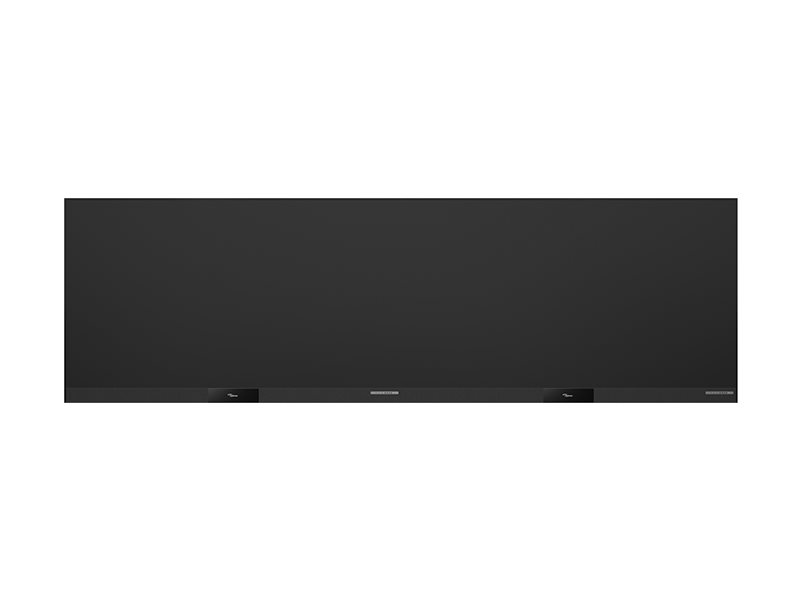

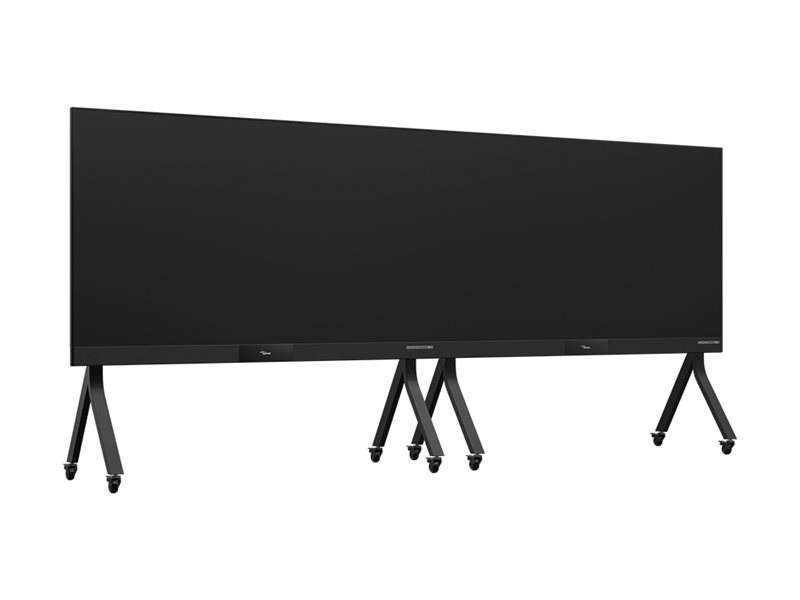

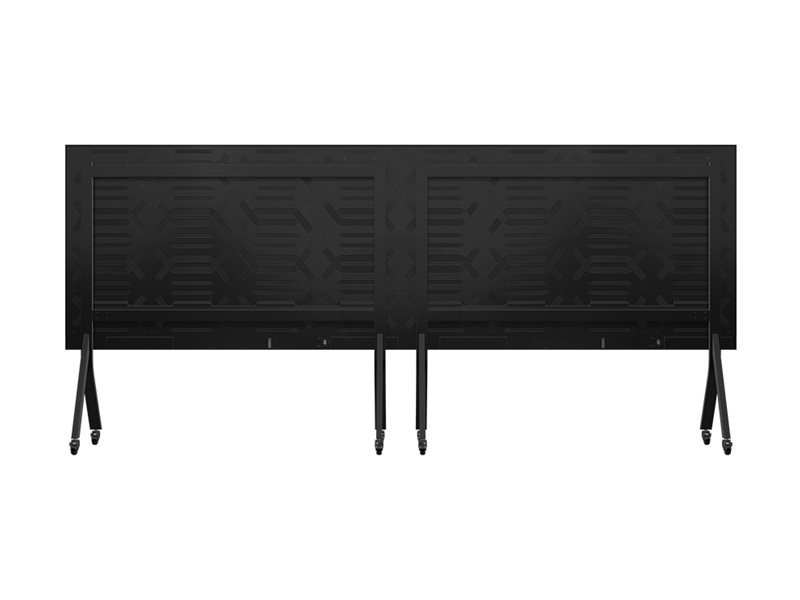

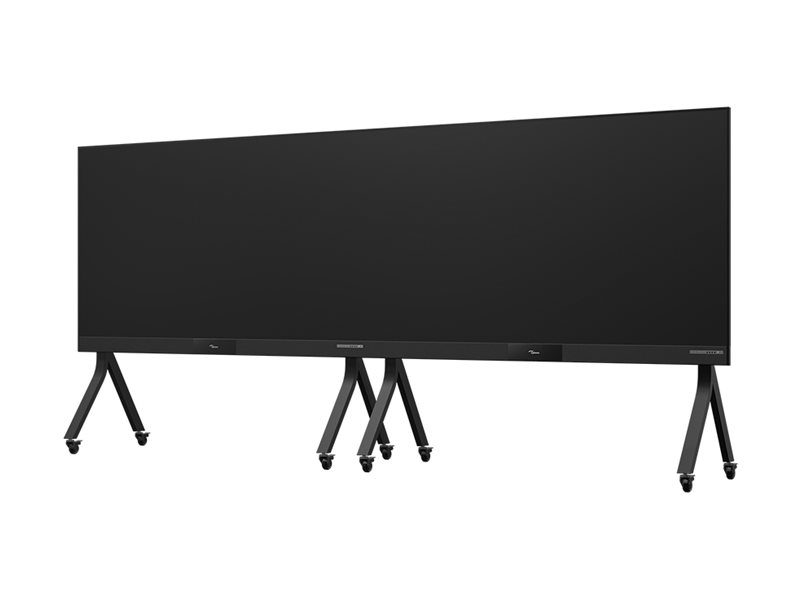

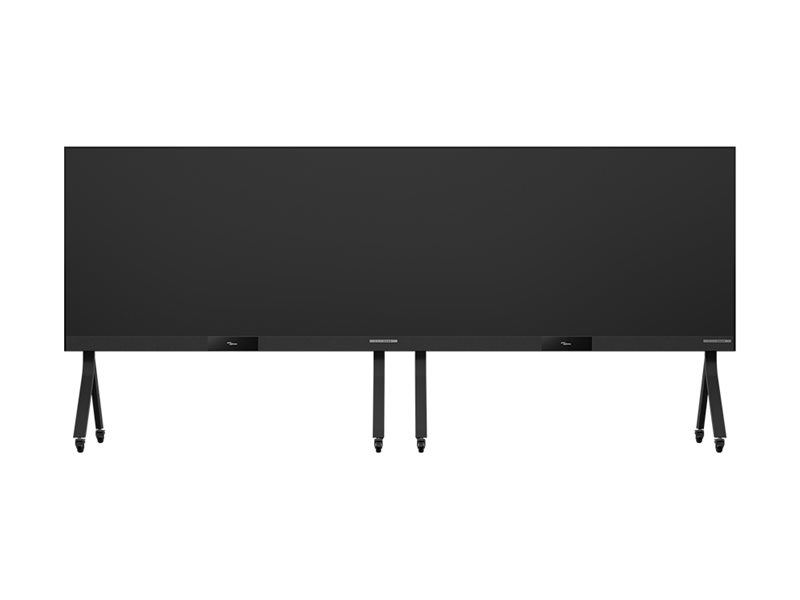

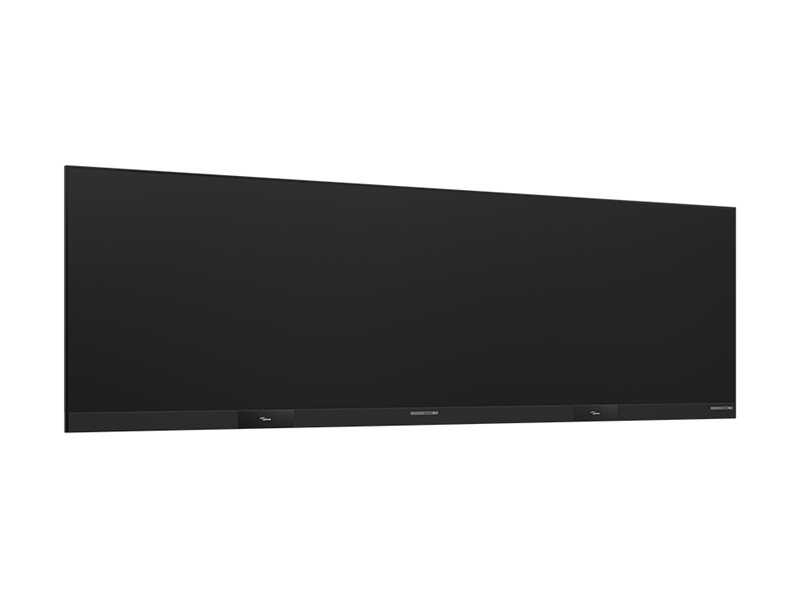

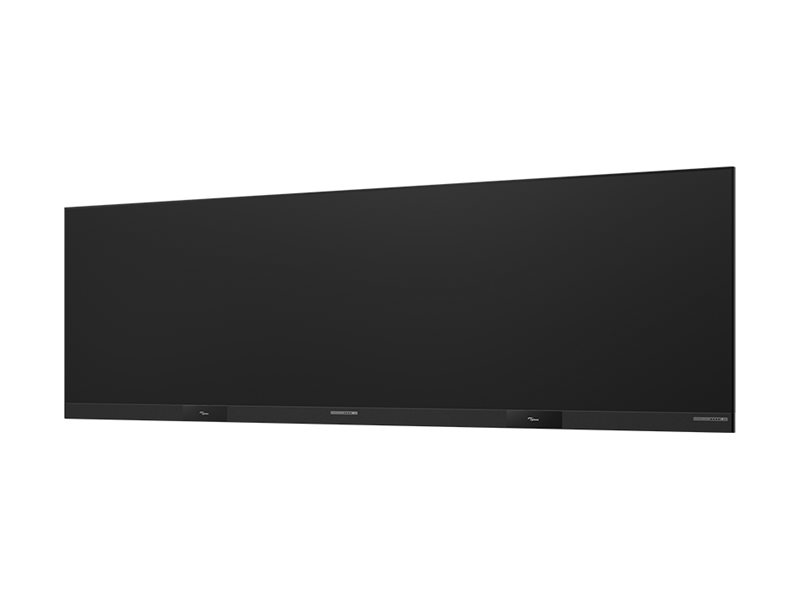

196" Diagonal Class LED display - interactive - Android - 1080p 1920 x 1080 - Direct View LED
| Main Specifications | |
|---|---|
| Product Description | Optoma ProScene UWC196 196" LED display - Full HD - for interactive communication |
| Product Type | LED display |
| Diagonal Class | 196" |
| Commercial Use | Yes - interactive |
| Platform | Android |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| PC Interface | USB-C, serial RS-232, USB 3.0 |
| LCD Backlight Technology | DLED backlight - Direct View LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Front access maintenance |
| Picture Enhancements | 92.42% DCI-P3 color gamut, 99.36% Rec.709 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 64 GB |
| USB | 4 ports |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 395 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 191.4 in x 1.2 in x 58.1 in |
| Weight | 350.53 lbs |
| General | |
| Product Type | LED display |
| Power Consumption (Max) | 1190 watt |
| Power Consumption Operational | 395 watt |
| Diagonal Class | 196" |
| Commercial Use | Yes - interactive |
| Platform | Android |
| Operating System | Android OS 13 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| PC Interface | USB-C, serial RS-232, USB 3.0 |
| Picture Enhancements | 92.42% DCI-P3 color gamut, 99.36% Rec.709 color gamut |
| Design | Sleek Design |
| Width | 191.4 in |
| Depth | 1.2 in |
| Height | 58.1 in |
| Weight | 350.53 lbs |
| Miscellaneous | |
| Compliant Standards | CB, ETL, FCC, RoHS, REACH, WEEE, IP65 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Display | |
| Pixel Pitch | 1.25 mm |
| LED Type | Flip-Chip CoB (Chip on Board) |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | DLED backlight - Direct View LED |
| Color Temperature | 2300 - 9300K |
| Image Contrast Ratio | 15000:1 |
| Brightness | 700 cd/m² |
| Viewing Angle | 165° |
| Viewing Angle (Vertical) | 165° |
| Commercial Features | Front access maintenance |
| Additional Features | 16-bit grayscale |
| Connections | |
| Connector Type | 4 x HDMI input ¦ 2 x USB 3.0 ¦ USB ¦ Audio input ¦ USB ¦ HDMI output ¦ Audio output ¦ LAN ¦ RS-232 ¦ Service |
| Remote Control | |

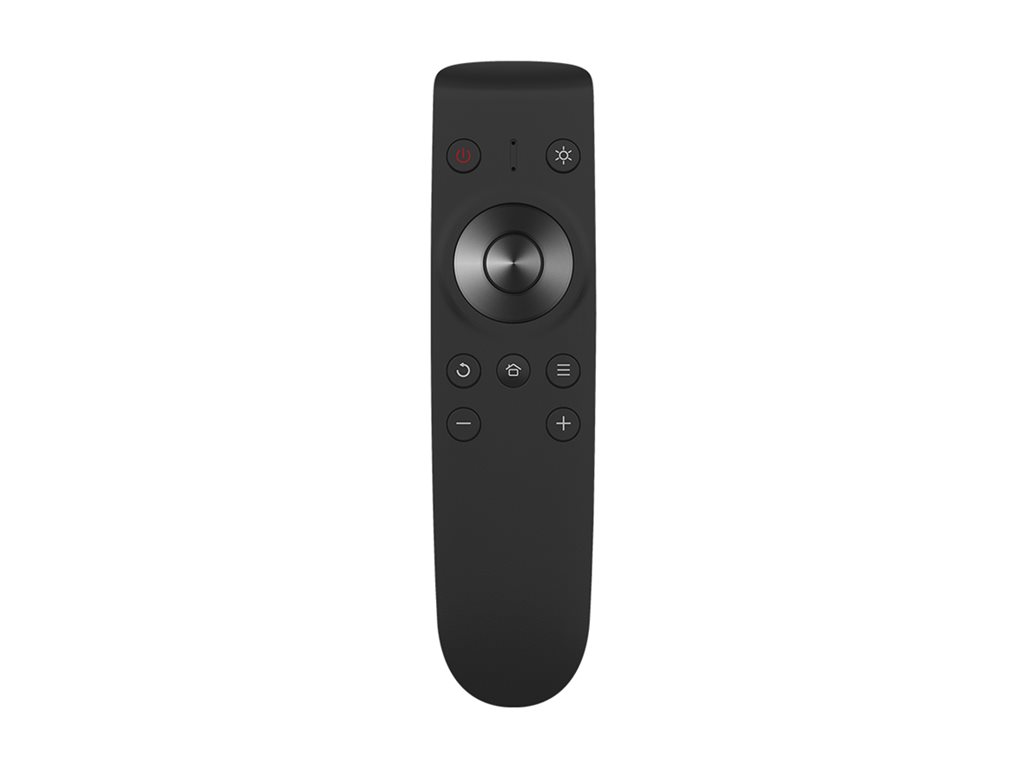

| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 60 watt |
| Speakers | 2 x speaker - 30 watt |
| Network & Internet Multimedia | |
| LAN Protocol | Gigabit Ethernet |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 4 |
| Configuration | 4 x ARM Cortex-A76 + 4 x ARM Cortex-A55 - 8 GB - 64 GB |
