NAS server - 24 bays - rack-mountable - RAID RAID F1, JBOD, 0, 1, 5, 6, 10 - RAM 32 GB - 10 Gigabit Ethernet - iSCSI support - 2U
| Main Specifications | |
|---|---|

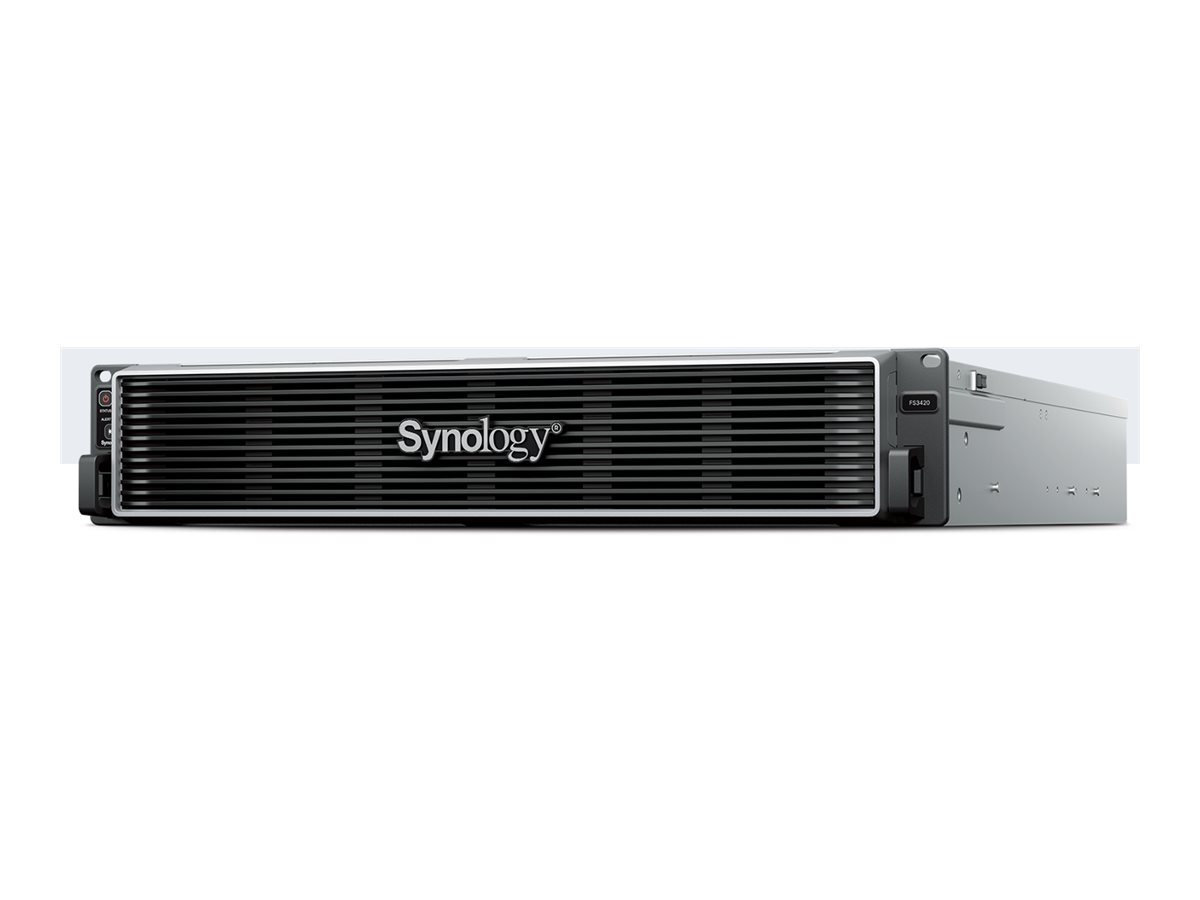

| Product Description | Synology FlashStation FS3420 - NAS server |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Max Supported Capacity | 1 PB |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Dimensions (WxDxH) | 19 in x 28.5 in x 3.5 in |
| Weight | 33.07 lbs () |
| Processor | 1 x Intel Xeon D-1739 3 GHz (8-core) |
| Storage Controller | RAID RAID RAID F1, JBOD, 0, 1, 5, 6, 10 |
| Hard Drive | NTFS formatted, exFAT formatted, FAT32 formatted |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, iSCSI |
| IP Cameras Supported | 285 |
| Performance | Maximum number of volume: 256 ¦ Local group account: 512 ¦ Local user account: 10240 ¦ Maximum number of shared folder: 512 ¦ Maximum number of shared folders syncing tasks: 32 |
| RAM | 32 GB |
| Power | AC 100-240 V (50/60 Hz) |
| System Requirements | Microsoft Windows Server 2022, Citrix Hypervisor 8.2 LTSR |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Max Supported Capacity | 1 PB |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Width | 19 in |
| Depth | 28.5 in |
| Height | 3.5 in |
| Weight | 33.07 lbs () |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 4.0 x8 |
| Interfaces | 2 x Ethernet 10Gb - RJ-45 ¦ 2 x USB 3.2 Gen 1 - Type A ¦ 1 x management - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | Built-in 4 cooling fans |
| Compliant Standards | RoHS |
| Included Accessories | Accessory pack, front cover |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, iSCSI |
| Network / Transport Protocol | SMB, NFS, FTP, SFTP, HTTPs, SMB v2, SMB v3, NFSv3, NFSv4, HTTP |
| Remote Management Protocol | SSH, LDAP |
| Network Services Compatibility | Apple File Protocol (AFP), Calendaring Extensions to WebDAV (CalDAV) |
| Performance | Maximum number of volume: 256 ¦ Local group account: 512 ¦ Local user account: 10240 ¦ Maximum number of shared folder: 512 ¦ Maximum number of shared folders syncing tasks: 32 |
| Features | Btrfs, EXT4 file system, WebDAV server, Rsync compatible, Windows ACL, NFS Kerberos authentication, firewall protection, shared folder encryption, SMB encryption, SFTP support, login auto block, Let's Encrypt |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2022, Citrix Hypervisor 8.2 LTSR |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 80% RH |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID F1, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Hard Drive | |
| Features | NTFS formatted, exFAT formatted, FAT32 formatted |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon D-1739 3 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.5 GHz |
| RAM | 32 GB (installed) / 192 GB (supported) - DDR4 |
| Security DVR | |
| IP Cameras Supported | 285 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1920x1080, 3840x2160 |
