NAS server - 16 bays - SATA 6Gb/s / U.2 - RAM 16 GB - 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
| Main Specifications | |
|---|---|

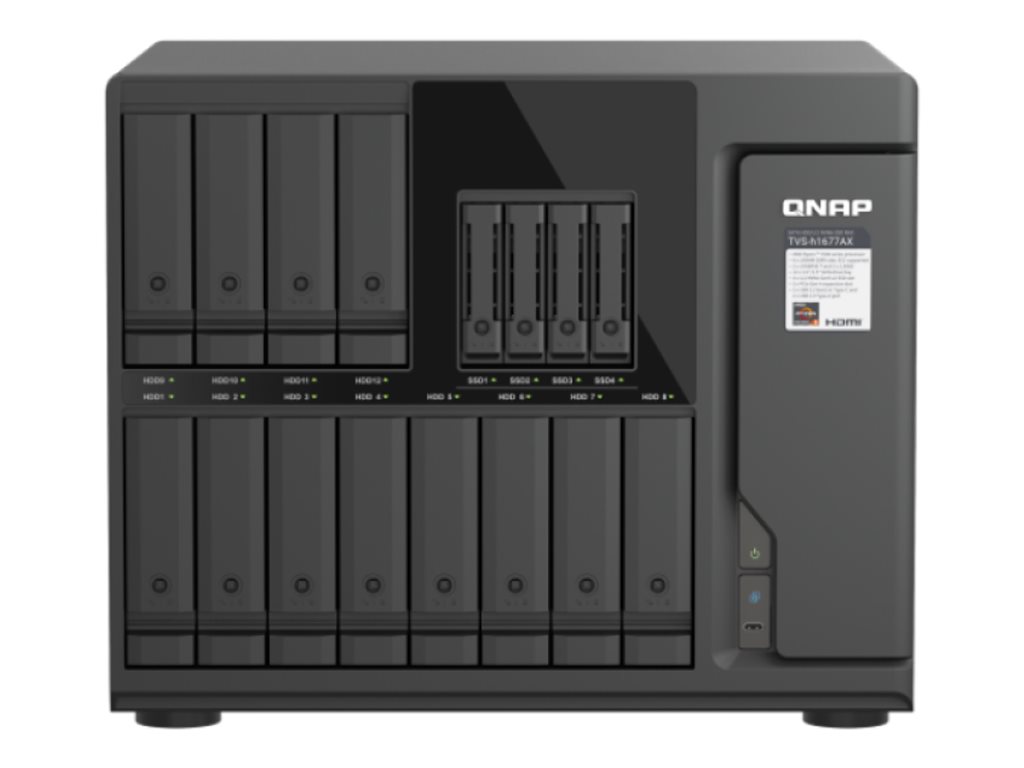

| Product Description | QNAP TVS-H1677AX - NAS server |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Dimensions (WxDxH) | 14.6 in x 12.6 in x 8.9 in |
| Weight | 24.25 lbs () |
| Localization | United States |
| Processor | 1 x AMD Ryzen 5 7000 (6-core) |
| Storage Controller | SATA 6Gb/s / U.2 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| RAM | 16 GB |
| Power | AC 100-240 V |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Width | 14.6 in |
| Depth | 12.6 in |
| Height | 8.9 in |
| Weight | 24.25 lbs () |
| Built-in Devices | Buzzer, 3 x 80 mm fans, 2 x 60 mm CPU fans |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 4.0 x8 ¦ 2 (total) / 2 (free) x PCI Express 4.0 x4 |
| Interfaces | 2 x 2.5 Gigabit Ethernet ¦ 2 x Ethernet 10Gb ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 - Type C ¦ 1 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| Encryption Algorithm | AES-NI |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Provided | 500 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Storage Controller | |
| Interface Type | SATA 6Gb/s / U.2 |
| Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen 5 7000 |
| Number of Cores | 6-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 5.1 GHz |
| RAM | 16 GB (installed) / 192 GB (supported) - DDR5 |
| Flash Memory Installed | 5 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 26.68 lbs |
