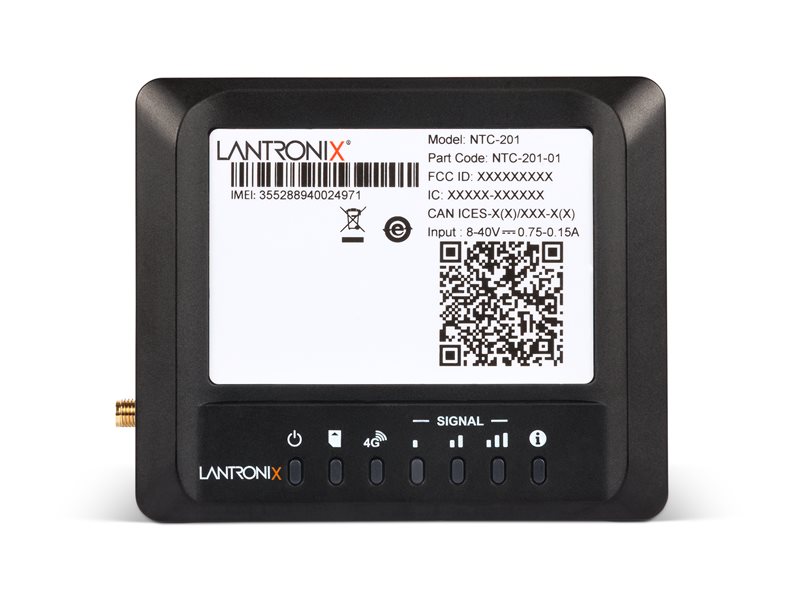

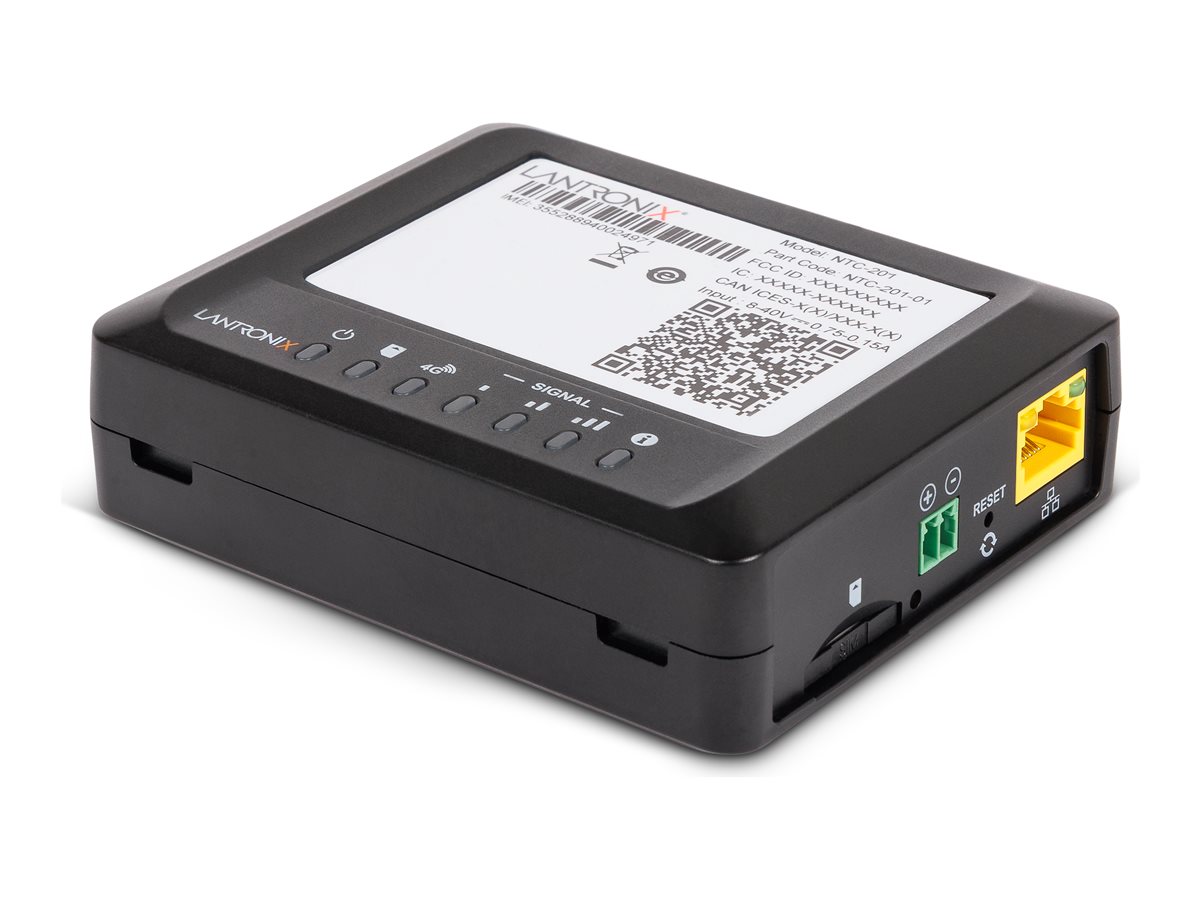

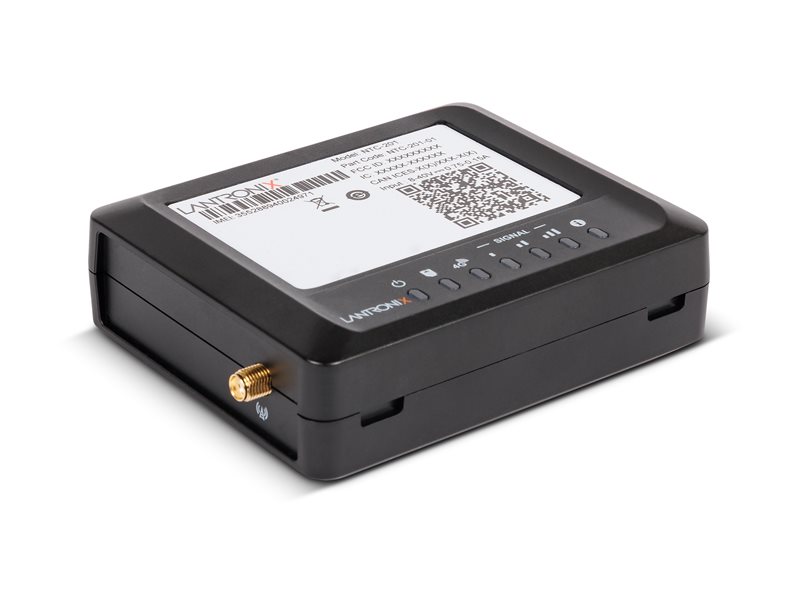

Wireless router 100GbE - 4G - DIN rail mountable
| Main Specifications | |
|---|---|
| Product Description | Lantronix NTC-201 Series - wireless router - LTE - 4G - DIN rail mountable |
| Device Type | Wireless router |
| Enclosure Type | DIN rail mountable |
| Cellular Protocol | 4G LTE |
| Generation | 4G |
| Cellular Band | LTE B1, LTE B2, LTE B3, LTE B12, LTE B13, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B5, LTE B66, LTE B7, LTE B8 |
| WAN Ports Qty | 1 |
| Data Link Protocol | LTE, 100 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | HTTPs, IPSec, DHCP |
| Routing Protocol | Static IP routing, GRE |
| Remote Management Protocol | SNMP, TR-069, SNMP 1, SNMP 2, SNMP 3, SSH, TLS 1.3 |
| Features | Static routing, dynamic DNS, Address Reservation, DHCP Option 150, DHCP Option 160, DHCP Option 42, DHCP Option 66, DHCP relay, DHCP server, DoS attack prevention, GRE VPN tunnels, IPSec VPN tunnel, OpenVPN client, OpenVPN server, VRRP support, web-based UI, LwM2M support, password protection, SNMP v1/v2c/v3 (MIB-II) support, SSH command line interface, ping watchdog, log viewer, NTP server |
| Power | DC 8-40 V |
| Dimensions (WxDxH) | 3.5 in x 4.1 in x 1.4 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Wireless router |
| Enclosure Type | DIN rail mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | LTE, 100 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | HTTPs, IPSec, DHCP |
| Routing Protocol | Static IP routing, GRE |
| Remote Management Protocol | SNMP, TR-069, SNMP 1, SNMP 2, SNMP 3, SSH, TLS 1.3 |
| Features | Static routing, dynamic DNS, Address Reservation, DHCP Option 150, DHCP Option 160, DHCP Option 42, DHCP Option 66, DHCP relay, DHCP server, DoS attack prevention, GRE VPN tunnels, IPSec VPN tunnel, OpenVPN client, OpenVPN server, VRRP support, web-based UI, LwM2M support, password protection, SNMP v1/v2c/v3 (MIB-II) support, SSH command line interface, ping watchdog, log viewer, NTP server |
| Compliant Standards | IP40 |
| Processor | 1 x ARM Cortex-A8 |
| RAM | 256 MB |
| Flash Memory | 512 MB |
| Status Indicators | Power, SIM status, 4G, signal strength |
| Expansion / Connectivity | |
| Interfaces | Antenna: 1 x SMA ¦ LAN: 1 x 100Gb Ethernet - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x Mini-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Terminal block connector, DIN-rail bracket, DIN-rail mounting, Ethernet cable, cellular antenna |
| Power | |
| Voltage Required | DC 8-40 V |
| Software / System Requirements | |
| Software Included | Software Development Kit (SDK) |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 95% |
| Communications | |
| Cellular Protocol | 4G LTE |
| Generation | 4G |
| Cellular Band | LTE B1, LTE B2, LTE B3, LTE B12, LTE B13, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B5, LTE B66, LTE B7, LTE B8 |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 4.1 in |
| Height | 1.4 in |
| Antenna | |
| Antenna | External detachable |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 1 |
