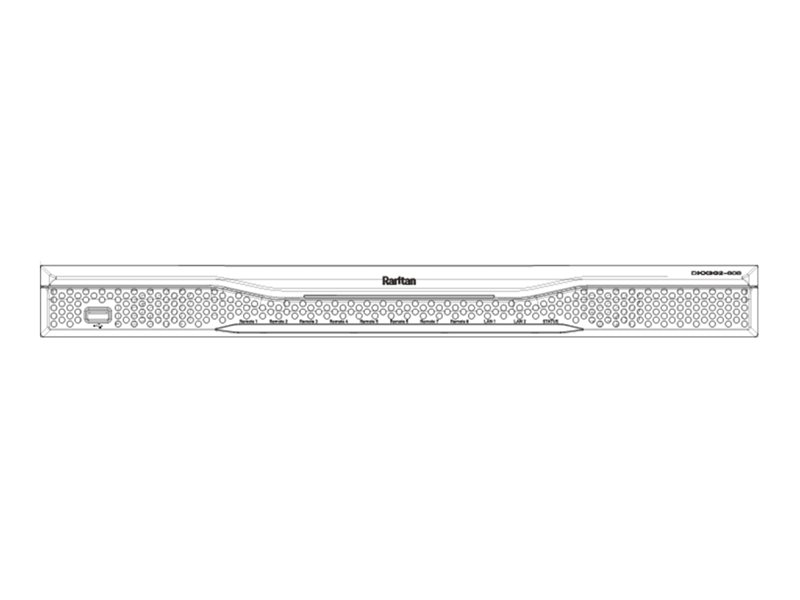

KVM switch - CAT5 - 16 x KVM port(s) - 1 local user - 4 IP users - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Raritan Dominion KX III G2 DKX3G2-416 - KVM switch - 16 ports - rack-mountable |
| Device Type | KVM switch - 16 ports - CAT5 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Users Qty | 1 local user, 4 IP users |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, UDP, RADIUS, DHCP, Syslog |
| Features | IPv4 and IPv6 dual stack, SNTP support, 2-factor authentication, 802.1x authentication, BIOS support |
| Power | AC 100-240 V (50/60 Hz) 1.8 A |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 13.1 in x 1.7 in |
| Weight | 9.83 lbs |
| Color | Black, gray |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM switch - 16 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 4 IP users |
| Server Connection Via Twisted Pair | CAT5 |
| Keyboard / Mouse Interface | USB |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, UDP, RADIUS, DHCP, Syslog |
| Encryption Algorithm | 256-bit AES, FIPS 140-2, DES, PBKDF2, TLS |
| Authentication Method | Internal user database, LDAP, RADIUS, AD |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Features | IPv4 and IPv6 dual stack, SNTP support, 2-factor authentication, 802.1x authentication, BIOS support |
| RAM | 2 GB SDRAM |
| Flash Memory | 8 GB |
| Status Indicators | Activity, power, status |
| Expansion / Connectivity | |
| Interfaces | 16 x KVM RJ-45 ¦ 2 x 10/100/1000Base-T RJ-45 ¦ 4 x USB Type A ¦ 1 x cascading RJ-45 ¦ 1 x serial DB-9 ¦ 1 x HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black, gray |
| Rack Mounting Kit | Included |
| MTBF | 8,976,236 hours |
| Compliant Standards | BSMI, EMI FCC Class A, ICES-003, KCC, Mexico NOM, Morocco, UKCA, UL, VCCI-A |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 1.8 A |
| Power Consumption Operational | 35 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 85% RH |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 176 °F |
| Humidity Range Storage | 0 - 95% RH |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 13.1 in |
| Height | 1.7 in |
| Weight | 9.83 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.7 in |
| Shipping Depth | 18.1 in |
| Shipping Height | 6 in |
| Shipping Weight | 15.72 lbs |
