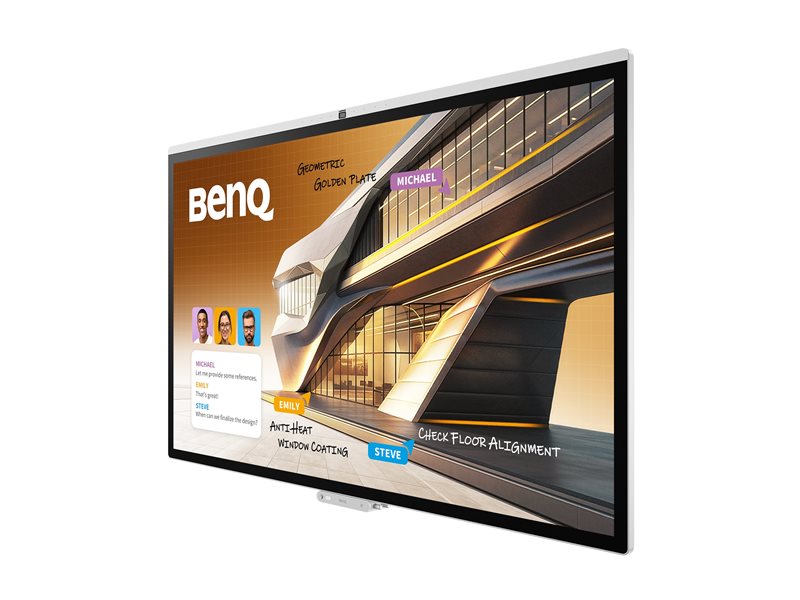

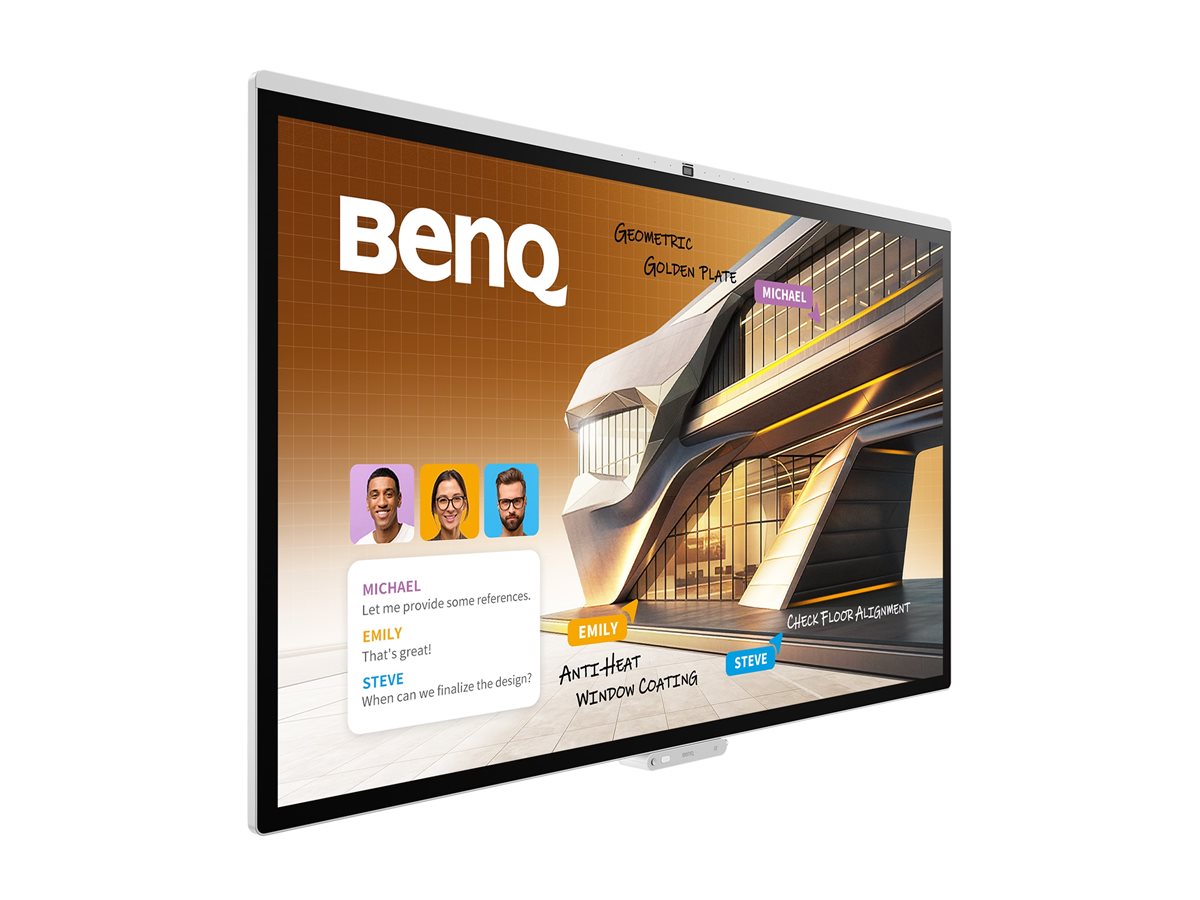

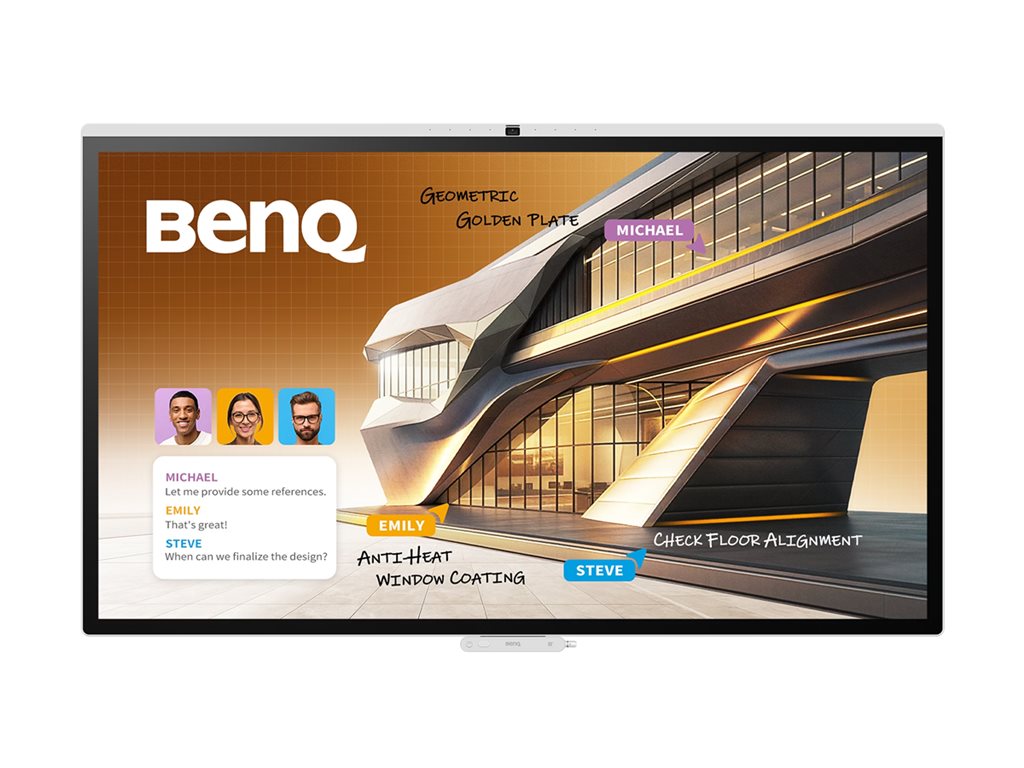

75" Diagonal Class CP05 Series LED-backlit LCD display - interactive - with built-in interactive whiteboard, touchscreen (multi touch), 50MP camera and 8-microphone array - Android - 4K UHD (2160p) 3840 x 2160
| Main Specifications | |
|---|---|
| Product Description | BenQ Board CP7505 CP05 Series - 75" LED-backlit LCD display - 4K - for interactive communication |
| Product Type | LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch), 50MP camera and 8-microphone array |
| Diagonal Class | 75" |
| Commercial Use | Yes - interactive |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| Connectivity | LAN, Wi-Fi, Bluetooth, NFC |
| PC Interface | USB-C |
| Technology | ADS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Open Pluggable Standard (OPS) support, BenQ Account Management System (AMS), BenQ Device Management Solution (DMS) |
| Picture Enhancements | 90% Color Gamut NTSC |
| Speaker System | 2 speakers, subwoofer |
| Storage Capacity | 256 GB |
| USB | 4 ports |
| Included Accessories | Remote control, X.Sign Broadcast, Floating Tool, 2 styluses |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 135 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 67.3 in x 5.1 in x 41.8 in |
| Weight | 99.43 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 135 watt |
| Diagonal Class | 75" |
| Commercial Use | Yes - interactive |
| Combined With | Built-in interactive whiteboard, touchscreen (multi touch), 50MP camera and 8-microphone array |
| Series | CP05 Series |
| Platform | Android |
| Operating System | Android OS 15 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), Infrared (IR), NFC sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| PC Interface | USB-C |
| Modes | Landscape mode |
| Picture Enhancements | 90% Color Gamut NTSC |
| Protection | Germ-resistant |
| Width | 67.3 in |
| Depth | 5.1 in |
| Height | 41.8 in |
| Weight | 99.43 lbs |
| Miscellaneous | |
| Included Accessories | X.Sign Broadcast, Floating Tool, 2 styluses |
| Cables Included | HDMI cable - 10 ft ¦ RS232 cable - 6 ft ¦ USB-C cable - 5 ft |
| Compliant Standards | Google EDLA, Pantone Validated, Pantone Skintone Validated |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Display | |
| LCD Display Technology | ADS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 9H Hard, nano-ionic silver coating |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 50000:1 |
| Brightness | 450 cd/m² |
| Touchpoints Qty | 50 |
| Response Time | 8 ms |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Open Pluggable Standard (OPS) support, BenQ Account Management System (AMS), BenQ Device Management Solution (DMS) |
| Operation Hours / Days | 18 / 7 |
| Additional Features | 10-bit support, capacitive touch technology, Flicker free technology, Low Blue Light Technology, EZWrite 6 software |
| Connections | |
| Connector Type | HDMI input ¦ 3 x USB 3.0 ¦ USB-C 2.0 ¦ USB-C with 65W Power Delivery ¦ Audio line-out ¦ Gigabit LAN ¦ RS-232 |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers, subwoofer |
| Output Power / Total | 90 watt |
| Speakers | 2 x speaker - 25 watt ¦ 1 x subwoofer - 40 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 73.3 in |
| Depth (Shipping) | 8.1 in |
| Height (Shipping) | 46.1 in |
| Weight (Shipping) | 128.31 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi, Bluetooth, NFC |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11ax |
| Bluetooth Version | Bluetooth 5.4 |
| Connect & Share | InstaShare 2 |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Flat Panel Mount Interface | 800 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 4 |
| Configuration | 2 x ARM Cortex-A78 + 6 x ARM Cortex-A55 - 16 GB - 256 GB - Mali G57 MC2 |
