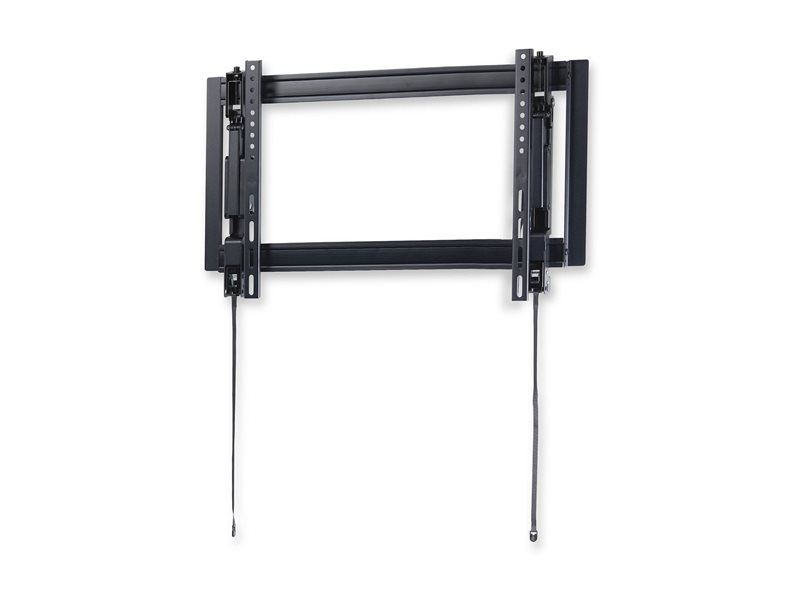

Mounting kit (2 horizontal elements, 2 vertical brackets, left side mount, right side mount) - extendable - for flat panel - UL listed, for up to 176lb (80kg), easy rear access, laterally adjustable bracket supports up to VESA 600x400 - steel - black - screen size: 37"-65" - wall-mountable
| Main Specifications | |
|---|---|
| Product Description | Startech mounting kit - extendable - for flat panel - UL listed, for up to 176lb (80kg), easy rear access, laterally adjustable bracket supports up to VESA 600x400 - black |
| Product Type | Mounting kit (extendable) - wall-mountable |
| Mounting Components | 2 horizontal elements, 2 vertical brackets, left side mount, right side mount |
| Dimensions (WxDxH) | 28.5 in x 2.1 in x 13.8 in |
| Tilt | -15° to 10° |
| Swivel | -10° to 10° |
| Adjustments | Tilt, swivel, height |
| Weight | 33.4 lbs |
| Recommended Use | Flat panel |
| Recommended Display Size | 37"-65" |
| VESA Mounting Interface | 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 400 mm |
| Max Load Weight | 176.4 lbs |
| Material | Steel |
| Color | Black |

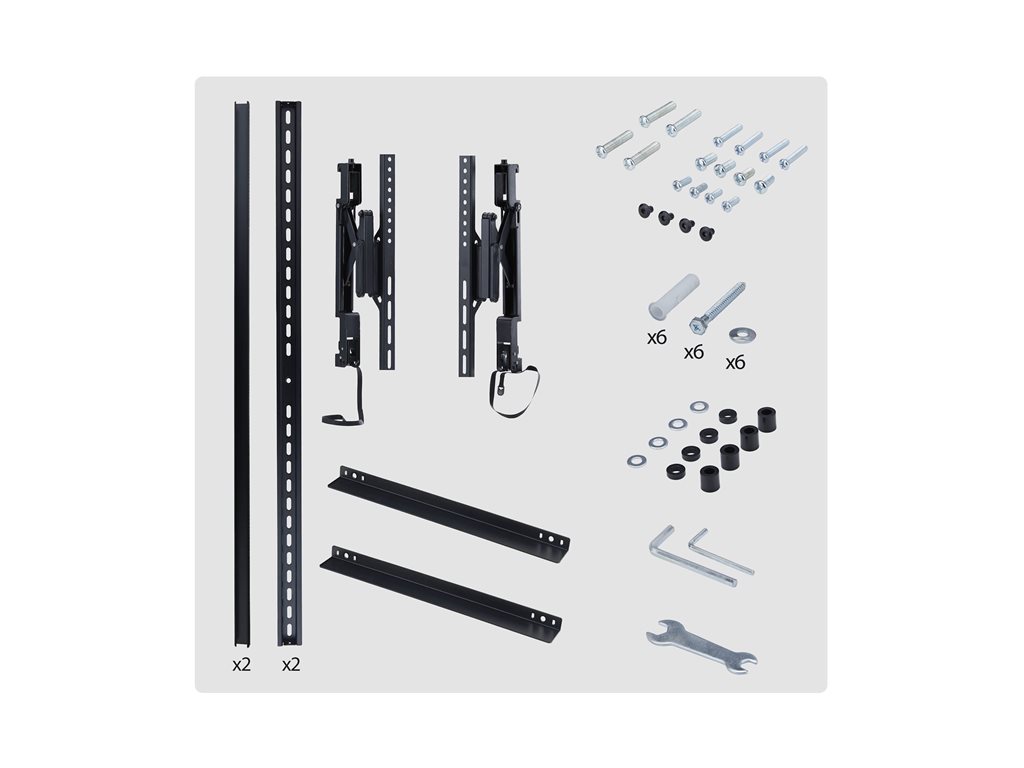

| Package Content | Level, spirit level, hex key (4mm), hex key (6mm), wrench, 4 x M6 x 8 mm screws, 4 x M6 x 14 mm screws, 4 x M8 x 16 mm screws, 4 x M6 x 30 mm screws, 4 x M8 x 35 mm screws, 4 x washers, 4 x spacers (small), 4 x spacers (short), 4 x spacers (large), 4 x spacers (long), 6 wall mounting screws, 6 wall mounting washers, 6 x wall anchors, mounting template |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Width | 28.5 in |
| Depth | 2.1 in |
| Height | 13.8 in |
| Weight | 33.4 lbs |
| Material | Steel |
| Color | Black |
| Package Content | Level, spirit level, hex key (4mm), hex key (6mm), wrench, 4 x M6 x 8 mm screws, 4 x M6 x 14 mm screws, 4 x M8 x 16 mm screws, 4 x M6 x 30 mm screws, 4 x M8 x 35 mm screws, 4 x washers, 4 x spacers (small), 4 x spacers (short), 4 x spacers (large), 4 x spacers (long), 6 wall mounting screws, 6 wall mounting washers, 6 x wall anchors, mounting template |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Technical support - assistance - lifetime |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | 2 horizontal elements, 2 vertical brackets, left side mount, right side mount |
| Design | Extendable |
| Recommended Use | Flat panel |
| Placing / Mounting | Wall-mountable |
| VESA Mounting Interface | 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 400 mm |
| Cable Management | Integrated cable management |
| Recommended Display Size | 37"-65" |
| Tilt | -15° to 10° |
| Swivel | -10° to 10° |
| Adjustments | Tilt, swivel, height |
| Max Load Weight | 176.4 lbs |
| Dimensions & Weight Details | |
| Dimensions | Adjustable mounting arm (minimum) - depth: 2.1 in ¦ Adjustable mounting arm (maximum) - depth: 6.8 in |
| Shipping Dimensions (WxDxH) / Weight | 30.4 in x 5.2 in x 3 in / 12.35 lbs |
| Compliant Standards | UL2442, UL |
