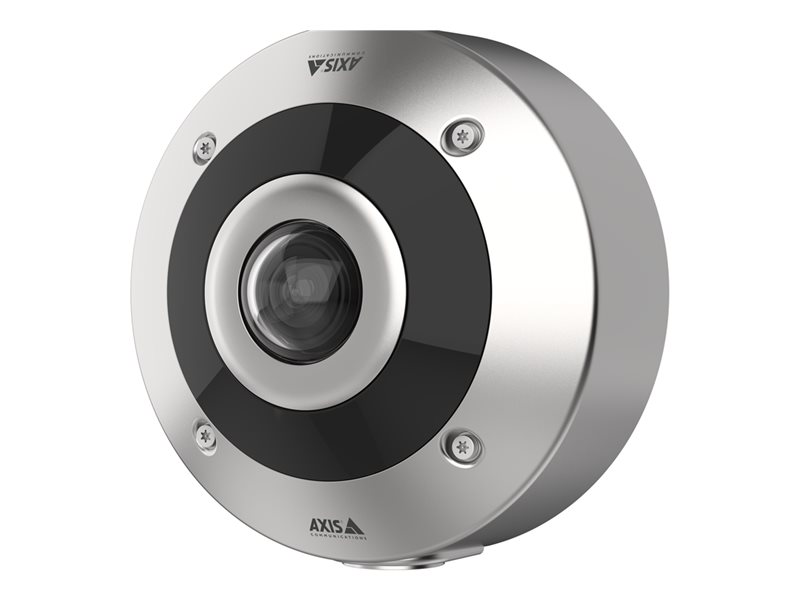

Network panoramic camera - fisheye - outdoor - vandal-proof - color (Day&Night) - 6 MP - 2464 x 2464 - fixed iris - LAN 10/100 - H.264, H.265, AV1 - PoE Class 4 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS M43 Series AXIS M4337-SPLVE - network panoramic camera - fisheye - TAA Compliant |
| Device Type | Network panoramic camera - fixed - fisheye - outdoor - vandal-proof |
| Weight | 4.14 lbs |
| Color | Stainless steel |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2464 x 2464 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | RGB CMOS - 1/1.6" - 6 MP |
| Minimum Illumination | 0.08 lux - color - F2.0 - 50 IRE ¦ 0 lux - B&W - F2.0 - 50 IRE |
| Focal Length | 1.7 mm |
| Lens Iris | F/2.0 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 4 |
| Features | Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, Lightfinder technology, Forensic WDR, signed OS, secure boot, OptimizedIR, Zipstream technology, automatic IR-cut filter, >55 dB SNR, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, programmable exposure zones, Defog, compression, dynamic text overlay, widget overlay, target aperture, digital PTZ function, ARTPEC-9 chipset, deep learning processing unit (DLPU) |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 122 °F; 10 - 100% RH (condensing) relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Form Factor | Fisheye |
| Connectivity Technology | Wired |
| Weight | 4.14 lbs |
| Localization | Argentina, Australia, Brazil, China, European Union, India, Korea, United Kingdom, United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | IK10, IP66, IP67, IP68, IP6K9K, BFR-free, CFR free, PVC-free, UL, cUL, KC, VCCI, RCM, BSMI, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC 60529, ISO 20653, IEC/EN 62262, ISO 21207 method B, NEMA 250 Type 4X, NEMA TS-2, NFS/ANSI Standard 169, NIST SP500-267, ETSI EN 303 645, BSI, FIPS 140, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, ICES Class A, NMB-003 Class A, KS C 9835, KS C 9832 Class A, FCC Part15 Subpart B Class B (U.S.A.), CNS 15936, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition |
| Color | Stainless steel |
| Power | |
| Power Requirements | PoE Class 4 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Digital Video Format | H.264, H.265, AV1 |
| Max Digital Video Resolution | 2464 x 2464 |
| Motion Detection | Yes |
| Exposure Range | 1/111000 sec |
| Minimum Illumination | 0.08 lux - color - F2.0 - 50 IRE ¦ 0 lux - B&W - F2.0 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Frame Rate (max) | 60 frames per second |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Features | Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, Lightfinder technology, Forensic WDR, signed OS, secure boot, OptimizedIR, Zipstream technology, automatic IR-cut filter, >55 dB SNR, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, programmable exposure zones, Defog, compression, dynamic text overlay, widget overlay, target aperture, digital PTZ function, ARTPEC-9 chipset, deep learning processing unit (DLPU) |
| Lens Construction | |
| Focal Length | 1.7 mm |
| Lens Iris | F/2.0 fixed iris |
| Horizontal Field of View (degree) | 185 |
| Vertical Field of View (degree) | 185 |
| Image Sensor | |
| Type | 6 MP RGB CMOS 1/1.6" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
