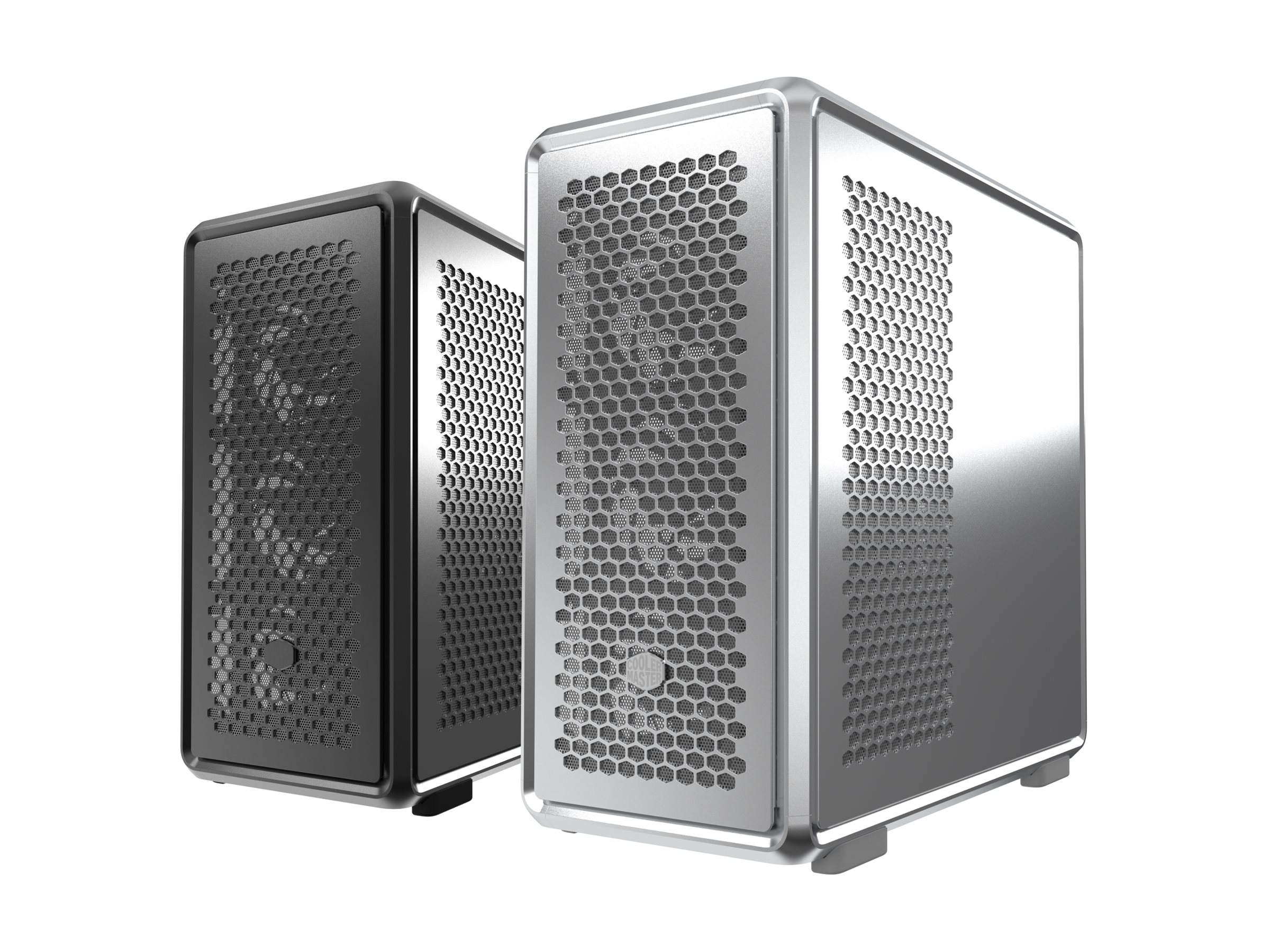

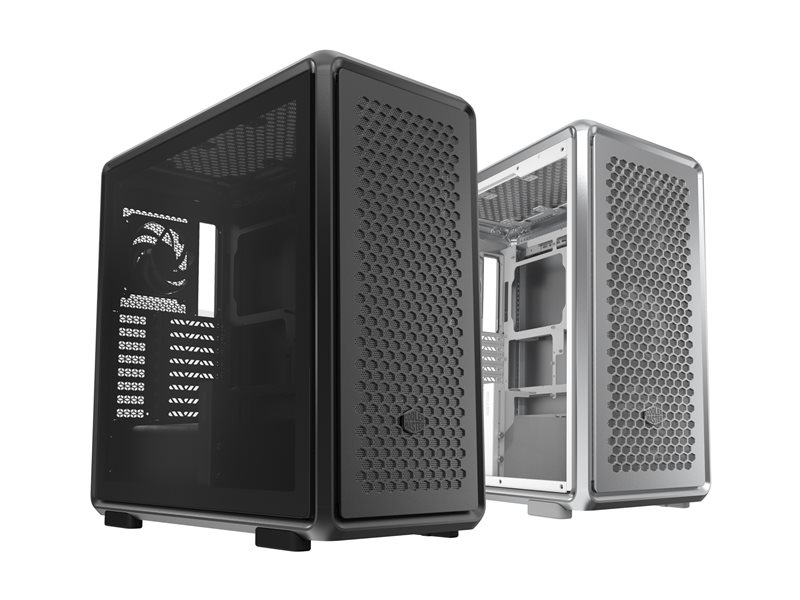

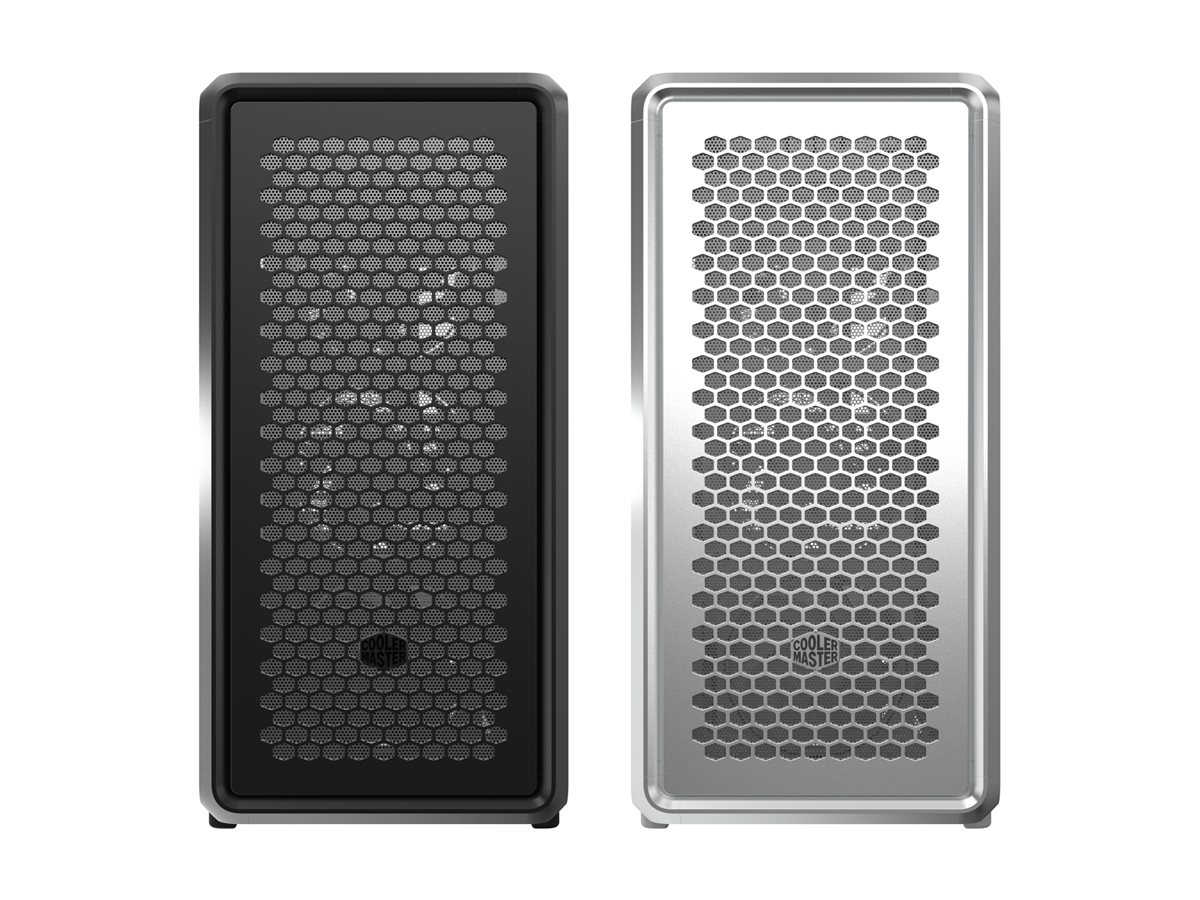

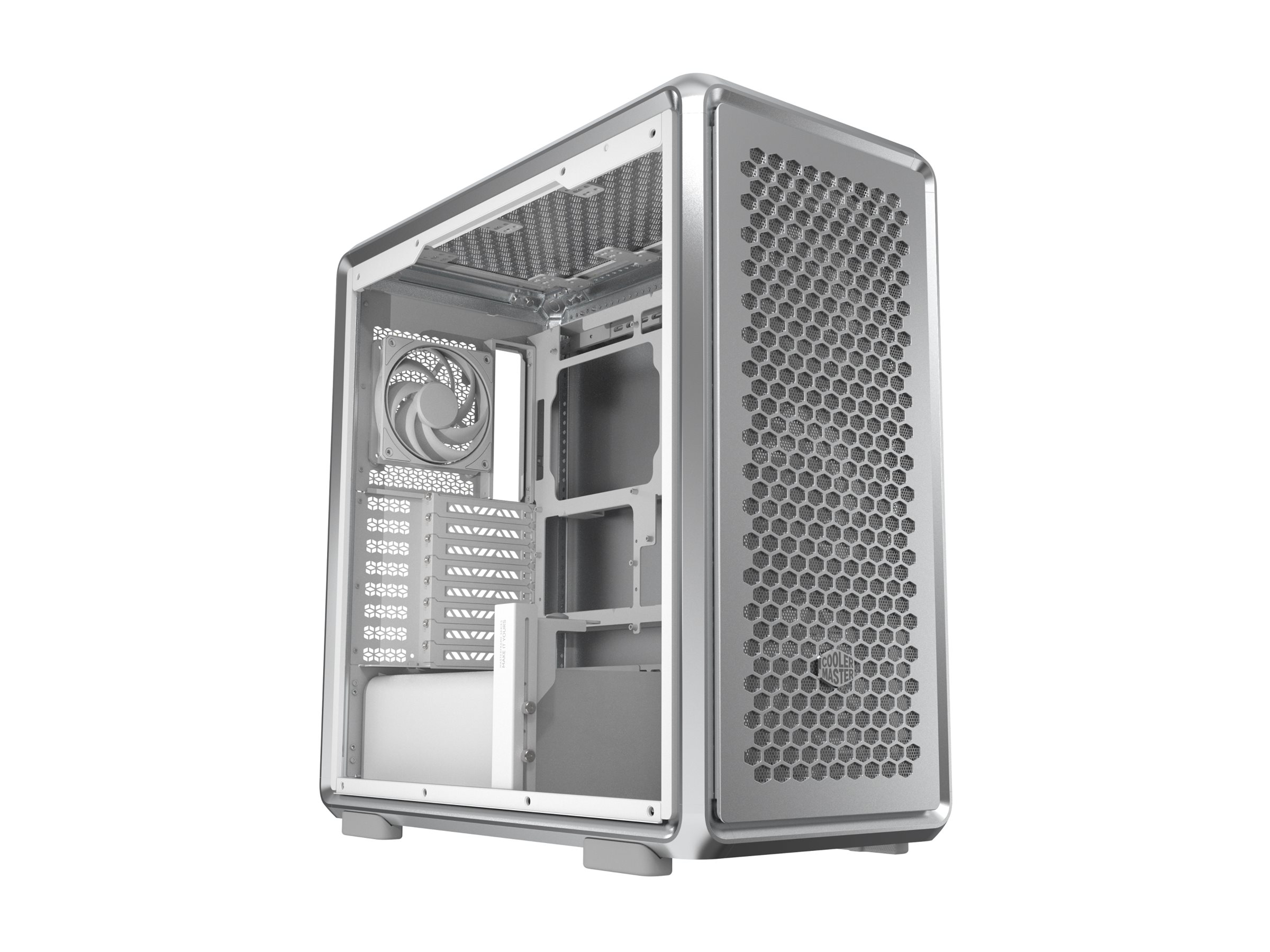

Mid tower - SSI CEB - windowed side panel (tempered glass) - no power supply (ATX) - silver - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | Cooler Master MasterFrame 600 - mid tower - SSI CEB |
| Product Type | System cabinet |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes, tempered glass |
| Color | Silver |
| I/O Connectors | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone |
| Supported Motherboards | Extended ATX, microATX, ATX, Mini-DTX, Mini-ITX |
| System Cabinet Features | FreeForm 2.0 modular system, bottom dust filter, front dust filter, top panel dust filter, side panel dust filter, cable management system (43 mm clearance) |
| Power Device | No power supply (ATX) |
| Dimensions (WxDxH) | 10.3 in x 20.9 in x 21.4 in |
| Weight | 26.46 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | SSI CEB |
| Supported Motherboards | Extended ATX, microATX, ATX, Mini-DTX, Mini-ITX |
| Internal Bays Qty | 5 |
| Product Material | Tempered glass, aluminum, steel |
| Color | Silver |
| Cooling System | Front: 140 mm fan x 3 / ARGB fan, 2 x 200 mm, 2 x 180, 3 x 120 mm fan supported or 120/140/240/280/360/420 mm radiator supported ¦ Rear: 120 mm fan x 1 / ARGB fan, 120 mm radiator supported ¦ Top: 120 mm fan mount x 3 / 1 x 200 mm, 2 x 180 mm, 2 x 140 mm fan supported or 120/140/240/280/360/420 mm radiator supported ¦ Side: 120 mm fan mount x 3 / 3 x 140 mm fan supported or 120/140/240/280/360/420 mm radiator supported |
| CPU Cooler Max Height | 190 mm |
| Video Card Max Length | 485 mm |
| Power Supply Max Length | 235 mm |
| System Cabinet Features | FreeForm 2.0 modular system, bottom dust filter, front dust filter, top panel dust filter, side panel dust filter, cable management system (43 mm clearance) |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 3 (total) / 3 (free) x internal - 2.5" |
| Expansion Slots | 8 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 10.3 in |
| Depth | 20.9 in |
| Height | 21.4 in |
| Weight | 26.46 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.5 in |
| Shipping Depth | 25.1 in |
| Shipping Height | 25.7 in |
| Shipping Weight | 33.07 lbs |
