Server - embedded computer 1-way - 1 x EPYC 4545P / up to 5.4 GHz - RAM 32 GB - SSD 960 GB - NVMe - Radeon Graphics - Gigabit Ethernet - no OS - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | Supermicro Gold Series IoT SuperServer AS-E300-14GR-01-G2 - embedded computer EPYC 4545P 3 GHz - 32 GB - SSD 960 GB |
| Type | Server - embedded computer |
| Server Scalability | 1-way |
| Processor | 1 x AMD EPYC 4545P / 3 GHz (up to 5.4 GHz, (16-core) |
| Processor Socket | LGA1718 Socket |
| Cache Memory | 64 MB L3 cache |
| Cache Per Processor | 64 MB |
| RAM | 32 GB (installed) / 192 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 960 GB - PCI Express 4.0 (NVMe) - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | AMD Radeon Graphics |
| Networking | 1GbE |
| Power | (47 - 63 Hz) |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 10.4 in x 8.9 in x 1.7 in |
| Weight | 3.53 lbs |
| General | |
| Type | Server |
| Product Form Factor | Embedded computer |

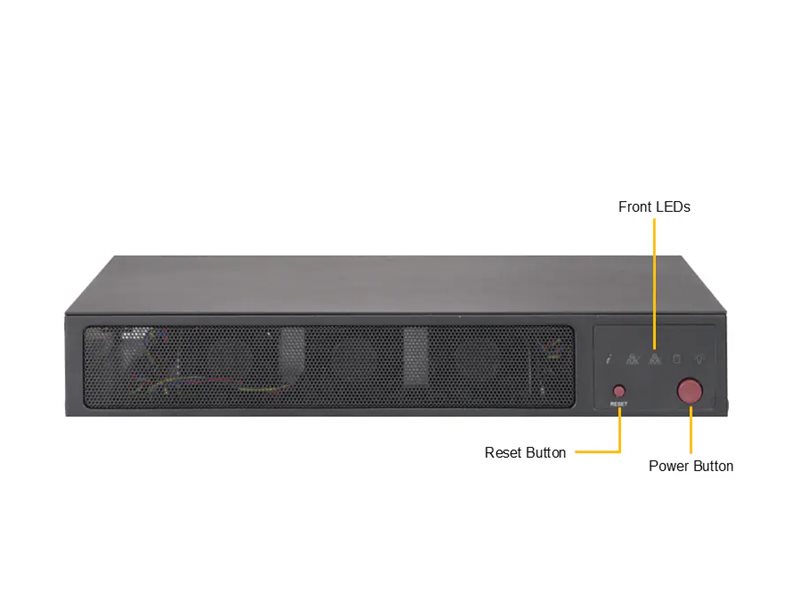

| Built-in Devices | Air cooling solution, 2 x 40 mm fan, LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2280 (PCIe 5.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 22110 (PCIe 5.0 x4 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - low-profile |

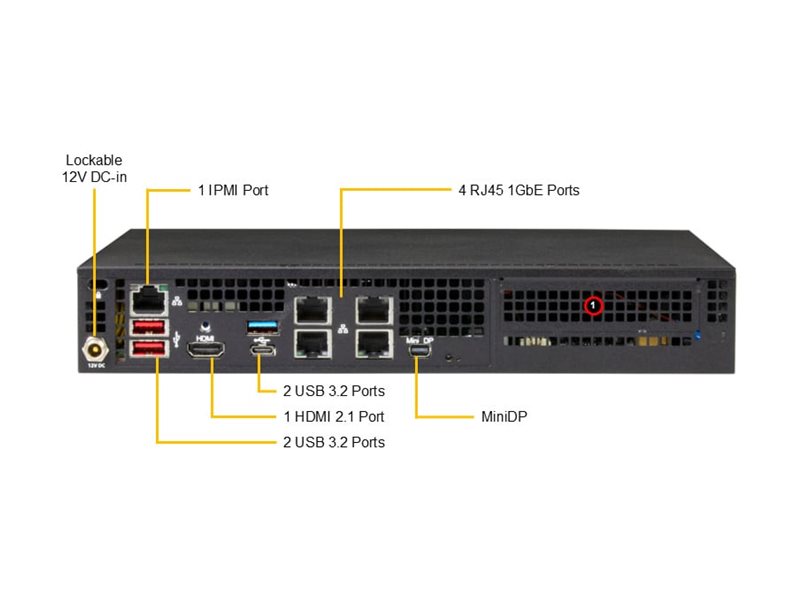

| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) ¦ 2 x USB 3.2 Gen 2 (2 rear) ¦ 1 x USB 3.2 Gen 1 (1 rear) ¦ 1 x Mini-HDMI (1 rear) ¦ 1 x DisplayPort (1 rear) |
| RAM | |
| Installed Size | 32 GB (installed) / 192 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-AM4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (47 - 63 Hz) |
| Power Provided | 180 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | L3 cache - 64 MB |
| Cache Per Processor | 64 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 960 GB |
| Interface Type | PCI Express 4.0 (NVMe) |
| Features | NVM Express (NVMe) |

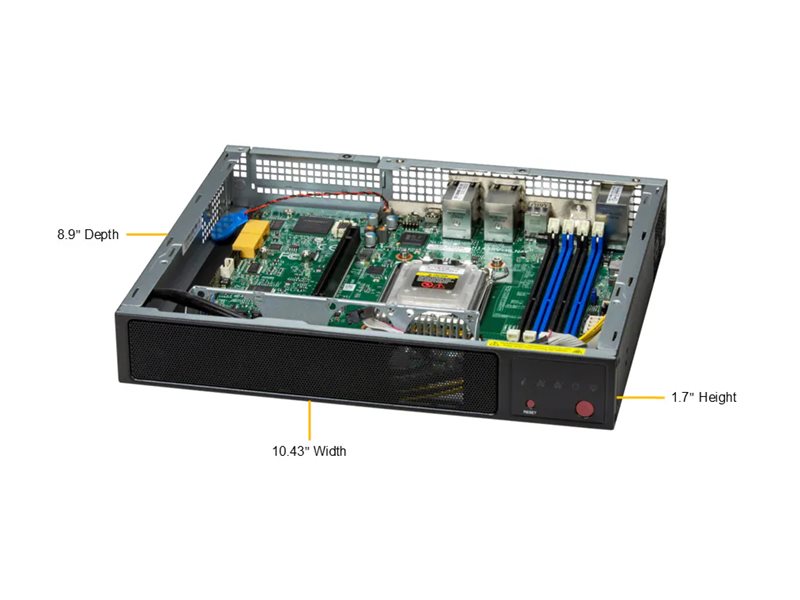

| Dimensions & Weight | |
| Width | 10.4 in |
| Depth | 8.9 in |
| Height | 1.7 in |
| Weight | 3.53 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15 in |
| Shipping Depth | 10.9 in |
| Shipping Height | 5.6 in |
| Shipping Weight | 7.5 lbs |
| Processor / Chipset | |
| CPU | AMD EPYC 4545P |
| Clock Speed | 3 GHz |
| Max Turbo Speed | 5.4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Socket | LGA1718 Socket |
| Chipset Type | AMD B650 |
| Motherboard Name | Supermicro H14SRV-HLN4F |
