Server - embedded computer 1-way - 1 x Core Ultra 5 245 / up to 5.1 GHz - RAM 32 GB - SSD 960 GB - NVMe - Intel Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none - black
| Main Specifications | |
|---|---|

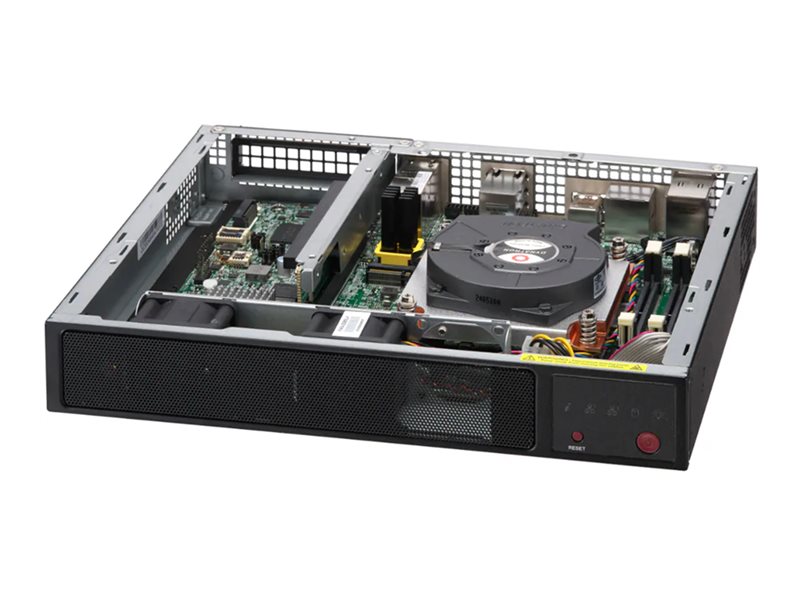

| Product Description | Supermicro Gold Series SuperServer E300-14AR-01-G2 - embedded computer Core Ultra 5 245 3.5 GHz - 32 GB - SSD 960 GB |
| Type | Server - embedded computer |
| Server Scalability | 1-way |
| Processor | 1 x Intel Core Ultra 5 (Series 2) 245 / 3.5 GHz (up to 5.1 GHz, (14-core) |
| Processor Socket | LGA1851 Socket |
| Processor Main Features | Intel Smart Cache, Intel Deep Learning Boost (DL Boost) |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | 32 GB (installed) / 96 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 960 GB - PCI Express - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Graphics - up to 8 TOPS |
| Networking | 1GbE, 2.5GbE, 5GbE, 10GbE |
| Power | (47 - 63 Hz) |
| OS Provided | No operating system |
| Color | Black |

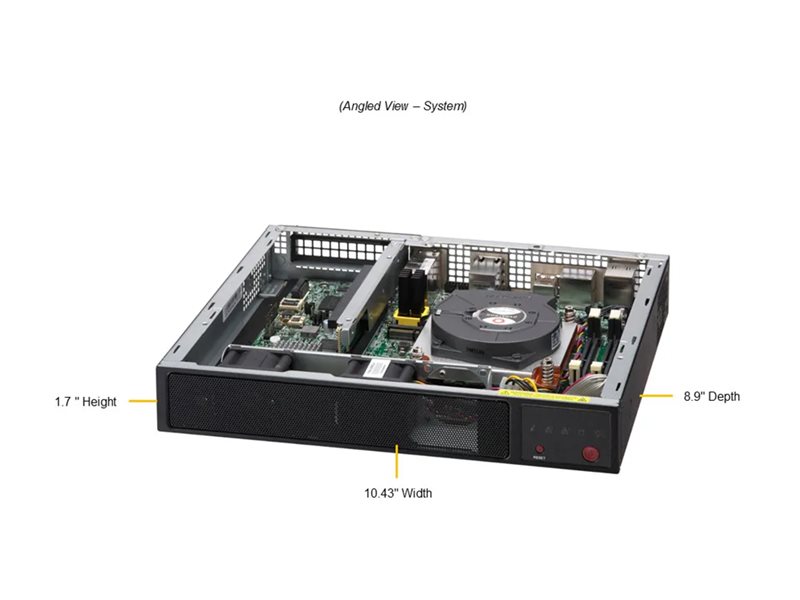

| Dimensions (WxDxH) | 10.4 in x 8.9 in x 1.7 in |
| Weight | 3.53 lbs |
| General | |
| Type | Server |
| Product Form Factor | Embedded computer |
| Built-in Devices | Air cooling solution, 2 x 40 mm fan, LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2280 (PCIe 4.0 x2 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - low-profile ¦ 1 (total) / 1 (free) x M.2 Type B - 3052 (PCIe 4.0 x2 mode) |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 (2 rear) ¦ 2 x LAN (2.5Gigabit Ethernet) - RJ-45 (2 rear) ¦ 4 x USB 3.2 Gen 2 (4 rear) ¦ 1 x VGA (1 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x DisplayPort (1 rear) |
| RAM | |
| Installed Size | 32 GB (installed) / 96 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 2 x 2.5 Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I226-LM / 2 x Intel X550 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | ACPI support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (47 - 63 Hz) |
| Power Provided | 180 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Graphics - up to 8 TOPS |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 960 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 10.4 in |
| Depth | 8.9 in |
| Height | 1.7 in |
| Weight | 3.53 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15 in |
| Shipping Depth | 10.9 in |
| Shipping Height | 5.6 in |
| Shipping Weight | 7.5 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 2) 245 |
| Clock Speed | 3.5 GHz (P-core) / 3 GHz (E-core) |
| Max Turbo Speed | 5.1 GHz (P-core) / 4.5 GHz (E-core) |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache, Intel Deep Learning Boost (DL Boost) |
| CPU Socket | LGA1851 Socket |
| Chipset Type | Intel W880 |
| Motherboard Name | Supermicro X14SAV-TLN4F |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 29 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
