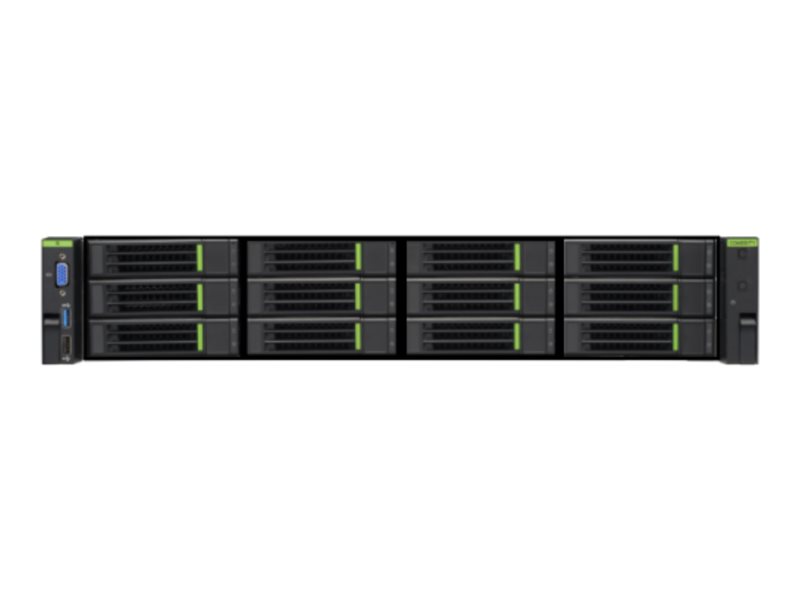

Hard drive array - 120 TB - 240 bays (SAS-3) - HDD 4 TB x 30 - rack-mountable - 2U
| Main Specifications | |
|---|---|
| Product Description | Cohesity NetBackup Flex 5372 - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Total Array Capacity | 120 TB |
| Installed Devices / Modules Qty | 240 (installed) / 240 (max) |
| Supported Drives | SAS-3 |
| Built-in Devices | LED panel, 3 x 1.92 TB SSD OS Drive, 4 x fans |
| Storage Controller | RAID (SAS 12Gb/s) |
| Storage Controller Quantity | 2 |
| Hard Drive | 30 x 4 TB HDD SAS 12Gb/s |
| Power | AC 90-140/180-264 V 47 - 63 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 19 in x 31.4 in x 3.5 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Expansion / Connectivity | |
| Interfaces | 4 x Ethernet 10Gb (rear) - RJ-45 ¦ 1 x VGA (rear) - 15 pin HD D-Sub (HD-15) ¦ 1 x IPMI (rear) ¦ 2 x USB 3.2 Gen 1 (rear) - 9 pin USB Type A ¦ 1 x serial (rear) - RJ-45 ¦ 1 x VGA (front) - 15 pin HD D-Sub (HD-15) ¦ 1 x USB 2.0 (front) - 4 pin USB Type A ¦ 1 x USB 3.0 (front) - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - software application support - 90 days |
| Miscellaneous | |
| Features | Intel VROC technology |
| Processor | |
| CPU | 2 x Intel Xeon Gold 6530 2.1 GHz |
| RAM | |
| Installed Size | 768 GB |
| Storage | |
| Total Array Capacity | 120 TB |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 90-140/180-264 V 47 - 63 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Sound Emission | 70 dBA |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | HDD |
| Capacity | 30 x 4 TB |
| Interface Type | SAS 12Gb/s |
| Spindle Speed | 7200 rpm |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 31.4 in |
| Height | 3.5 in |
| Chassis | |
| Built-in Devices | LED panel, 3 x 1.92 TB SSD OS Drive, 4 x fans |
| Installed Devices / Modules Qty | 240 |
| Supported Devices / Modules Qty | 240 |
| Supported Drives | SAS-3 |
