KVM console - USB - 18.5" - rack-mountable - 1366 x 768 @ 60 Hz - 250 cd/m² - 1000:1 - 5 ms - HDMI - 1U
| Main Specifications | |
|---|---|
| Product Description | ATEN CL3716 - KVM console - 18.5" |
| Device Type | KVM console - 18.5" |
| KVM Switch | USB |
| Features | Touchpad |
| Native Resolution | 1366 x 768 at 60 Hz |
| Pixel Pitch | 0.3 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 5 ms |
| Color Support | 16.7 million colors |
| Input Connectors | HDMI |
| Voltage | (50/60 Hz) |
| Dimensions (WxDxH) | 24.8 in x 18.9 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 23.35 lbs |
| Compliant Standards | RoHS, FCC, WEEE, UKCA |
| General | |
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 18.5" |
| Native Resolution | 1366 x 768 at 60 Hz |
| Pixel Pitch | 0.3 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Response Time | 5 ms |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 160 |
| Backlight Technology | LED backlight |
| Dimensions (WxDxH) | 24.8 in x 18.9 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 23.35 lbs |
| Miscellaneous | |
| Features | LCD display, lockable, firmware upgradable, hot plug |
| Included Accessories | Firmware upgrade cable |
| Cables Included | 1 x keyboard / mouse / video cable - 6 ft |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS, FCC, WEEE, UKCA |
| Power | |
| Input Voltage | (50/60 Hz) |
| Power Consumption (Typical) | 30.1 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Connectivity | |

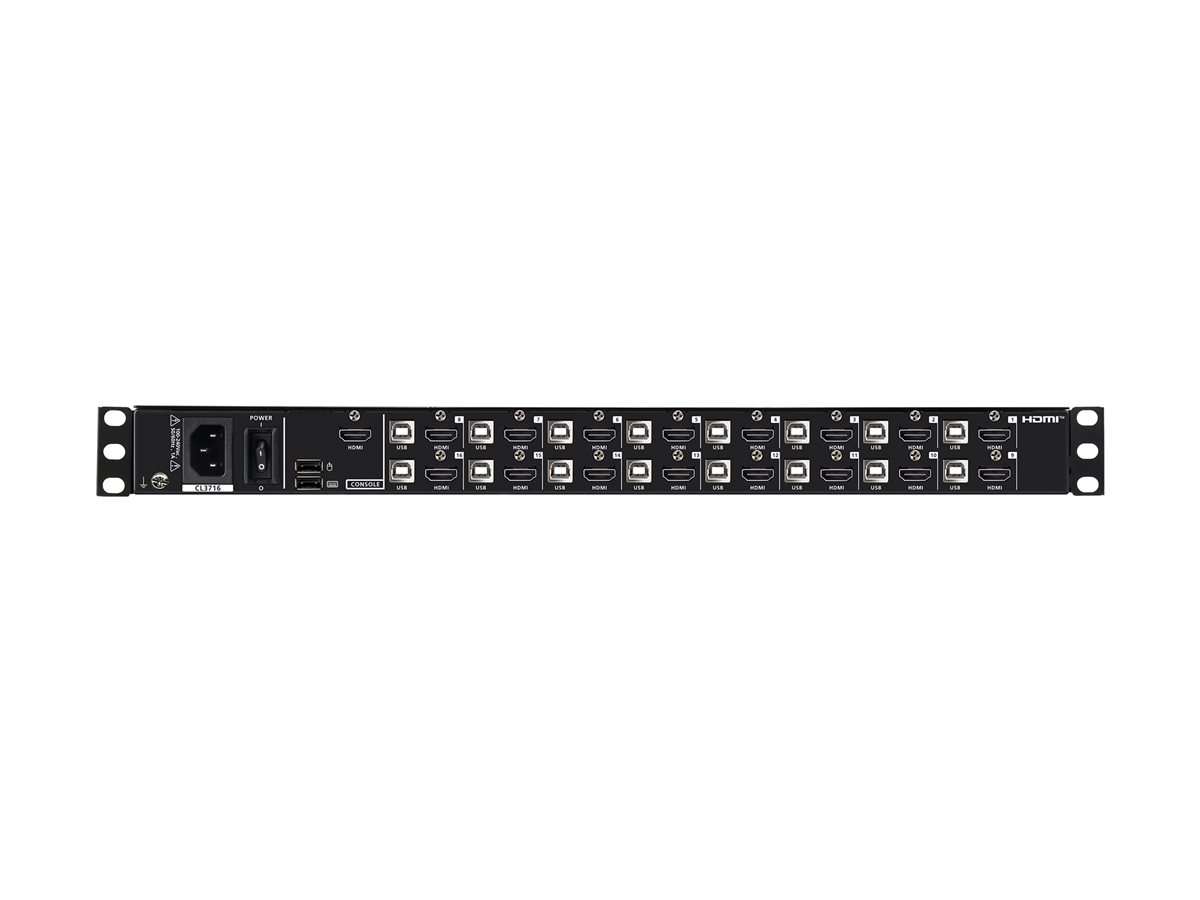

| Interfaces | 2 x USB (Type A) ¦ 16 x HDMI ¦ 16 x USB (Type B) ¦ HDMI output ¦ Audio line-in/out |
| KVM | |
| Keyboard / Mouse Interface | USB |
| Input | |
| Type | Touchpad |
