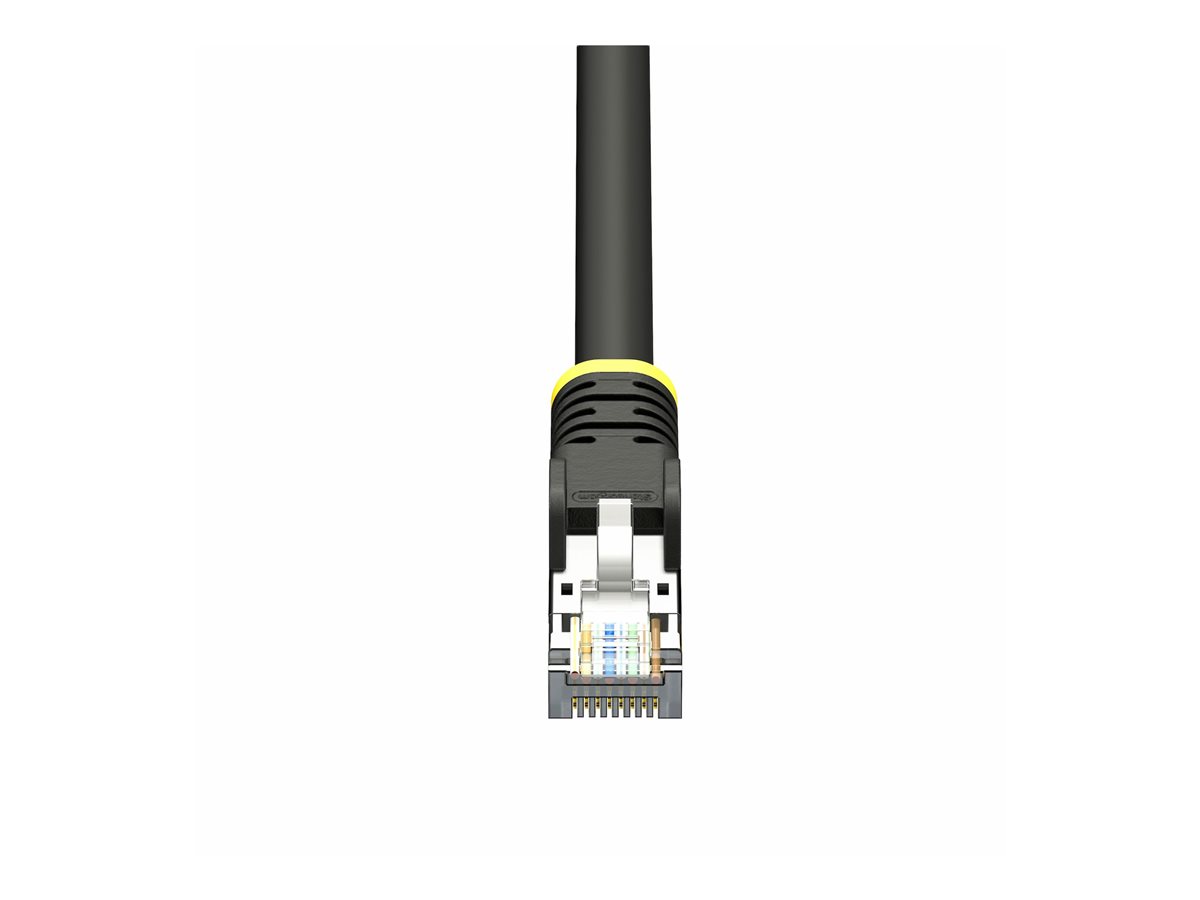

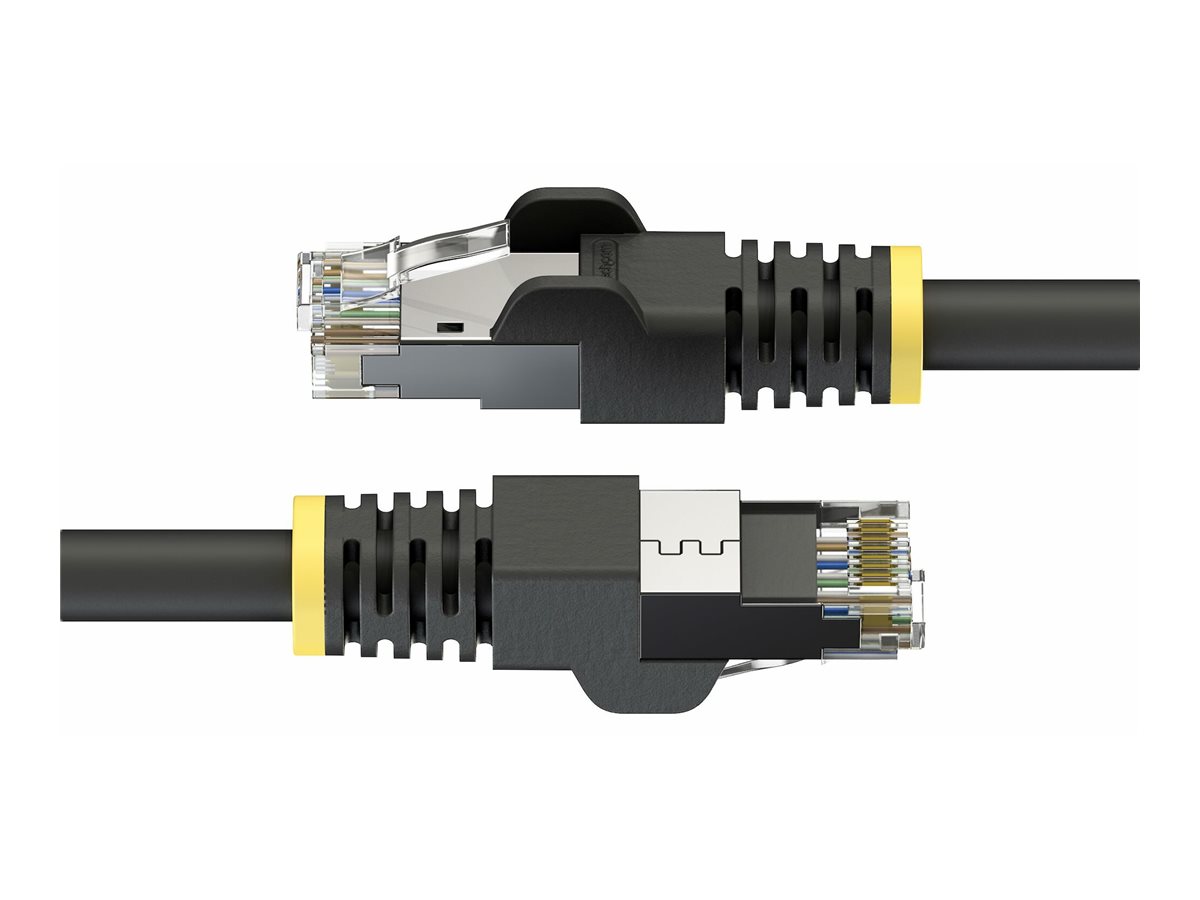

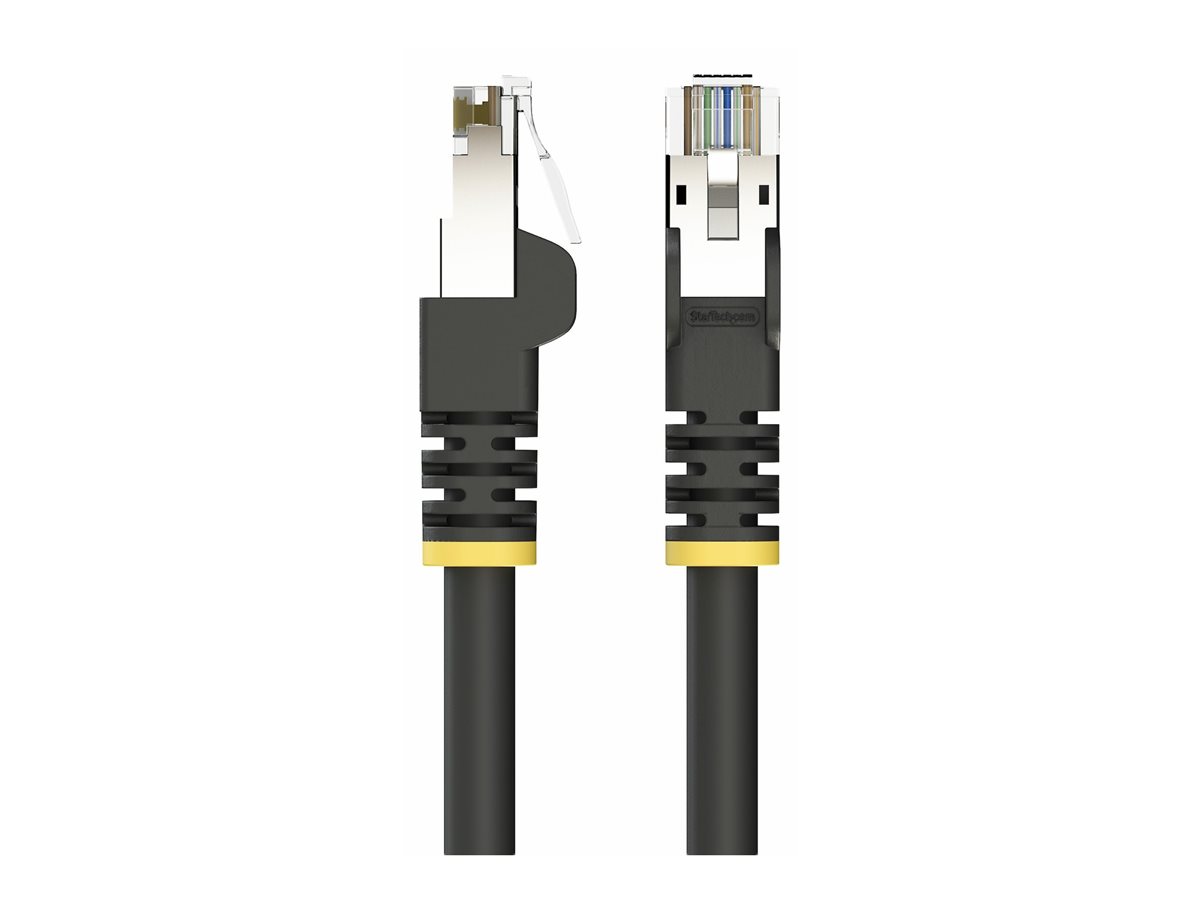

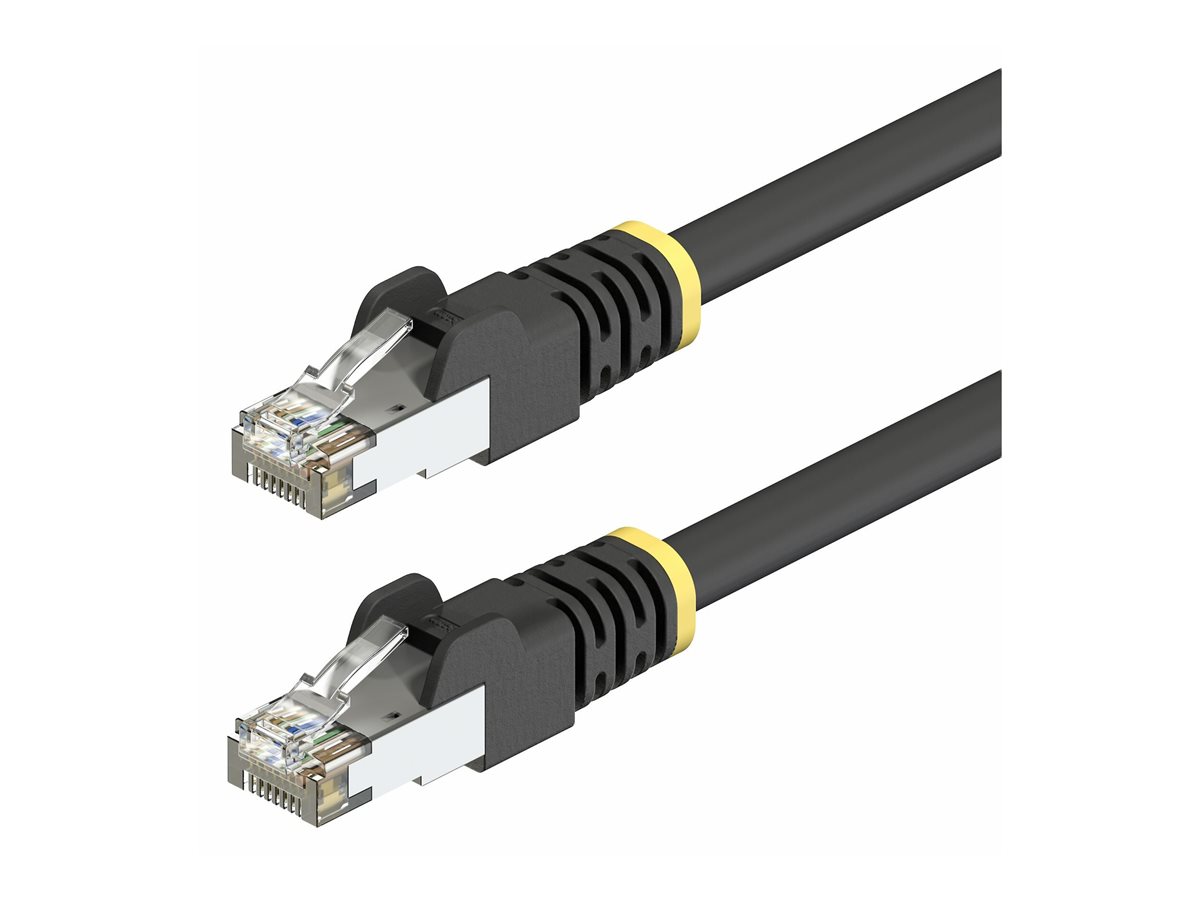

Patch cable - RJ-45 (M) to RJ-45 (M) - 0.3 in - S/FTP - CAT 5/5e/6/6a - IEEE 802.3bt - outdoor, snagless, UV protection - black
| Main Specifications | |
|---|---|
| Product Description | Startech patch cable - black |
| Type | Patch cable - CAT 5/5e/6/6a - IEEE 802.3bt |
| Technology | S/FTP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminum mylar foil with braid |
| Wires per Cable | 8 wires |
| Features | Outdoor, snagless, UV protection, 50 micron gold-plated connectors, low insertion loss, up to 10 Gbps, EMI protection, bare copper conductors, 100W PoE++ support |
| Cable Length | 75 ft |
| Diameter | 0.3 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Black |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 5/5e/6/6a - IEEE 802.3bt |
| Technology | S/FTP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminum mylar foil with braid |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 23 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Outdoor, snagless, UV protection, 50 micron gold-plated connectors, low insertion loss, up to 10 Gbps, EMI protection, bare copper conductors, 100W PoE++ support |
| Cable Length | 75 ft |
| Diameter | 0.3 in |
| Weight | 2.72 lbs |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | CMX, ANSI/TIA-568.2-D, 802.3bt type 4, PoE++, TIA/EIA T568B, WEEE, RoHS - up to 500 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.2 in |
| Shipping Depth | 10.2 in |
| Shipping Height | 2.6 in |
| Shipping Weight | 3.53 lbs |
