NAS server - 12 bays - SATA 6Gb/s - RAID JBOD, 0, 1, 5, 6, 10, 50, 60 - RAM 16 GB - 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support
| Main Specifications | |
|---|---|

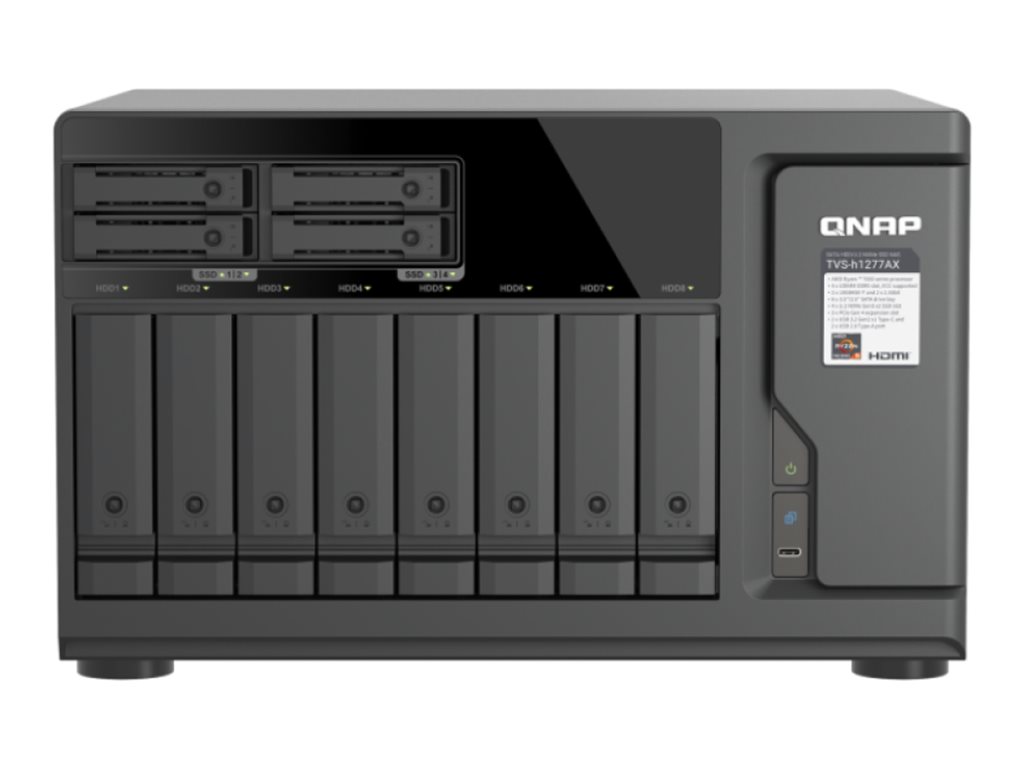

| Product Description | QNAP TVS-h1277AX - NAS server |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Dimensions (WxDxH) | 14.4 in x 12.6 in x 8.9 in |
| Weight | 24.21 lbs () |
| Localization | United States |
| Processor | 1 x AMD Ryzen 5 7000 (6-core) |
| Storage Controller | RAID SATA 6Gb/s RAID JBOD, 0, 1, 5, 6, 10, 50, 60 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| Performance | Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum volume size: 250 TB ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 128 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Virtual hosts: 32 ¦ Maximum number of version control: 64 |
| RAM | 16 GB |
| Power | AC 100-240 V |
| Storage Operating System | QNAP QuTS hero h5.2.9 / QTS 5.2.9 |
| System Requirements | Apple MacOS X 10.10 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11, IBM AIX 7, Oracle Solaris 10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Microsoft Windows Server 2022, Microsoft Windows Server 2025 |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Width | 14.4 in |
| Depth | 12.6 in |
| Height | 8.9 in |
| Weight | 24.21 lbs () |
| Built-in Devices | Buzzer, 3 x 80 mm fans, 2 x 60 mm CPU fans |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 4.0 x8 ¦ 2 (total) / 2 (free) x PCI Express 4.0 x4 |
| Interfaces | 2 x 2.5 Gigabit Ethernet ¦ 2 x Ethernet 10Gb ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 - Type C ¦ 1 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| Network / Transport Protocol | IPv4, IPv6, FTP, Telnet, TFTP, PPTP, L2TP, IPSec, OpenVPN, QBelt, QuFTP |
| Remote Management Protocol | SNMP 2, SNMP 3, RADIUS |
| Network Services Compatibility | Microsoft CIFS, Apple File Protocol (AFP), Server Message Block (SMB), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Web-based Distributed Authoring and Versioning (WebDAV) |
| Performance | Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum volume size: 250 TB ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 128 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Virtual hosts: 32 ¦ Maximum number of version control: 64 |
| Features | Floating point unit, SSD cache acceleration support, GPU pass-through, WOL, Jumbo Frames support, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, fibre channel service, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, MPIO, online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD Cache RAID, SSD profiling tool, External Device Management, MTP, FXP support, file station, Object Storage, domain security, Domain Controller, shared folder permission, advanced folder permission, Windows ACL, group quota, folder quota, home folder, Resource Monitor, Network Recycle Bin, Smart Fan, schedule on/off, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Qsync, HybridMount, Hyper Data Protector, Qsirch, QuMagie, HD Station, LDAP server, RADIUS support, SQL Server, DA Driver Analyzer, QuWAN, QmailAgent, Boxafe |
| Encryption Algorithm | AES-NI |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Provided | 500 watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QuTS hero h5.2.9 / QTS 5.2.9 |
| OS Required | Apple MacOS X 10.10 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11, IBM AIX 7, Oracle Solaris 10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Microsoft Windows Server 2022, Microsoft Windows Server 2025 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen 5 7000 |
| Number of Cores | 6-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 5.1 GHz |
| RAM | 16 GB (installed) / 192 GB (supported) - DDR5 |
| Flash Memory Installed | 5 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 26.72 lbs |
