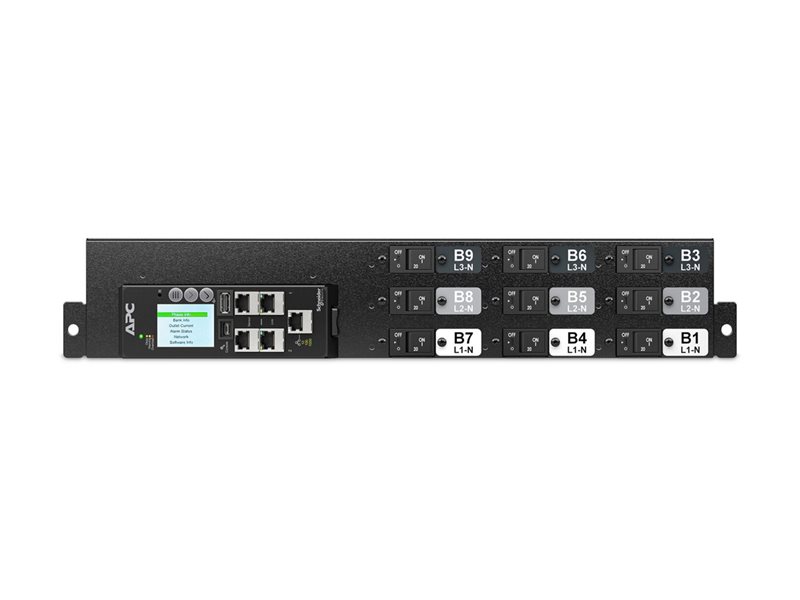

Power distribution unit (rack-mountable) - metered, 415 V - AC 415 V - 41400 VA - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 60A - output connectors: 18 (9 x IEC 60320 C13/C15, 9 x IEC 60320 C13/C15/C19/C21) - 2U - 10 ft cord - black - for P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
| Main Specifications | |
|---|---|
| Product Description | APC NetShelter Rack PDU Advanced - power distribution unit - metered, 415 V - 41400 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 2U |
| Weight | 34.61 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 415 V |
| Output Voltage | AC 415 V |
| Power Capacity | 41400 VA |
| Input Connectors | 1 x power IEC 60309 60A |
| Output connectors | 9 x power IEC 60320 C13/C15/C19/C21 - 415 V 60 A ¦ 9 x power IEC 60320 C13/C15 - 415 V 60 A |
| Networking | Ethernet 10/100/1000 |
| Color | Black |
| Dimensions (WxDxH) | 17.4 in x 29.5 in x 3.3 in |
| Manufacturer Warranty | 36-month warranty |
| Designed For | P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x PDU link - RJ-45 ¦ 2 x sensor |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 36 months |
| Miscellaneous | |
| Cables Included | AC input cable 10 ft |
| Features | Switched, horizontal orientation |
| Compliant Standards | UL, CSA, UKCA, PSE Mark, KC, China RoHS, RCM, CMIM, IP44 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% RH |
| Power Device | |
| Input Voltage | AC 415 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 60A |
| Power Output Connectors Details | 9 x power IEC 60320 C13/C15/C19/C21 - 415 V 60 A ¦ 9 x power IEC 60320 C13/C15 - 415 V 60 A |
| Output Voltage | AC 415 V |
| Max Electric Current | 60 A |
| Power Capacity | 41400 VA |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 29.5 in |
| Height | 3.3 in |
| Weight | 34.61 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.6 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 37 in |
| Shipping Weight | 48.94 lbs |
| Compatibility Information | |
| Designed For | P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP |
