Remote control device - Bluetooth - LTE, Bluetooth - LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B34/B38/B39/B40/B41
| Main Specifications | |
|---|---|

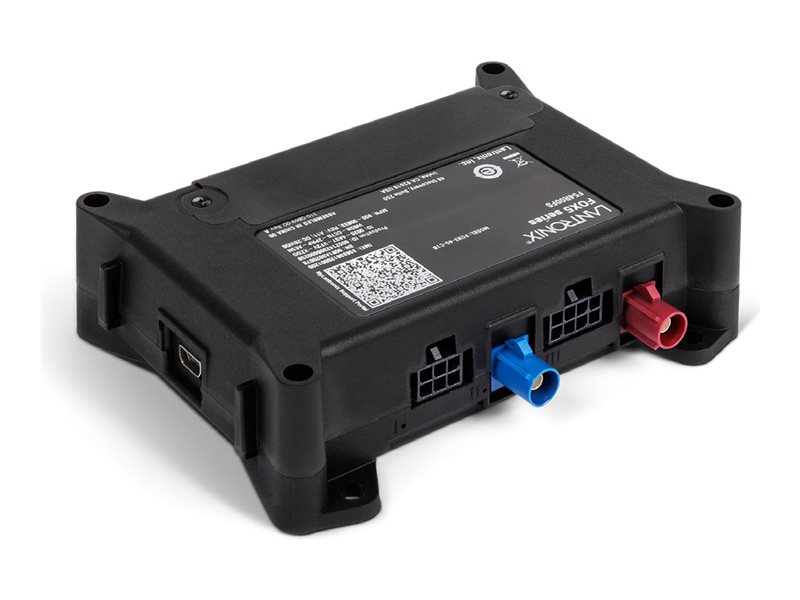

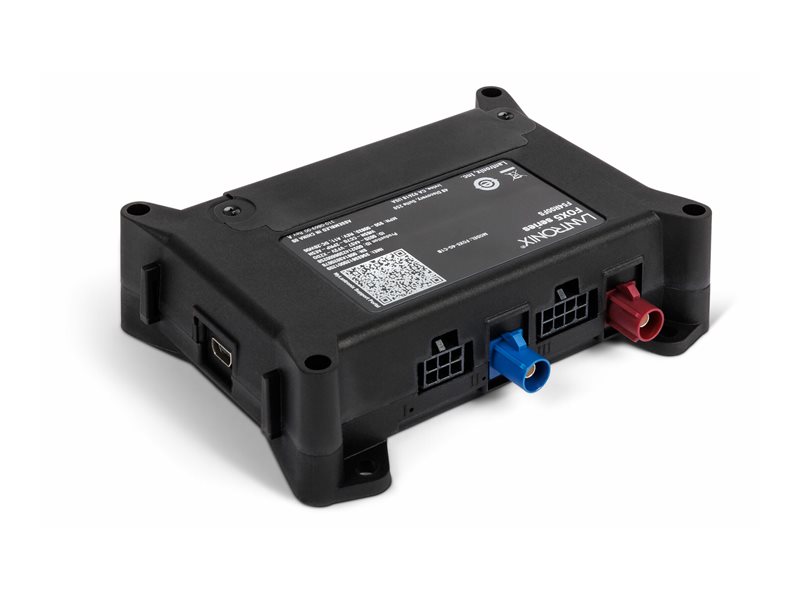

| Product Description | Lantronix FOX5 Series F54R00FS - remote control device - LTE, Bluetooth |
| Device Type | Remote control device |
| Form Factor | External |
| RAM | 32 MB |
| Flash Memory | 64 MB |
| Data Link Protocol | Bluetooth 5.4 |
| Cellular Protocol | LTE |
| Cellular Band | LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B34/B38/B39/B40/B41 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Remote control device |
| Built-in Devices | Accelerometer, GPS / GLONASS |
| Expansion / Connectivity | |
| Expansion Slots | 2 Nano SIM card |
| Interfaces | 3 x digital input/output ¦ 2 x serial ¦ 1 x Dallas 1-wire ¦ 1 x CAN ¦ 1 x USB 2.0 ¦ 1 x mini-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | J1939, UKCA, UK PSTI, CB, e-mark certified, TELEC |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | Bluetooth 5.4 |
| Remote Management Protocol | MQTT, Modbus, TCP/IP, UDP, HTTP, SMTP |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 185 °F |
| Communications | |
| Cellular Protocol | LTE |
| Cellular Band | LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B34/B38/B39/B40/B41 |
| Processor / Memory / Storage | |
| RAM | 32 MB |
| Flash Memory | 64 MB |
