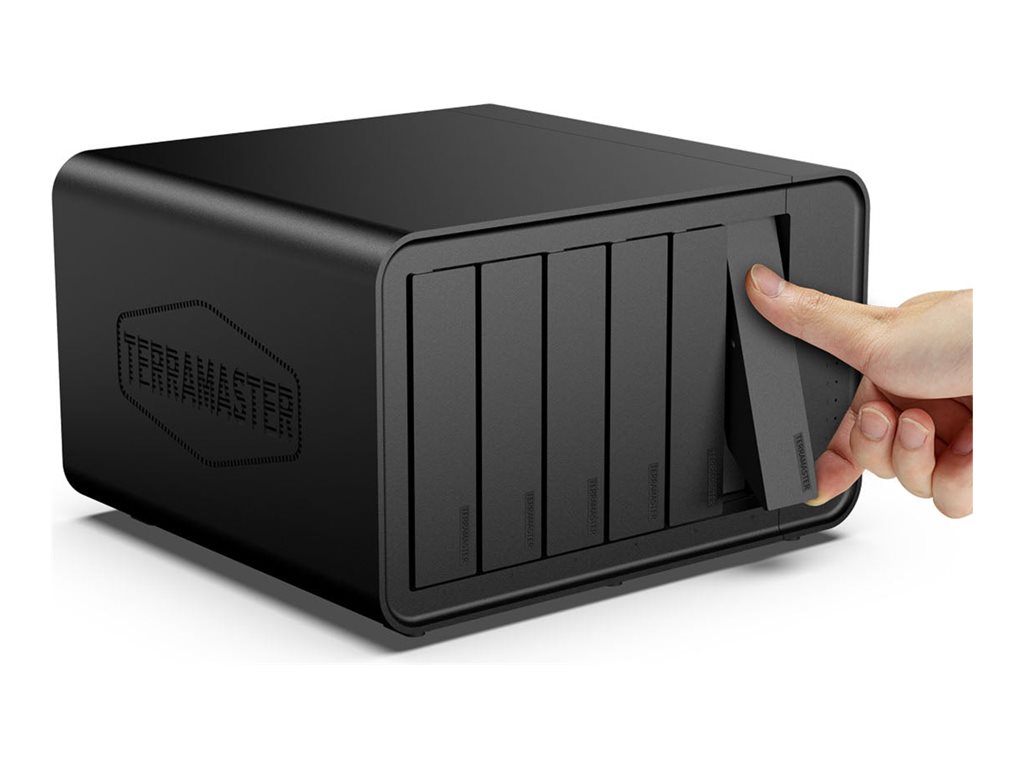

Hard drive array - 6 bays (SATA-600) - USB 3.2 (external)
| Main Specifications | |
|---|---|
| Product Description | TerraMaster - hard drive array |
| Device Type | Hard drive array |
| Max Supported Capacity | 132 TB |
| Interface | USB 3.2 |
| Installed Devices / Modules Qty | 0 (installed) / 6 (max) |
| Supported Drives | SATA-600 |
| Storage Controller | RAID (SATA 6Gb/s) - RAID JBOD, 0, 1, 5, 6, 10 |
| OS Required | Apple MacOS, Microsoft Windows, Linux |
| Power | AC 100-240 V 50/60 Hz |
| Dimensions (WxDxH) | 9.4 in x 8.7 in x 6.1 in |
| Weight | 5.95 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Hard drive array |
| Expansion / Connectivity | |
| Expansion Bays | 6 (total) / 6 (free) x hot-swap - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) - M.2 2280 |
| Interfaces | 1 x USB 3.2 - 24 pin USB-C ¦ 1 x USB 3.2 - Type A ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | H.264 encoding, H.265 encoding, IPv4 support, IPv6 support, VPN support, VPN Server, 92mm cooling fan, hardware encryption, RAID migration, SSD cache, hot spare support, SSD trim, S.M.A.R.T. support, Seagate IHM, shared folder snapshot, LUN snapshot, SMB file protocol, AFP file protocol, NFS file protocol, FTP file protocol, SFTP file protocol, WebDAV file protocol, Windows Access Control List (ACL) integration, NFS Kerberos authentication, 2048 local users (maximum), 512 local groups (maximum), 512 shared folders (maximum), 8 shared folders syncing tasks, Rsync backup, centralized backup, Snapshot function, USB backup, cloud sync, time machine backup, file system snapshot, TFM backup, link aggregation, proxy server, proxy client, LDAP support, firewall protection, account management, wake on LAN, UPS support, control panel, resource monitor, syslog |
| Cables Included | 1 x power cable ¦ 1 x RJ-45 cable |
| Compliant Standards | RoHS, WEEE, FCC, CCC, KC |
| Included Accessories | Screws |
| Processor | |
| CPU | 1 x Intel N95 3.4 GHz |
| RAM | |
| Installed Size | 8 GB |
| Storage | |
| Max Supported Capacity | 132 TB |
| HDD Array External Interface | USB 3.2 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Power Consumption Operational | 43 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 22 dBA |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| System Requirements | |
| OS Required | Apple MacOS, Microsoft Windows, Linux |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 8.7 in |
| Height | 6.1 in |
| Weight | 5.95 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.5 in |
| Shipping Depth | 11.1 in |
| Shipping Height | 7.4 in |
| Shipping Weight | 9.26 lbs |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 6 |
| Supported Drives | SATA-600 |
