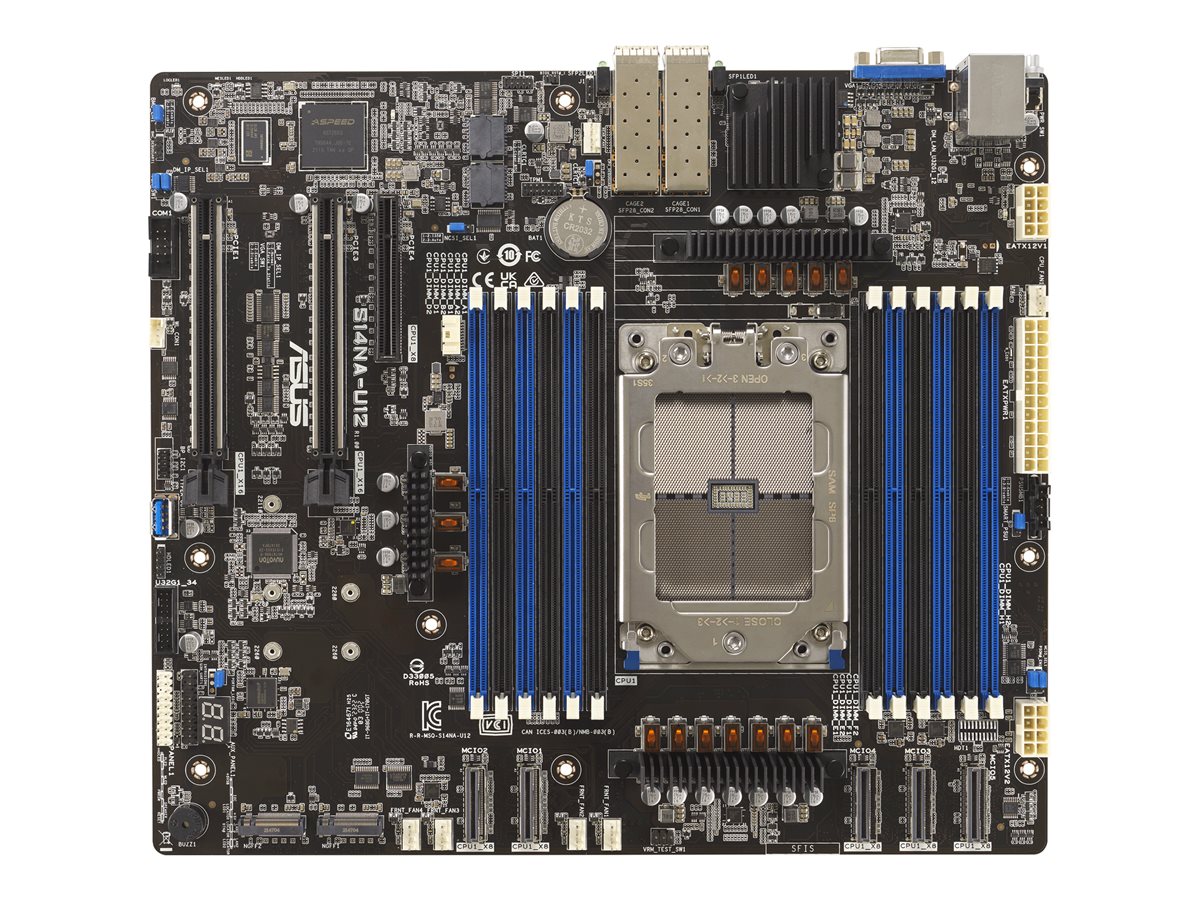

Motherboard - SSI CEB - Socket SP6 - USB 3.2 Gen 1 - 2 x 2.5 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|
| Product Description | ASUS S14NA-U12 - motherboard - SSI CEB - Socket SP6 |
| Product Type | Motherboard - SSI CEB |
| Processor Socket | 1 x Socket SP6 |
| Compatible Processors | EPYC 8004 series |
| Max RAM Size | 3 TB |
| RAM Supported | 12 DIMM slots - DDR5 registered |
| Storage Ports | 2 x M.2 |
| USB / FireWire Ports | 3 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2600 |
| Dedicated Video Memory | 64 MB |
| LAN | 2 x 2.5 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - SSI CEB |
| Processor Socket | Socket SP6 |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC 8004 series |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 12 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x8 ¦ 1 x M.2 socket (22110 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 / PCIe 5.0 -connectors: 2 x M.2 |
| Interfaces | 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 1 x management ¦ 2 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 2 x USB 3.2 Gen 2 - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x VGA - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Software Included | ASUS Control Center |
| Width | 12 in |
| Depth | 10.5 in |
| Features | |
| Hardware Features | ASMB11-iKVM |
| LAN | |
| Network Interfaces | 2 x 2.5 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Dedicated Video Memory | 64 MB |
| Supported RAM | |
| Max Size | 3 TB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz, 4000 MHz, 3600 MHz |
| Registered or Buffered | Registered |
