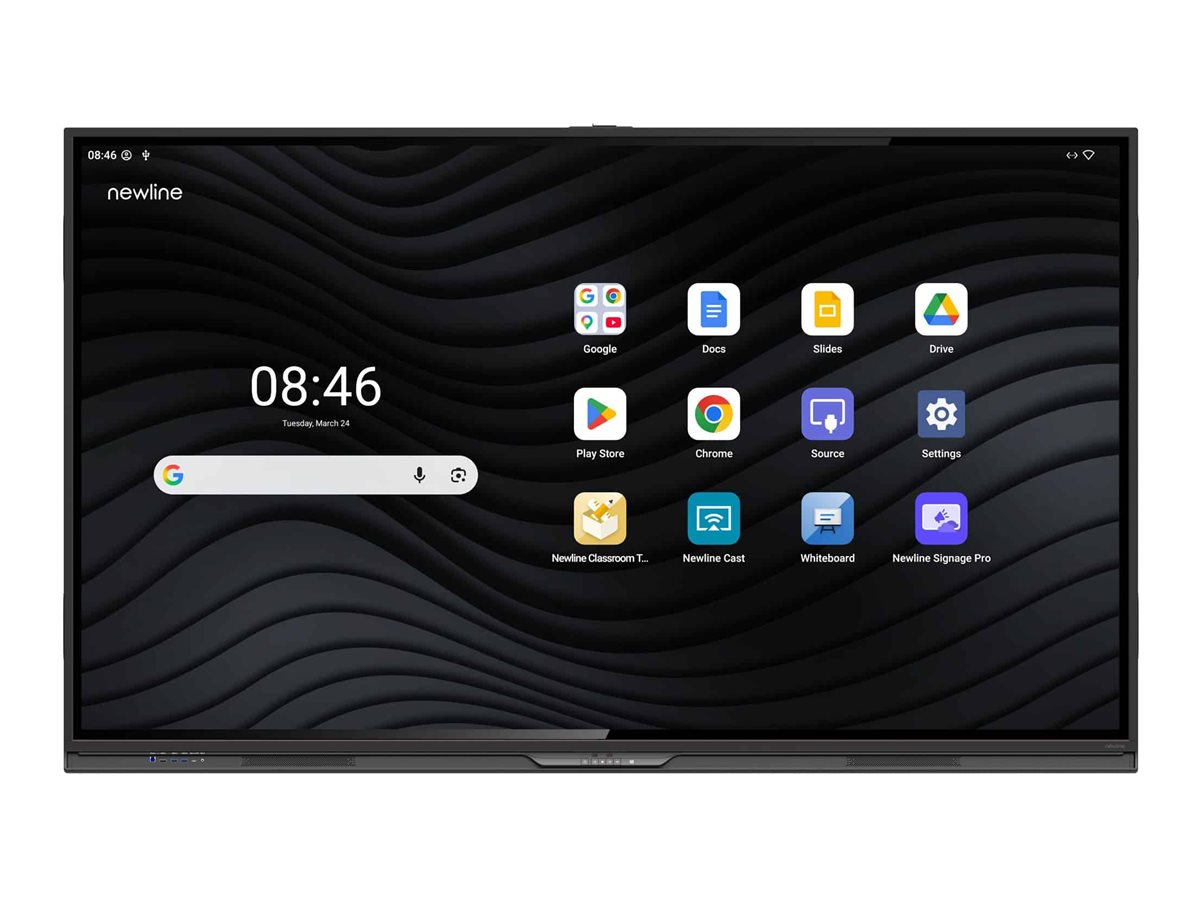

55" Diagonal Class Q ultra Series LED-backlit LCD display - education / business - with touchscreen (multi touch) - Android - 4K UHD (2160p) 3840 x 2160 - Direct LED
| Main Specifications | |
|---|---|
| Product Description | Newline Q Ultra TT-5526QULT Q ultra Series - 55" LED-backlit LCD display - 4K - for education / business |
| Product Type | LED-backlit LCD flat panel display with touchscreen (multi touch) |
| Diagonal Class | 55" |
| Commercial Use | Yes - education / business |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, Bluetooth |
| PC Interface | DisplayPort |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Speaker System | 2 speakers |
| Storage Capacity | 128 GB |
| USB | Yes, 12 ports |
| Included Accessories | Remote control |
| Voltage | AC 110-240 V |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 50.4 in x 4.3 in x 31.5 in |
| Weight | 61.73 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 750 watt |
| Diagonal Class | 55" |
| Commercial Use | Yes - education / business |
| Combined With | Touchscreen (multi touch) |
| Series | Q ultra Series |
| Platform | Android |
| Operating System | Android OS 16 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort |
| Protection | Tempered glass protection |
| Width | 50.4 in |
| Depth | 4.3 in |
| Height | 31.5 in |
| Weight | 61.73 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Google EDLA |
| Power | |
| Input Voltage | AC 110-240 V |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Display | |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare, anti-fingerprint, antimicrobial coating, 15-25% haze, 4 mm glass, 9H Hard |
| Dynamic Contrast Ratio | 5000:1 |
| Brightness | 550 cd/m² |
| Viewing Angle | 178° |
| Touchpoints Qty | 50 |
| Response Time | 6.5 ms |
| Backlight Life | 50,000 hour(s) |
| Additional Features | Infrared touch technology, zero bonding technology, 8-bit + 2-bit FRC |
| Connections | |
| Connector Type | USB-C with 65W Power Delivery - front ¦ HDMI input - front ¦ Touch - front ¦ 2 x USB 3.2 - front ¦ Microphone - front ¦ 2 x HDMI input - rear ¦ DisplayPort - rear ¦ 3 x touch - rear ¦ USB 3.0 - rear ¦ 3 x USB 3.2 - rear ¦ HDMI output - rear ¦ RS-232 - rear ¦ LAN input - rear ¦ LAN output - rear ¦ SPDIF output - rear ¦ Audio line-out - rear |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 40 watt |
| Speakers | 2 x main channel speaker - 20 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 55.7 in |
| Depth (Shipping) | 7.3 in |
| Height (Shipping) | 36 in |
| Weight (Shipping) | 78.26 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, Bluetooth |
| Wi-Fi Protocol | 802.11ax |
| Bluetooth Version | Bluetooth 5.2 |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 12 |
| Configuration | 16 GB - 128 GB |
