Router 10GbE - WAN ports: 4 - for P/N: ACS-1111-DRM=, C8151-C-G2-RM-19, C8211-G2-RM-19=, C8220-G2-RM-19=, C84G2-4PT-KIT
| Main Specifications | |
|---|---|

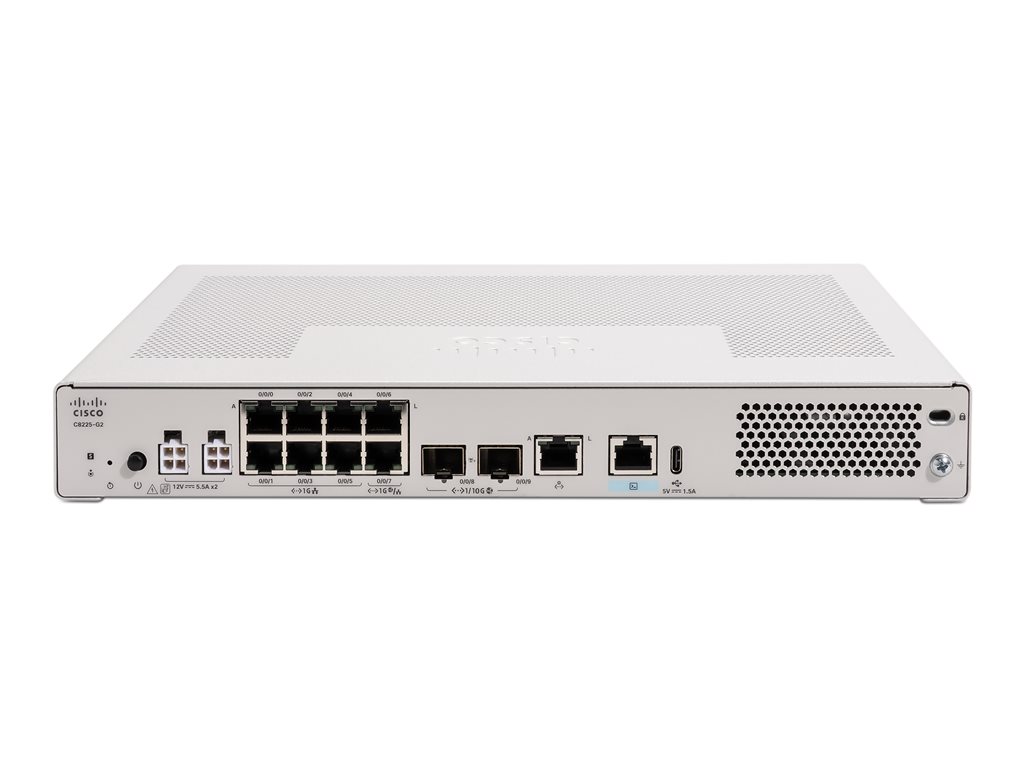

| Product Description | Cisco C8225-G2 - router - desktop |
| Device Type | Router |
| Enclosure Type | Desktop |
| WAN Ports Qty | 4 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 19 Gbps ¦ VPN throughput (512-bit IPSec): 5 Gbps ¦ SD-WAN throughput: 4 Gbps ¦ Threat protection (EMIX): 2.4 Gbps |
| Capacity | IPv4 routes: 1500000 ¦ IPv6 routes: 1500000 ¦ IPv4 ACL entries: 3000 ¦ Access Control Entries (ACEs) per system (IPv4): 15000 ¦ IPSec tunnels: 700 ¦ NAT sessions: 1500000 ¦ VRF instances: 4000 |
| Features | Reset button, security slot (Kensington security lock compatible), Blue Beacon LED, DPI, QoS, SD-WAN support |
| Power | AC 85-264 V |
| Dimensions (WxDxH) | 12.7 in x 8.5 in x 1.6 in |
| Weight | 5 lbs |
| System Requirements | Cisco IOS XE 26.1.2 or later |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: ACS-1111-DRM=, C8130-G2-RM-19=, C8140-G2-RM-19=, C8151-C-G2-RM-19, C8151-G2-RM-19, C8200-WM-1R, C8211-G2-RM-19=, C8220-G2-RM-19=, C8231-G2-RM-19, C8235-G2-RM-19, C8300-RM-19-F, C8300-RM-23-1R, C8300-RM-4PT-1R, C8300-WM-1R, C84G2-4PT-KIT, C84G2-ACCKIT-19, C85G2-4PT-KIT, C85G2-ACCKIT-19 |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 19 Gbps ¦ VPN throughput (512-bit IPSec): 5 Gbps ¦ SD-WAN throughput: 4 Gbps ¦ Threat protection (EMIX): 2.4 Gbps |
| Capacity | IPv4 routes: 1500000 ¦ IPv6 routes: 1500000 ¦ IPv4 ACL entries: 3000 ¦ Access Control Entries (ACEs) per system (IPv4): 15000 ¦ IPSec tunnels: 700 ¦ NAT sessions: 1500000 ¦ VRF instances: 4000 |
| Features | Reset button, security slot (Kensington security lock compatible), Blue Beacon LED, DPI, QoS, SD-WAN support |
| Compliant Standards | REACH, RoHS, WEEE, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, EN 60950-1, IEC 60950-1, IEC 62368-1, EN 62368-1, AS/NZS 62368.1, AS/NZS 60950-1, IEC/EN 60825, FDA, 47 CFR Part 15 Class A, AS/NZS CISPR 32 Class A, CISPR 32 Class A, EN 55032 Class A, VCCI-CISPR 32 Class A, CNS 13438 Class A, KS 32 Class A, EN IEC 61000-3-2, IEC/EN 61000-3-3, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, KS C 9835, EN 300 386, EN 55035, EN 61000-6-1, ICES-003 Class A, EN55024 |
| RAM | 16 GB |
| Hard Drive | 16 GB |
| Status Indicators | Status, beaconing |
| Expansion / Connectivity | |
| Interfaces | WAN: 2 x 10Gb Ethernet - SFP/SFP+ ¦ WAN: 2 x 1Gb Ethernet - RJ-45 ¦ Flex Ports: 2 x 1Gb Ethernet ¦ LAN: 4 x 1Gb Ethernet - RJ-45 ¦ USB 3.0: 1 x Type C ¦ Management: 1 x RJ-45 ¦ Console: 1 x RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - return to factory - 2 years |
| Power | |
| Power Device | External power adapter - 66 watt |
| Power Redundancy | Optional |
| Installed Qty | 1 (installed) / 2 (max) |
| Voltage Required | AC 85-264 V |
| Power Consumption Operational | 21 watt |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 26.1.2 or later |
| Software Requirements | Cisco Catalyst SD-WAN Manager 26.1.2 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 12.7 in |
| Depth | 8.5 in |
| Height | 1.6 in |
| Weight | 5 lbs |
| Compatibility Information | |
| Designed For | P/N: ACS-1111-DRM=, C8130-G2-RM-19=, C8140-G2-RM-19=, C8151-C-G2-RM-19, C8151-G2-RM-19, C8200-WM-1R, C8211-G2-RM-19=, C8220-G2-RM-19=, C8231-G2-RM-19, C8235-G2-RM-19, C8300-RM-19-1R, C8300-RM-19-F, C8300-RM-23-1R, C8300-RM-4PT-1R, C8300-WM-1R, C84G2-4PT-KIT, C84G2-ACCKIT-19, C8500-ACCKIT3R-19, C85G2-4PT-KIT, C85G2-ACCKIT-19 |
